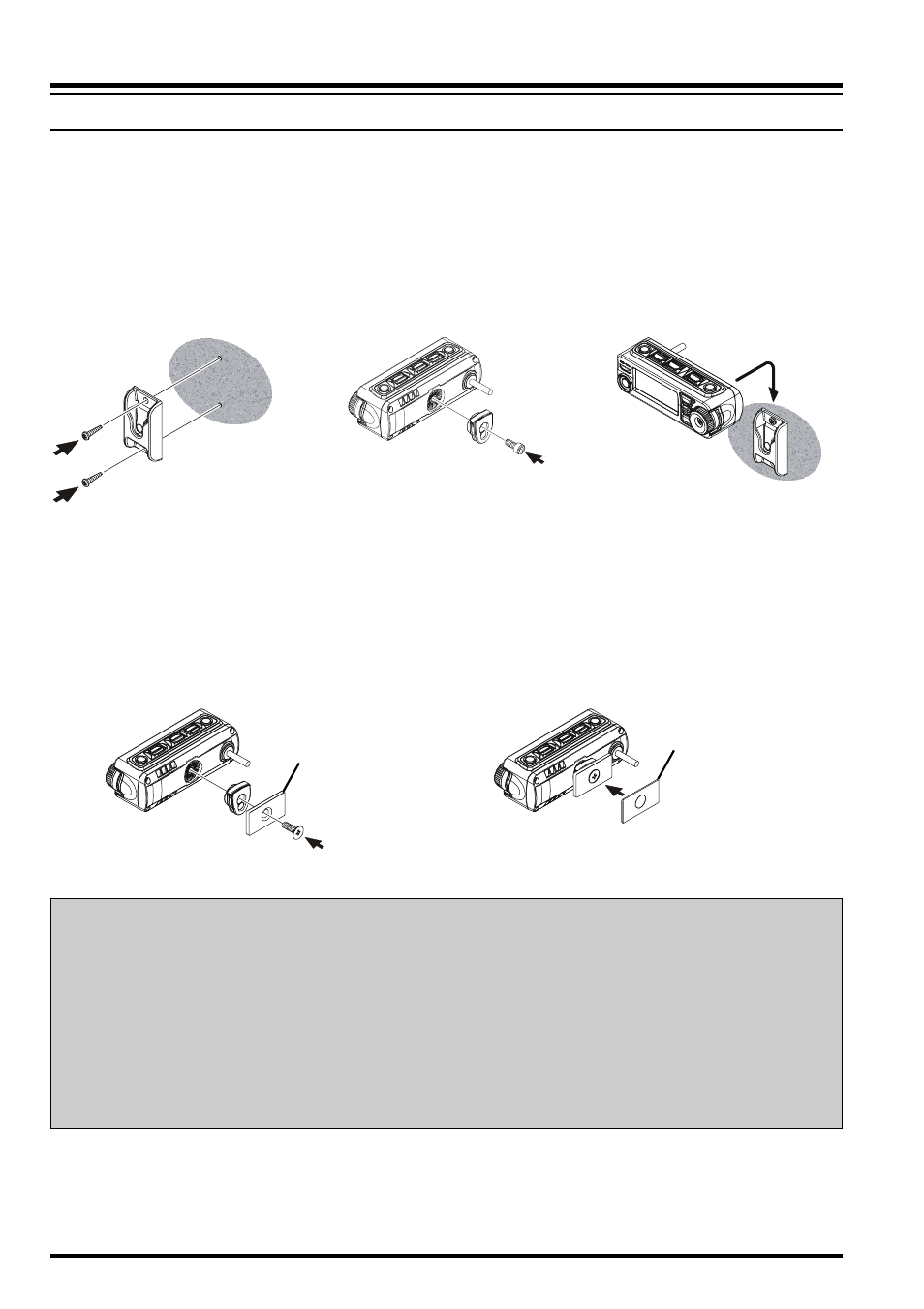

Front Panel Installation
Use the supplied Front Panel Bracket;
1. Mount the supplied
Front Panel Bracket to
the any positions using
the supplied two screws.
2. Connect the supplied
Front Panel Hanger
using the supplied
screw.
3. Install the Front Panel
into the Front Panel
Bracket.
Use the supplied Magnet;
1. Connect the supplied Magnet and
Front Panel Hanger using the sup-
plied screw .
2. Affix the supplied Protection Seal to
the Magnet.
Magnet
Protection Seal
CAUTION!
P P P P P If the protective film is not affixed to the magnet, it may damage the mounting
surface.
P P P P P Damage is possible even if the protection film is attached.
P P P P P Be careful handling the hanger. The strong magnet could pinch your fingers.
P P P P P Even with the strong magnet, it is possible to displace the bracket.
P P P P P The magnet may destroy data on banking & identification cards.
