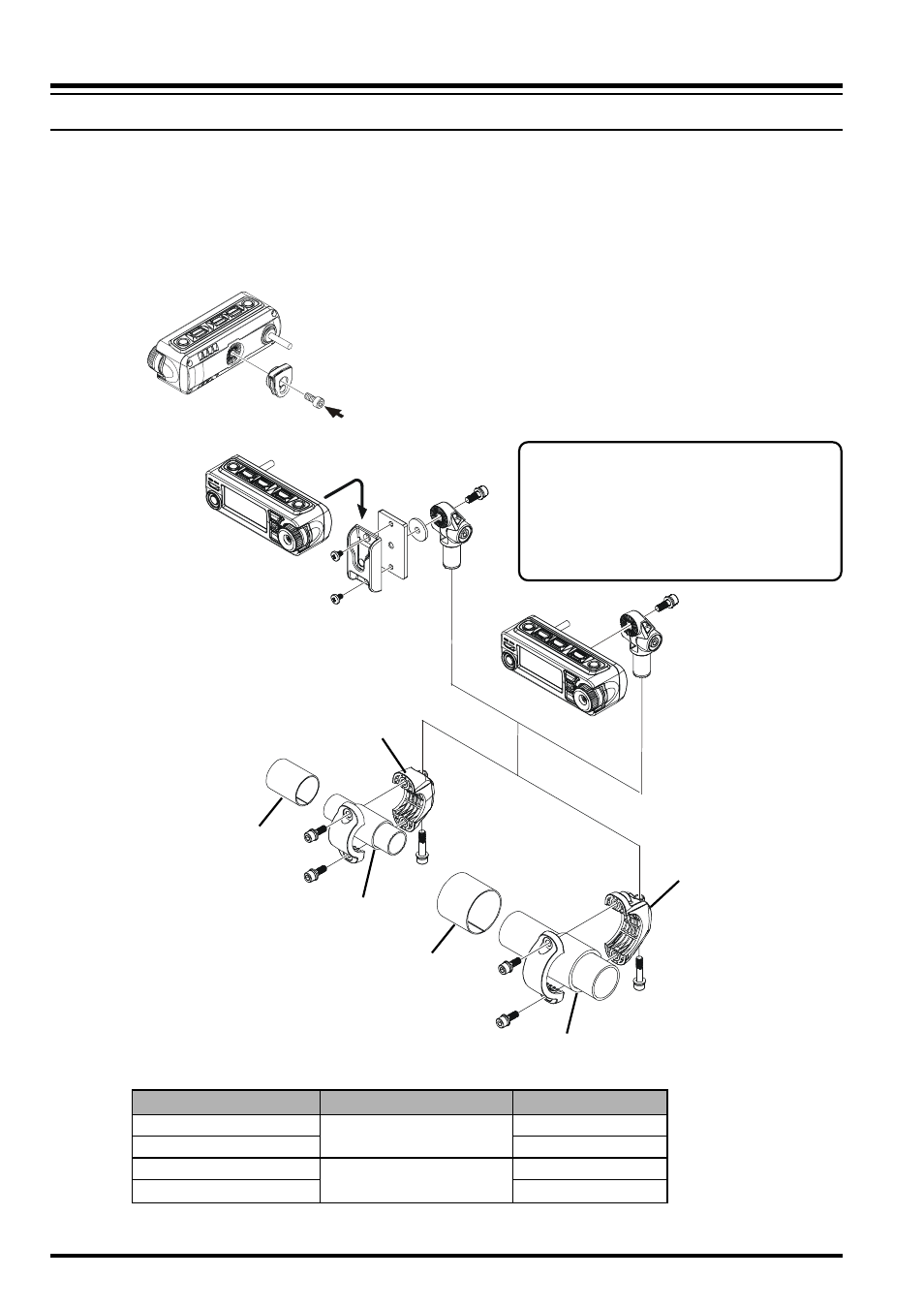

Use the Optional Handle Bar Bracket “MMB-M11”;
1. If you use the Front Panel as Micro-
phone, Connect the supplied Front
Panel Hanger using the supplied
screw.
2. Bracket and Rubber are selected by
the size of installed Bar (Refer to the
table below).
If you do not use the Front Panel
as a Microphone, install the
Front Panel directly to the
“MMB-M11”.
Bracket (L)
Bracket (S)
Rubber (S-a: t=1 mm)
Rubber (S-b: t=2 mm)
Rubber (L-a: t=1 mm)
Rubber (L-b: t=3 mm)
Bar
Bracket
Rubber
7/8”
S
S-a & S-b
1”
S-a
1-1/4”
L
L-a & L-b
1-1/2”
L-a
