20.4 Subtitle XML File Area
The CPL Authoring GUI displays the XML Subtitle Spot on the left and its associated features on the
right.
•
Double-clicking on a subtitle Spot will pause the playback and locate at the “Time-In” position
of the selected subtitle spot within the loaded clip.
•
Clicking on a Spot once, will pause the playback and enable the “Start” and “End” buttons
located on the right side of the GUI.
•
Then, clicking the “Start” button will locate at the “Time-In” position of the selected subtitle spot,
while clicking the “End” button will locate at the “Time-Out” position of the selected subtitle
spot.
•
In Pause mode, click the “Previous” button to locate on the previous subtitle spot, and click the
“Next” button to locate on the next subtitle spot.
When in pause mode, the Z-Offset value of the selected subtitle spot can be changed as explained
below:
1. Select the subtitle spot to edit.
2. Click the “Change” button located on the right of the GUI.

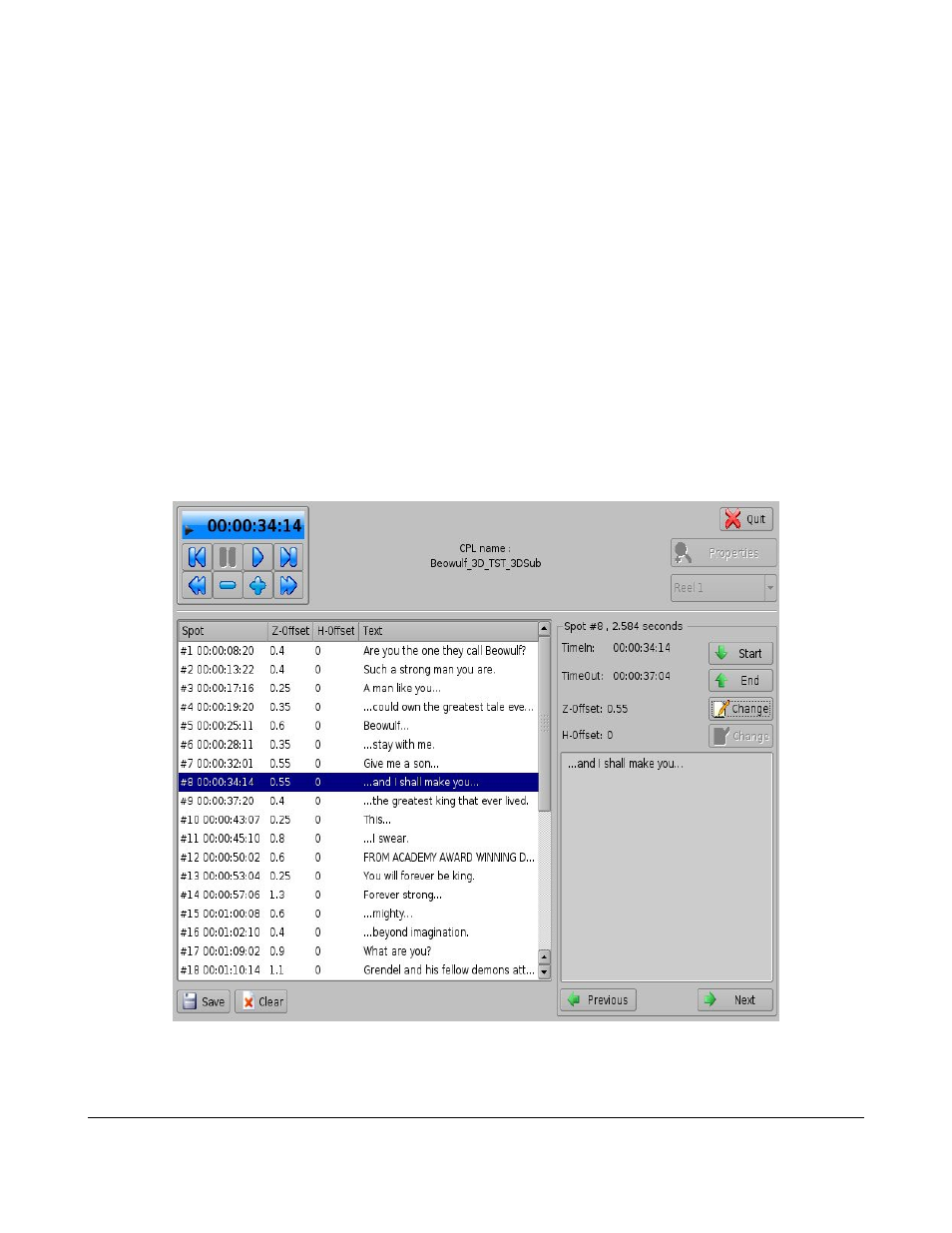

Figure 109:
