24 RCV2 Connection

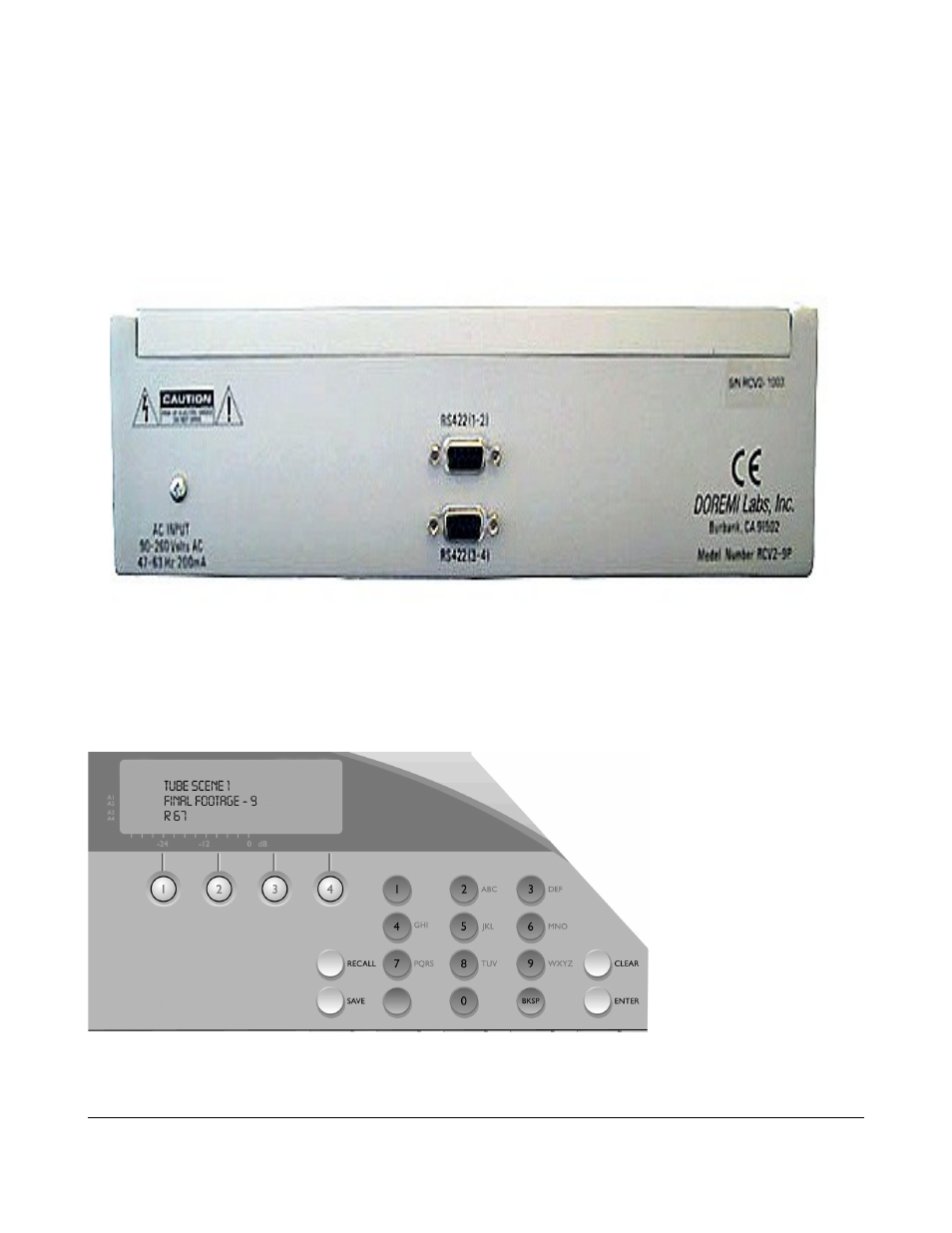

Connect the AC receptacle to the back of the RCV2 and then connect to an AC outlet.
Connect the blue cable that ships with the RCV2 to the RS-422 (1-2) port connector on the back of
the RCV2 unit. Connect this cable to the RS-232 port connector on the back of your DC-Post unit.
If you have a second unit, connect the use the port labeled RS-422 (3-4) on the back of the RCV2.
25 RCV2 Operation
The RCV2 face features a keypad, menu controls, transport controls, and an LCD display.
25.1 Keypad Area
