TV Mode
3.3.3.2.2.2.4.- Constellation
This feature represents constellation DVB-T2. Along with this graphical representation, the
calculated LDPCBER and MER measurements are also displayed on the same screen.

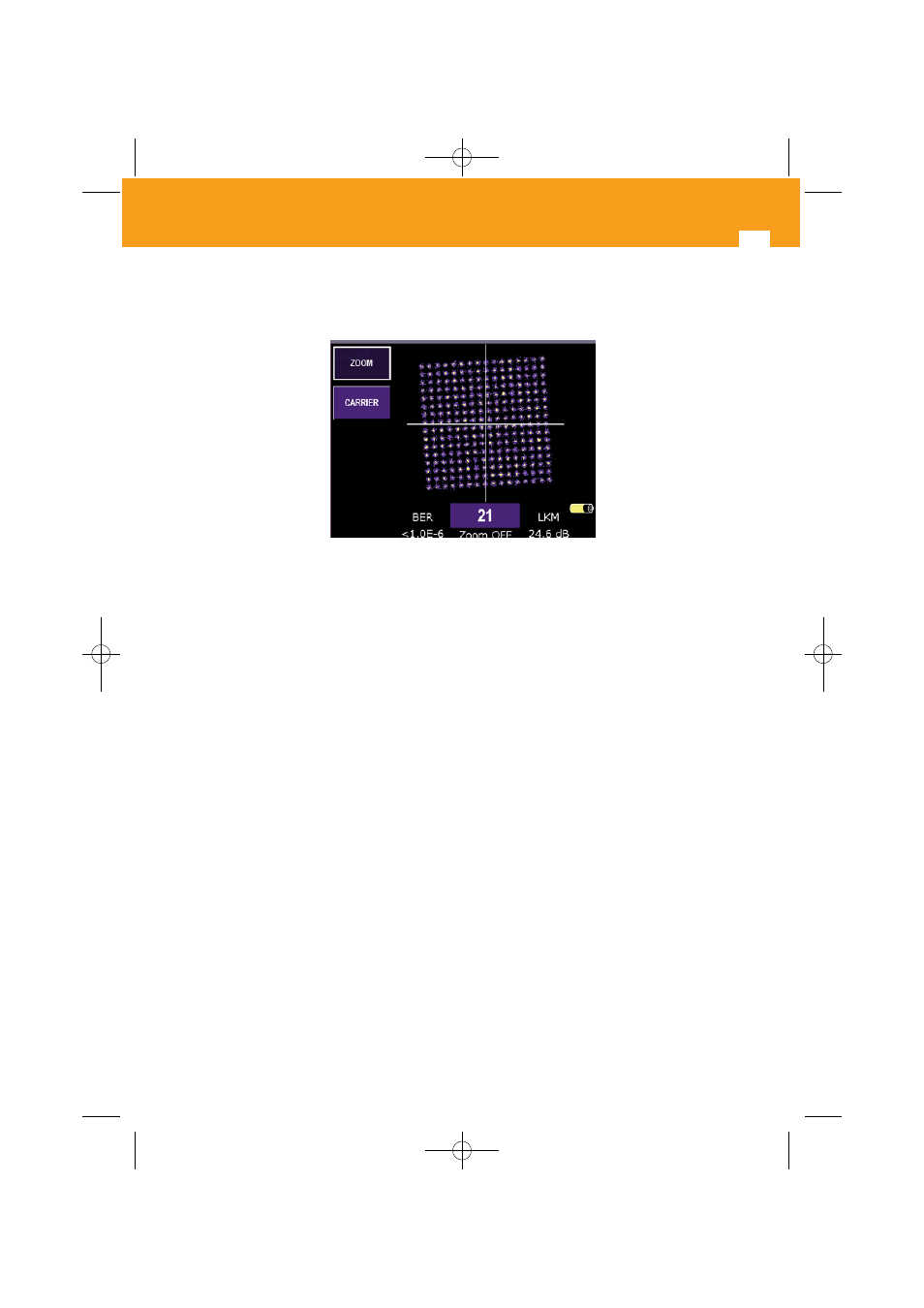

- DVB-T2 Constellation -
3.3.3.2.2.2.4.1.- Zoom
Use this option to select the quadrant for the constellation to be displayed for a detailed view.
If you select “Zoom OFF”, the on-screen graph will cover all four quadrants.
3.3.3.2.2.2.5.- Error packets
Using this feature, you can analyse error packets in an extended period of time. The operation
is similar to DVB-T.
