155
EN

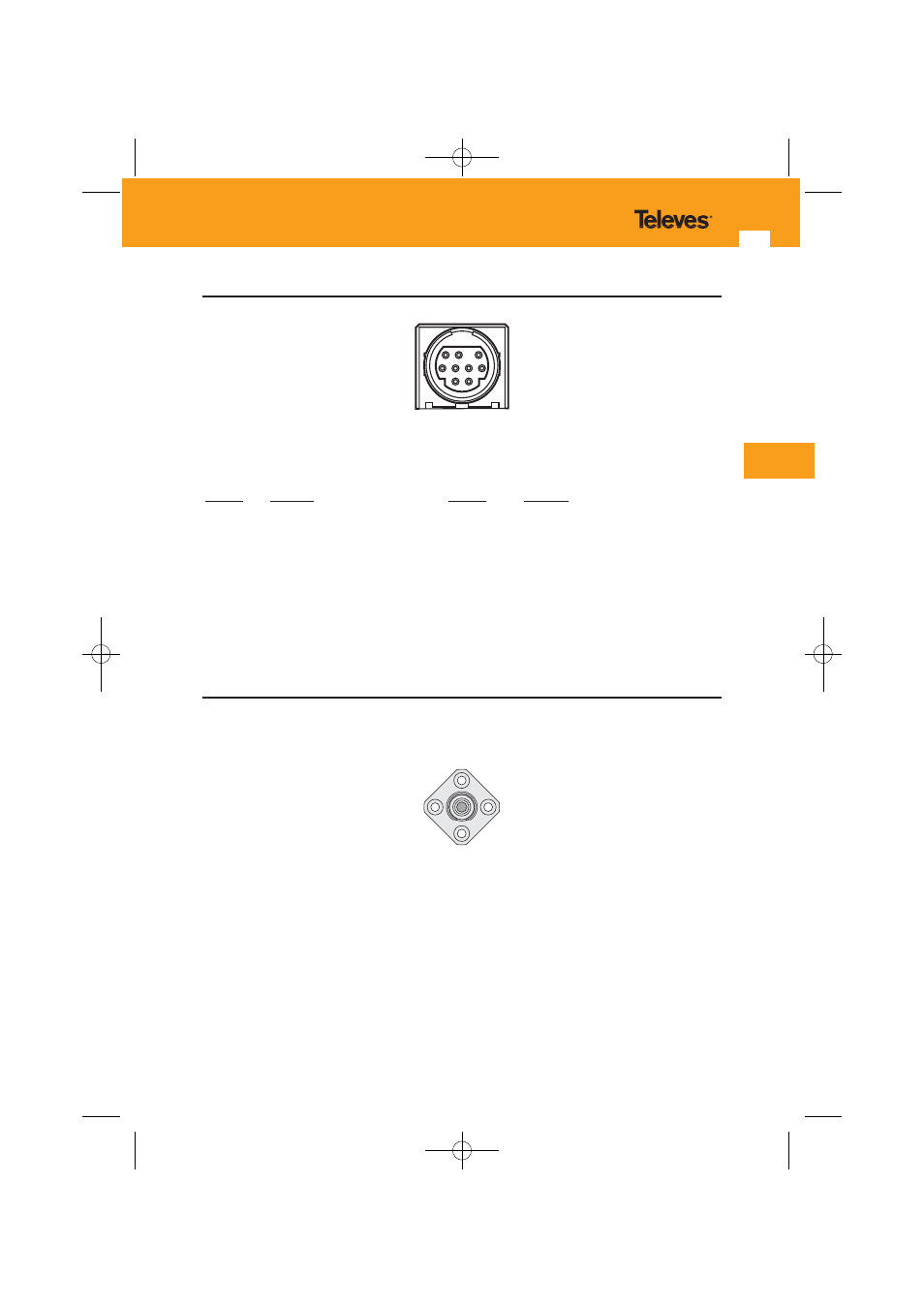

4.3.- MiniDIN
- MiniDIN -
The signals on this connector are as follows:
Nº PIN SIGNAL Nº PIN SIGNAL
4.4.- OPTICAL INPUT
The meter features an optical connector FC / APC to perform optical measurements.
1 Audio IN
2 Audio OUT
3 Switch SCART
4 Video SCART
5 Video IN SCART
6 TFT B
7 TFT G
8 TFT R
9 RGB ON
10 GND
1 2
3 4 5 6
7 8 9
