3.3.4.3.- Measures
In the H60, the measures are viewed on the lower part of the screen. At the bottom left of the
screen all the measures are shown, i.e., Level, V/A and CN for analog terrestrial channels, Level
and C/N for analog satellite channels, or Power and C/N for digital channels.
At the bottom right of the screen, the main measure selected will be displayed in large-sized
characters to ease reading when the user is at a distance from the equipment.
Each measure is associated with a color code, enabling the user to make a rapid evaluation
of the channel selected.
3.3.4.3.1.- Analog Measures
When this function is selected, the meter will carry out analog measurements, selecting as its
main measure the last one chosen by the user.

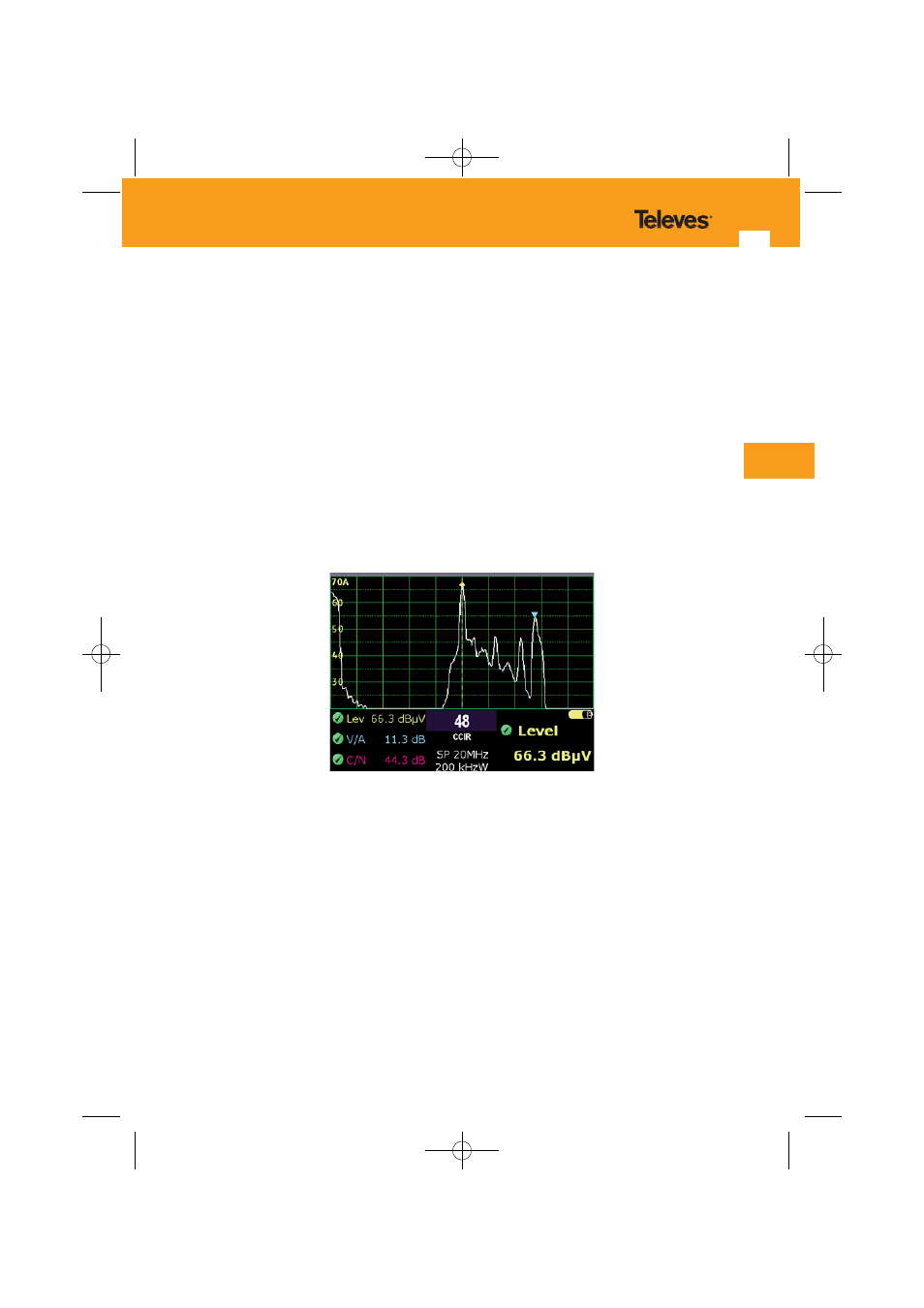

- Signal level -
3.3.4.3.1.1.- Level
This is the function used to select the level measure as a main measure, and it may be viewed
at the bottom right of the screen. The frequency in which the measurement is made is the
central frequency of the spectrum.
When we vary this central frequency we will see that the level measurement varies also.
