turboIP-G2 Performance Enhancement Proxy Revision 2
Management via the CLI or Web Server GUI CD-TURBOIP-G2
5–13

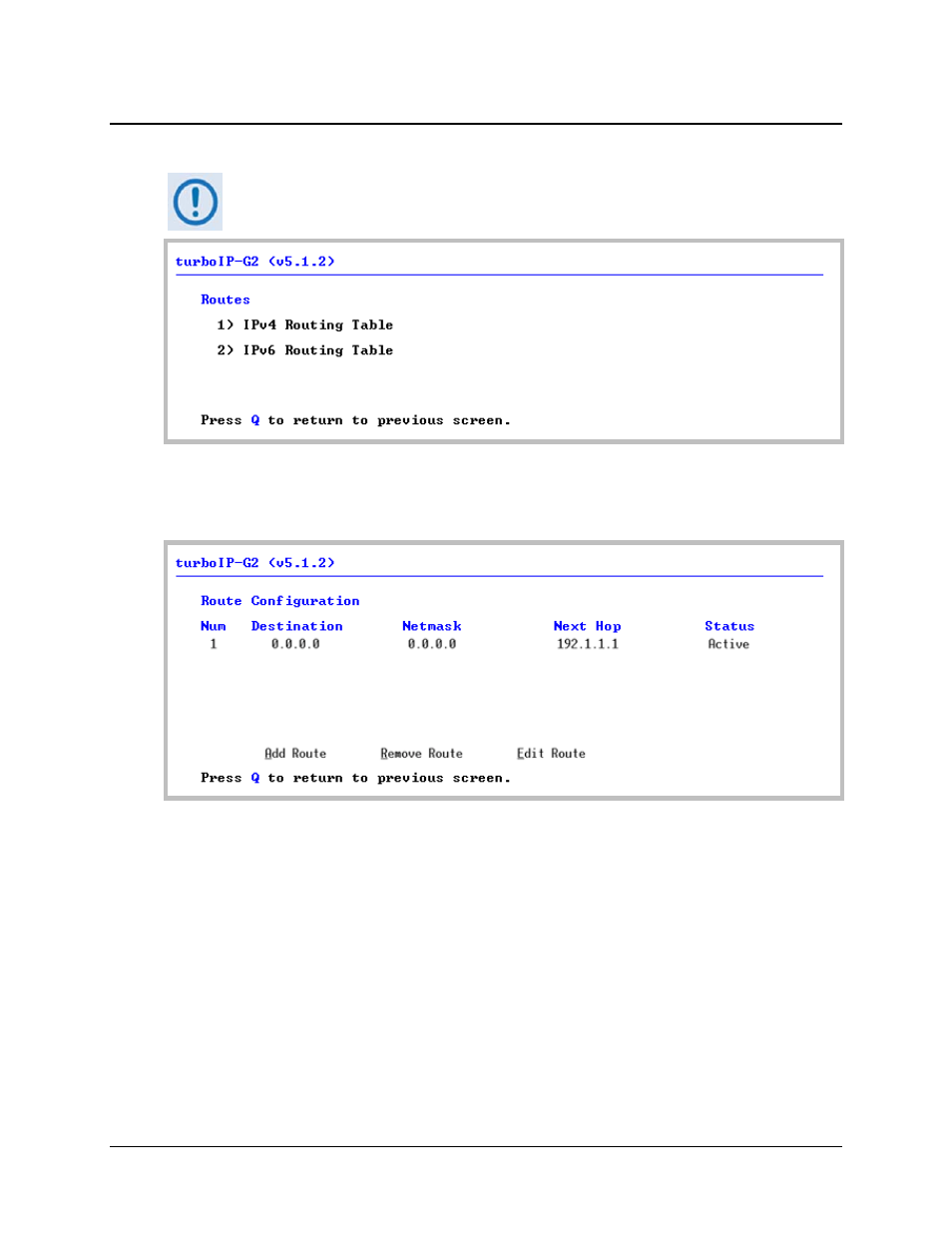

5.2.3.3 Routing Screen
Route entries are needed only to allow access to the turboIP-G2 from an outside
network (using the Web or SNMP IP interface).
Select
1 to access the IPv4 Routing Table, or 2 to access the IPv6 Routing Table.
5.2.3.3.1 Routing | IPv4 Routing Table Screen
Per the example here, the Destination is set to all IP Addresses, the Prefix is set to all Netmasks,
and the Next Hop address is 192.1.1.1.
• To add an IPv4 route, press ‘A’ – the user will first be prompted to enter the Dest Address,
Subnet Mask, and Net Hop address; press ENTER when done. The user will next be
prompted to specify the Route Status – select Active or Not in Service using the ▲▼ keys,
and then press ENTER to save. IPv4 route numbers are automatically assigned in the order
they are created.
• To remove an IPv4 route, press ‘R’ – the user will be prompted to specify the IP Address
(Route) Num; press ENTER to execute removal of that route.
• To edit an IPv4 route, press ‘E’ – the user will first be prompted to specify the Route Num
to edit; then, edit the Dest Address, Subnet Mask, and Next Hop address as desired. Finally,
edit the Route Status as Active or Not in Service. Press ENTER to save any changes made.
