NV9000-SE Utilities • User’s Guide
351
11. Control Panels
Updating Control Panel Details
3 Locate the row listing the control panel being updated.
4 Click on the ‘Panel Name’ field to activate it and enter a new name.
5 Click on the ‘Description’ field to activate it and enter a new description.
6 Click
Save
.
Or
To revert to the previously saved configuration, click
Revert to Saved
.
7 Click
X
on the window title tab to close the table.
Changing a Control Panel ID
The ID assigned to a control panel can be updated at any time. It is important that control panel IDs
are unique. Once changed, the new control panel ID populates all instances of that ID throughout
the system.
Panel ID numbers for control panel configurations can be changed using the ‘Panels’ table accessed
through the ‘Views’ pane.
How to Update a Control Panel ID for a Configuration File
1 Launch NV9000-SE. (See
Launching and Exiting the Application
2 From the Navigation area, select the ‘Views’ pane and then ‘Panels’. The ‘Panels’ table
appears, as shown in Figure 11-51.
To narrow the list of panels that display, enter the first characters of a control panel name in the
‘Panel Name Filter’ field. The list is automatically reduced to display only panels matching that
character string.

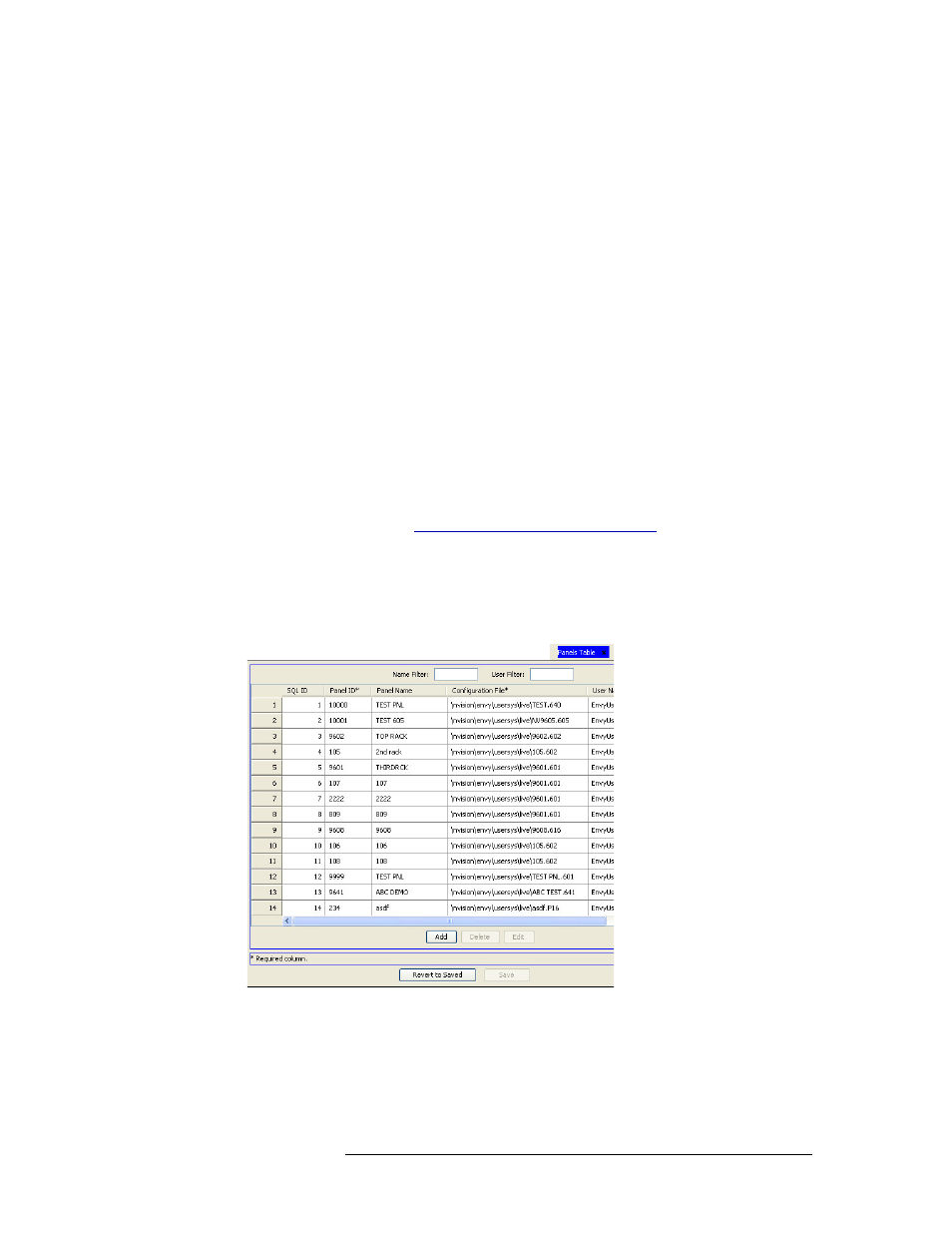

Figure 11-51. Panels Table
3 Locate the row listing the control panel being updated.
4 Click on the ‘Panel ID’ field to activate it and enter a new ID number. The number must use
numeric characters only (no letters or symbols) and is limited to 9 numbers.
