Mounting and cabling

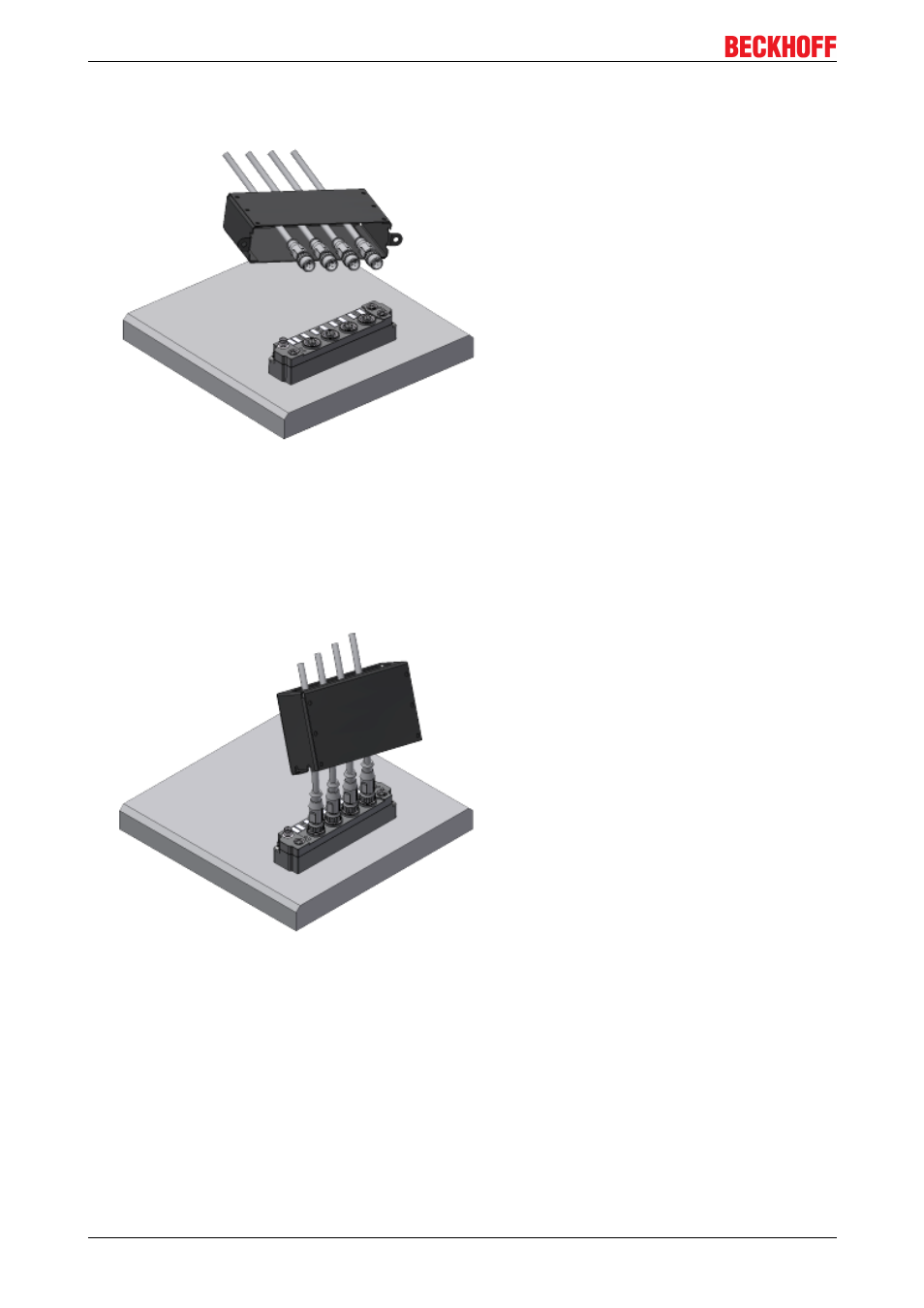

Fig. 86: BG20000000, putting the cables
Fix the wires for EtherCAT, power supply and sensors/actuators to the EtherCAT Box.
Fig. 87: BG20000000, fixing the cables
Mount the BG20000000 protection enclosure over the EtherCAT Box.
