Mounting and cabling
The 8 outputs deliver load currents of up to 0.5 A, although the total current from all the outputs must not
exceed 4 A. The outputs are short­circuit proof and protected against inverse connection.
The sensors are supplied from the control voltage Us.

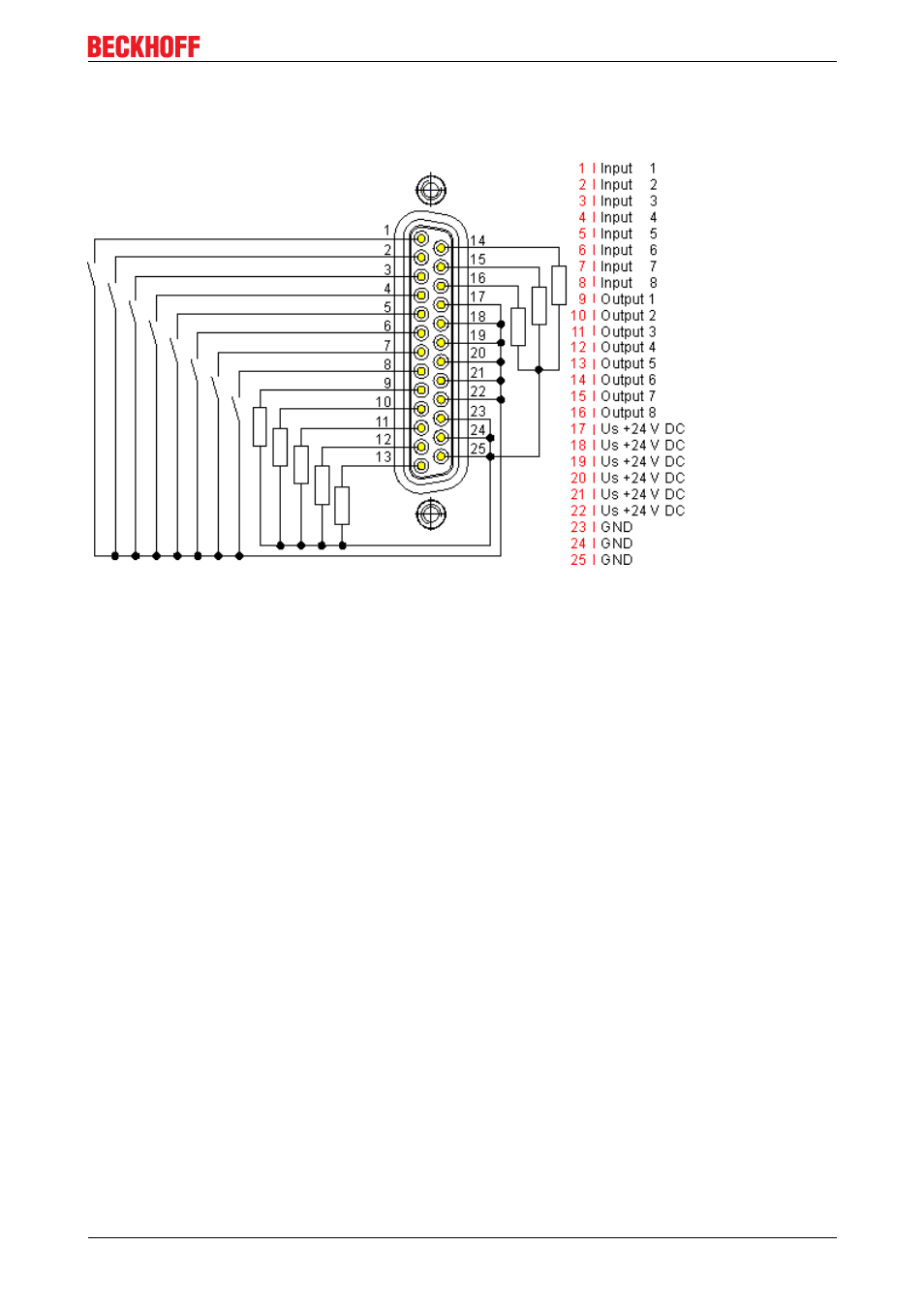

Fig. 95: Digital inputs and outputs Sub­D 25
3.6.8 Digital inputs and outputs ZS2001, 8 channels
The digital outputs connect the binary control signals from the automation unit on to the actuators at the
process level. The 8 outputs handle load currents of up to 0.5 A, and indicate their status through light
emitting diodes. The signals are optionally connected via several KM connectors. The outputs are short­
circuit safe and protected against inverse connection.
The digital inputs acquire the binary control signals from the process level and transmit them to the higher­
level automation unit. The signal state is indicated by means of light emitting diodes. The signals are
optionally connected via several KM­connectors.
The sensors are supplied from the control voltage U
S
. The load voltage, U
P
, is required for the output drivers.
If U
P
and U
S
are used for passing the power on, the maximum current must not exceed 4 A.
