2 Installation
2.4.1 Orientation
2-34
2.4
SERVOPACK Installation
2.4.1 Orientation

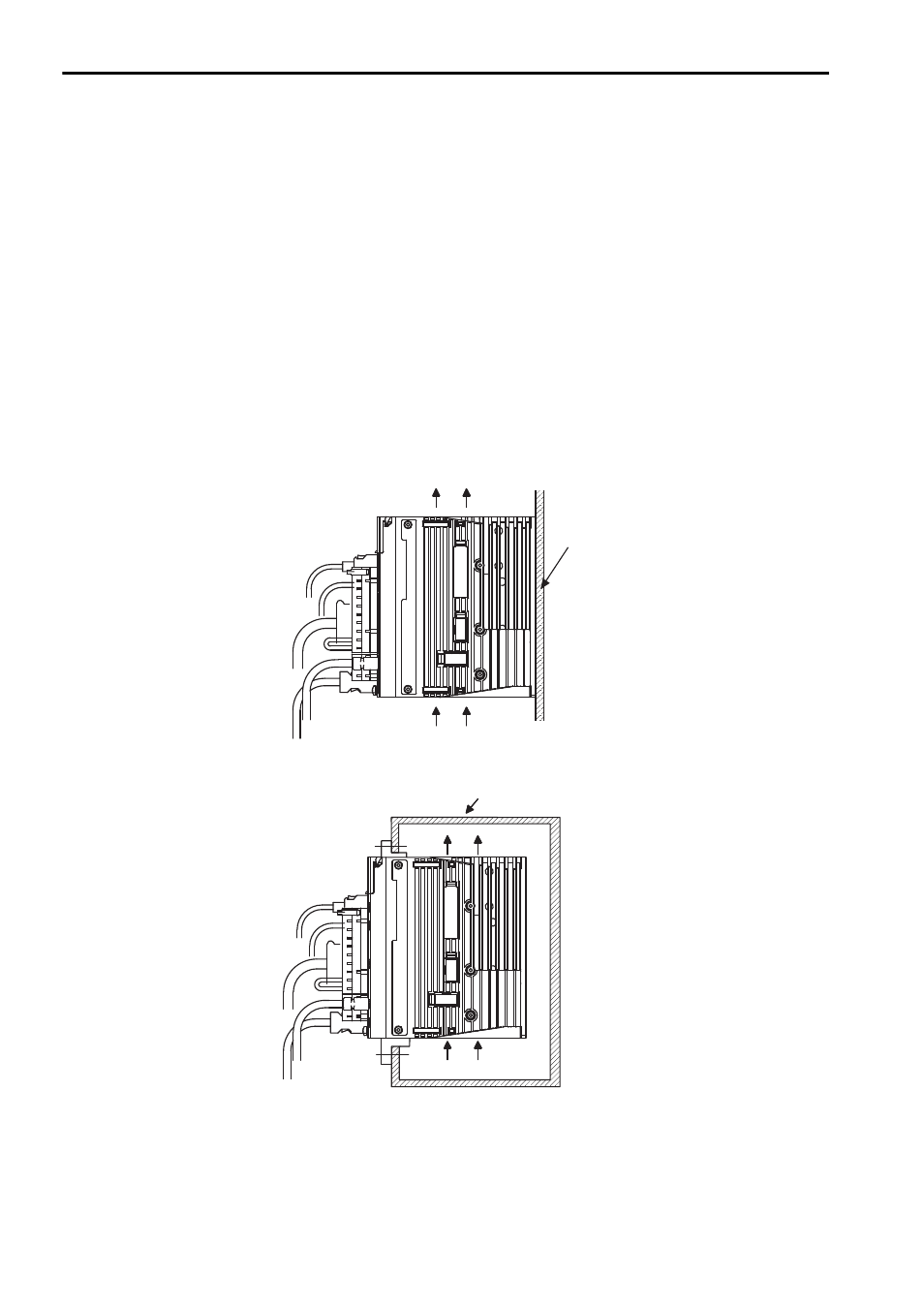

The SERVOPACK is available in models that are base-mounted, models that are
rack-mounted, and models that are duct-ventilated. In any case, mount the SERVO-
PACK with a vertical orientation.
Firmly secure the SERVOPACK to the mounting surface, using either two or four
mounting holes depending on the SERVOPACK capacity.
Note: For SERVOPACKs of command option attachable type, installation conditions may dif-
fer depending on the attached option module. For details, refer to the user’s manual for
each option module.
• Base-mounted
• Rack-mounted
Air Flow
Base
Rack
Air Flow
