Create corner tiles for brush patterns
Corner tiles lend special border effects when applying brush patterns. You can create corner tiles from scratch, or
you can use a brush pattern’s side tile as the basis for designing complementary outer and inner (reflected –135˚)
corner tiles.
1
Choose File > Open, locate a brush pattern file (supplied with Adobe Illustrator) that you want to use, and click Open.
2
Choose Window
> Brushes. Select the tile you want to use, and drag it to the center of your artwork.
3
If the tile does not have a square bounding box, create a box that completely encompasses the artwork, the same
height as the side tile. (Side tiles can be rectangular.) Fill and stroke the box with None, and choose Object >
Arrange > Send To Back to make the box backmost in your artwork. (The bounding box helps you align the new tile.)
4
Select the tile and the bounding box.
5
To create an outer corner tile, use the Rotate tool
to rotate the tile and its bounding box 180˚. Skip this step to
create an inner corner tile.

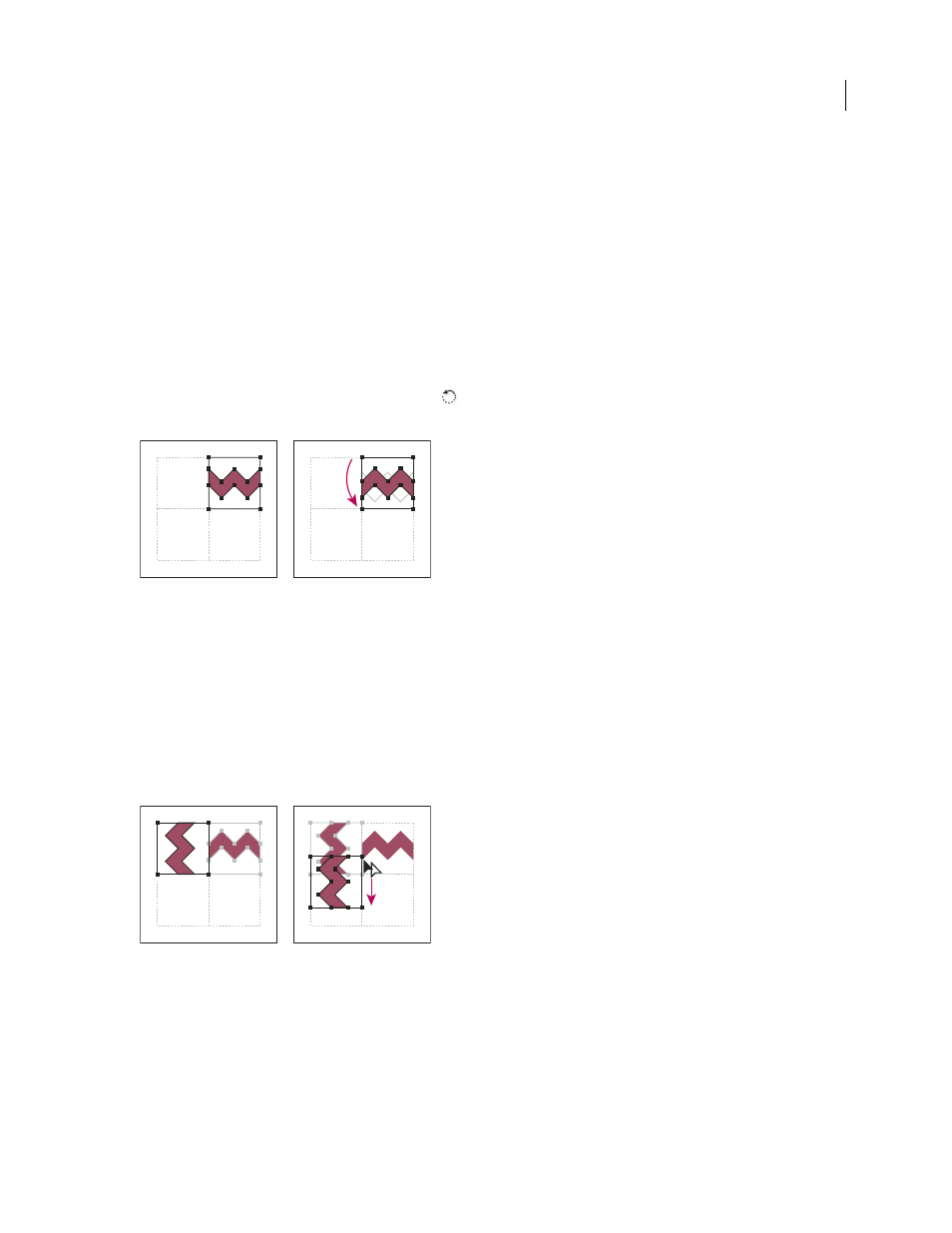

Pasted tile (left) compared to same tile rotated 180˚ (right)
6
Using the Rotate tool, Alt+Shift-click (Windows) or Option+Shift-click (Mac OS) the lower left corner of the
bounding box. Enter a value of 90˚, and click Copy to create a copy flush left of the first tile. This tile becomes the
corner tile.
7
Using the Selection tool, drag the left tile down by the top right anchor point, pressing Alt+Shift (Windows) or
Option+Shift (Mac OS) to make a copy and constrain the move so that you create a third tile beneath the second.
When the copy’s upper right anchor point snaps to the corner tile’s lower right anchor point, release the mouse
button and Alt+Shift (Windows) or Option+Shift (Mac OS).
You use the third copy for alignment.
Rotate 90˚ and copy left tile (left), and then Alt-drag (Windows) or Option-drag (Mac OS) a corner tile to make a copy beneath it (right).
8
Select the artwork in the right tile. Drag it to the left, pressing Alt+Shift (Windows) or Option+Shift (Mac OS) so
that the right-tile artwork overlaps that in the corner tile.
