Chapter 10 - Communications
Chapter 10
Communications
10.1 Setting up communication
The camcorder has two RJ-45 Ethernet connectors (one for future use), two USB host
connectors, one USB device connector (future use) and an IEEE 1394 connector.
10.2 USB connection
The USB host connectors on the top-rear panel and right-side panel can be used to connect a
USB mass storage drive or other device. The connection does not need further configuration.
☞
Note
☞
Note
Do not plug or unplug USB devices while the camcorder is being used for critical play to air
activity.
Maximum combined power load that can be drawn from the USB ports is 0.25 W.

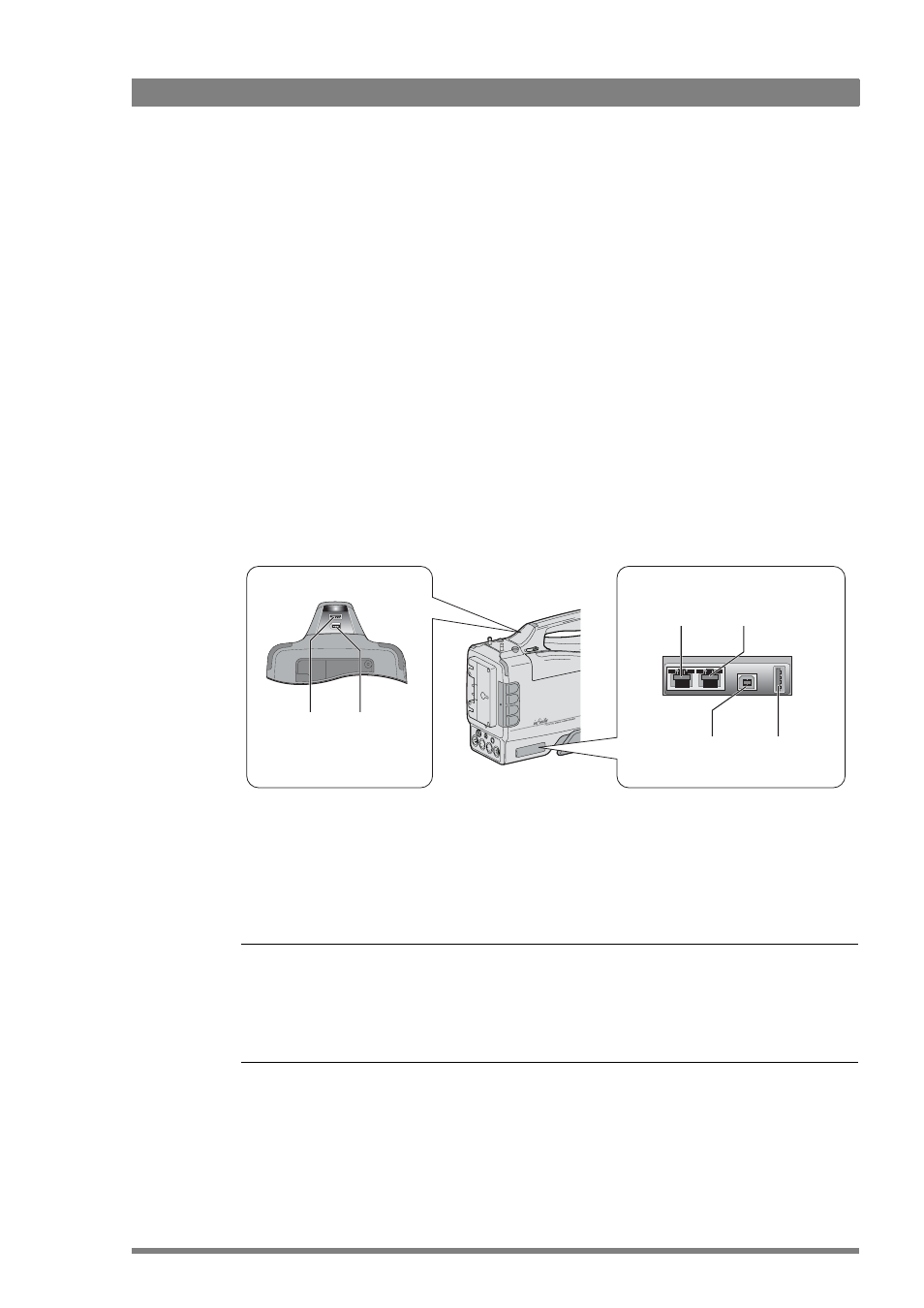

Network 2
Network 1
USB B
USB A
Ethernet RJ-45
connector
(future use)
USB connector B
(device)
(future use)
USB
connector A
(host)
IEEE
1394
connector
USB
connector
(host)
Ethernet RJ-45
connector
