Page 82
82
DMC 1000 Digital Media Camcorder User’s Guide (v4.0)
Chapter 6 - Audio setup

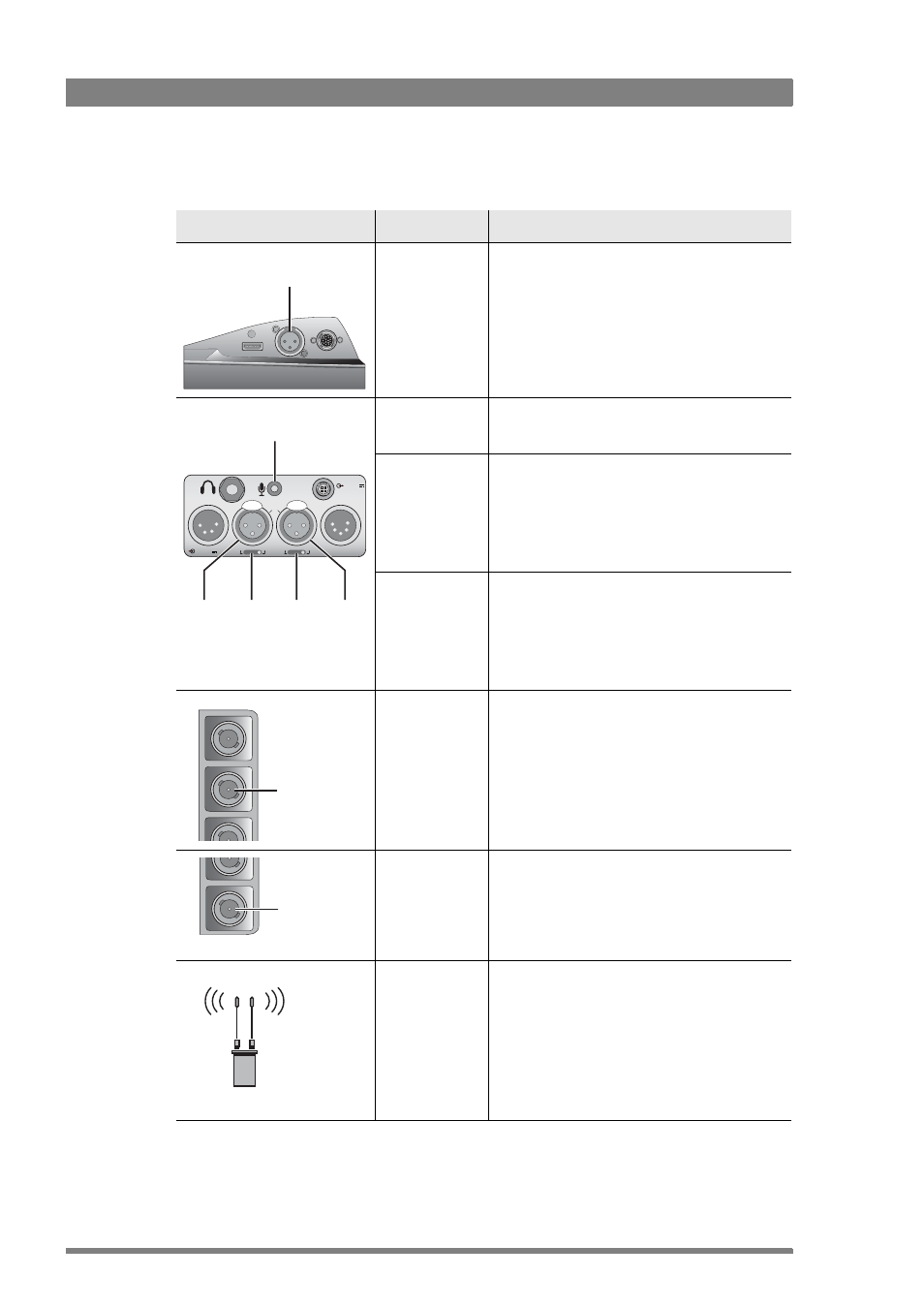

6.2 Inputs
Refer to section 11.2 on page 117 for detailed pin layouts for several audio connectors.
Location
Connector
Function
Front microphone
input (Front1 or
Front2)
This XLR-3 socket accepts a balanced mono
microphone signal from a high quality dynamic
microphone. A phantom power supply is provided as
standard.
When the optional DMC 1180 stereo front
microphone connector kit is installed, this socket is
replaced with a 5-pin XLR female socket that
accepts a stereo balanced microphone.
Headset
microphone
input (MicRear)
Connect a headset microphone to this mini-jack
3.5 mm) socket.
Audio
Input 1 (Rear1)
This XLR-3 socket accepts balanced audio signals
from microphones or line level sources.
With the switch under the socket, set the input to
either:
• line
• mic
• mic +48 V phantom power
Audio
Input 2 (Rear2)
This XLR-3 socket accepts balanced audio signals
from microphones or line level sources.
With the switch under the socket, set the input to
either:
• line
• mic
• mic +48 V phantom power
Digital SDI audio
inputs (SDI1 to
SDI8)
Eight channels of embedded SDI inputs.
Digital AES audio
inputs (AES1 and
AES2)
Two-channel digital audio input compliant with the
AES/EBU protocol.
Wireless
microphone
inputs (Wrx1 and
Wrx2)
Wireless microphone input. Requires the installation
of a wireless receiver unit (optional). This adds one
or two wireless audio sources (Wrx1 and Wrx2).
Front microphone
input
Audio Out
11-17V 7A
11-17V
1A max.
Audio
In 1
Mic
Line
+48V
In 2
Mic
Line
+48V
Headset microphone
input (MicRear)
Audio
Input 1
Audio
Input 2
Mic/Line
switches (2x)
Digital SDI
audio output
Digital AES
audio output
