Chapter 3 - General set-up
3.1.2 External power
DC input supply
To power the camcorder from an external power supply, apply a power source of 15 VDC
nominal to the DC input connector at the rear of the camcorder.
Caution
The input voltage must not exceed 17 VDC and the external power supply must not supply
more than 8 A or 100 W. The use of the Grass Valley LDK 5901 power supply is
recommended.
A low power message appears in the viewfinder when the external voltage drops below the
level set in the viewfinder SYSTEM
> POWER menu.
The camcorder switches off automatically if the supply voltage falls below 10.0 VDC. To start
the camcorder again, first disconnect the supply source(s) that fell below this level. The
camcorder will start up when the supplied voltage level is at least 10.7 VDC.
Caution
Only connect an external battery pack (for example a battery belt) to the DC input connector
that is protected against reverse current.
Auxiliary power connector
This connector provides a supply voltage of 11 to 17 VDC supplied by the battery or by the DC
input connector. An automatic circuit limits the current that can be supplied from this
connector to 1.0 A.
Tip
✎
Use the auxiliary output to power an HDMI external video display.

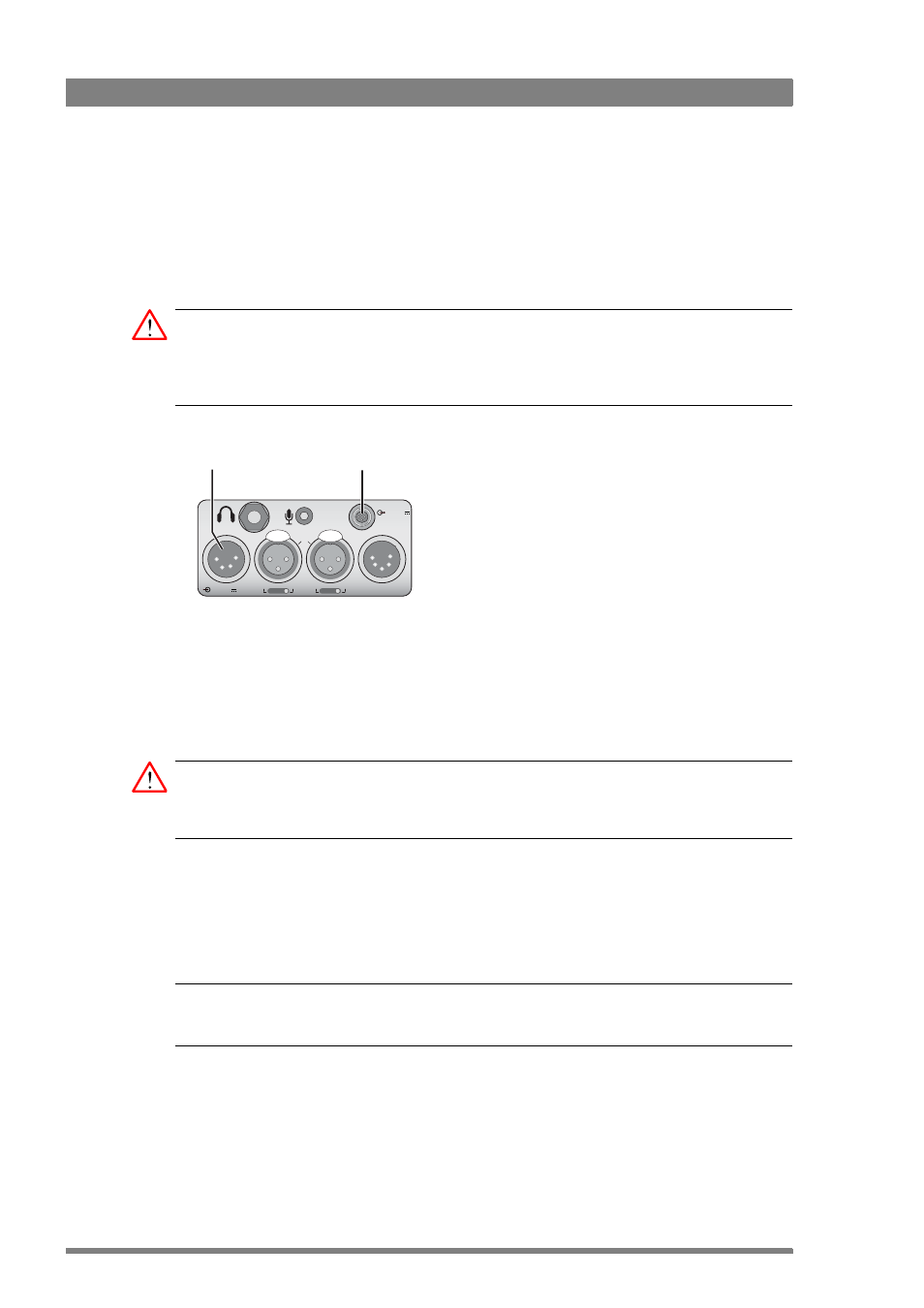

Audio Out 11-17V 7A
11-17V
1A max.
Audio
In 1
Mic Line +48V
In 2
Mic Line +48V
DC input
connector
Auxiliary power
connector
