88 DMC 1000 Digital Media Camcorder User’s Guide (v4.0)
Chapter 6 - Audio setup
6.5 Outputs
6.5.1 Rear outputs
An 5-pin XLR audio connector at the back of the camcorder provides two audio line outputs
(Rear1 and Rear2). The driver circuitry for these outputs is normally disabled to save power.
You must first enable the driver to obtain an output signal:
1. Go to the AUDIO > OUTPUTS > REAR menu.
2. Tap the REAR button and use the arrows in the pop-up box to select ENABLED.
To select a signal for output:
1. Go to the AUDIO > OUTPUTS > REAR menu.
2. Tap the REAR MODE button and use the arrows in the pop-up box to select SOURCE or
CHANNEL
mode.
– If you select the source mode, the channel selection button is disabled; if you select the
channel mode, the source selection button is disabled.
3. Tap either the SOURCE or CHANNEL selection button to select the recording channel or
source to be routed to the rear output.
Do this for both Rear1 and Rear2.
☞
Note
☞
Note
If you initially set up the output signal for both modes (source and channel), you can use the
mode button to quickly switch between the selected signals.

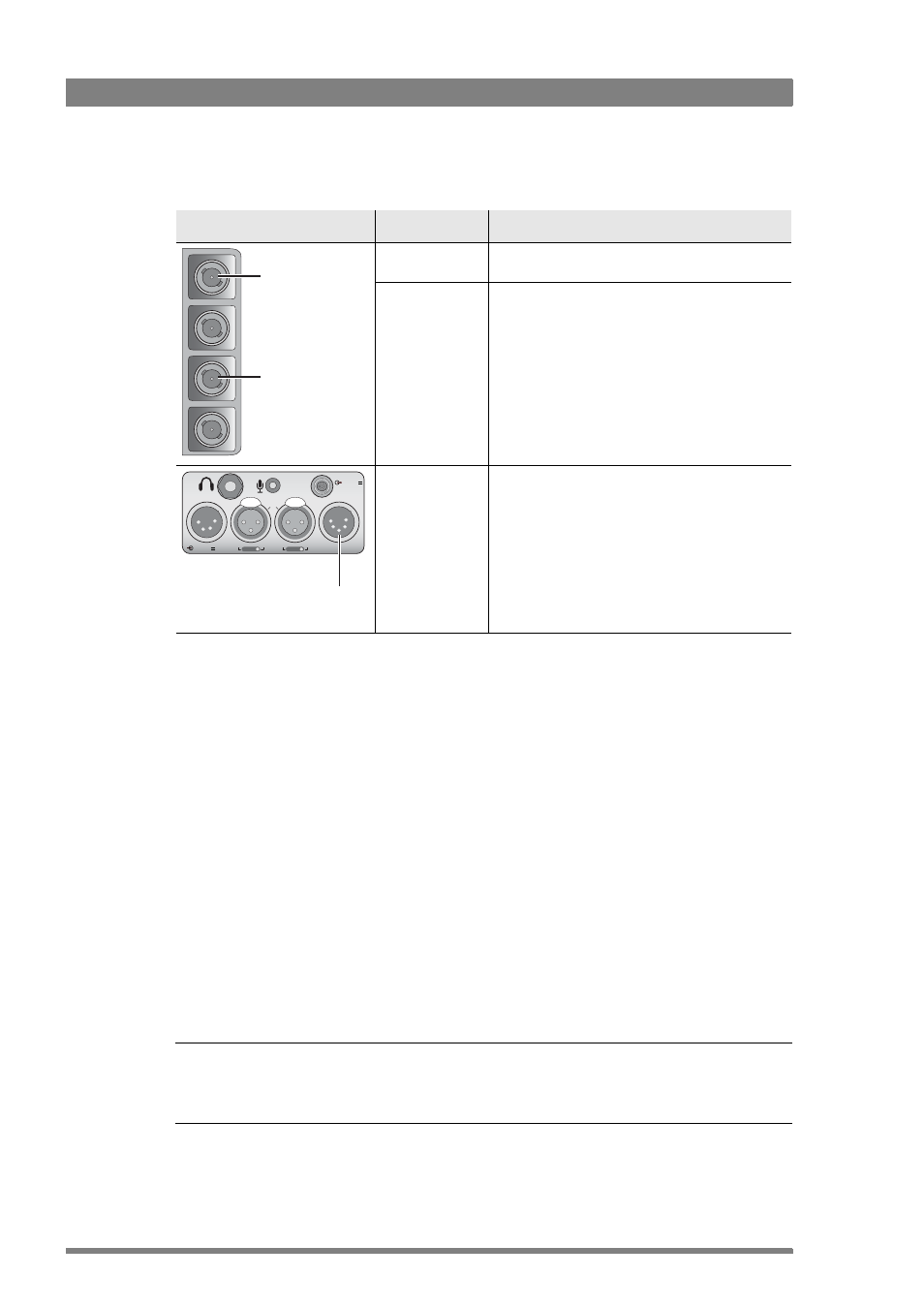

Location Connector Function
SDI embedded
audio output Eight embedded SDI outputs compliant with
SMPTE 272 M-A and SMPTE 299M protocols.
Digital AES audio
output (AES1 and
AES2) Two channel digital audio compliant with the AES/
EBU protocol.
Analog audio
output (Rear1 and
Rear2) This XLR-5 socket supplies two balanced audio
output signals at line level.
SDI embedded
audio output
Digital AES
audio output
Audio Out 11-17V 7A
11-17V
1A max.
Audio
In 1
Mic Line +48V
In 2
Mic Line +48V
Analog audio
output 1+2
