Chapter 3 - General set-up

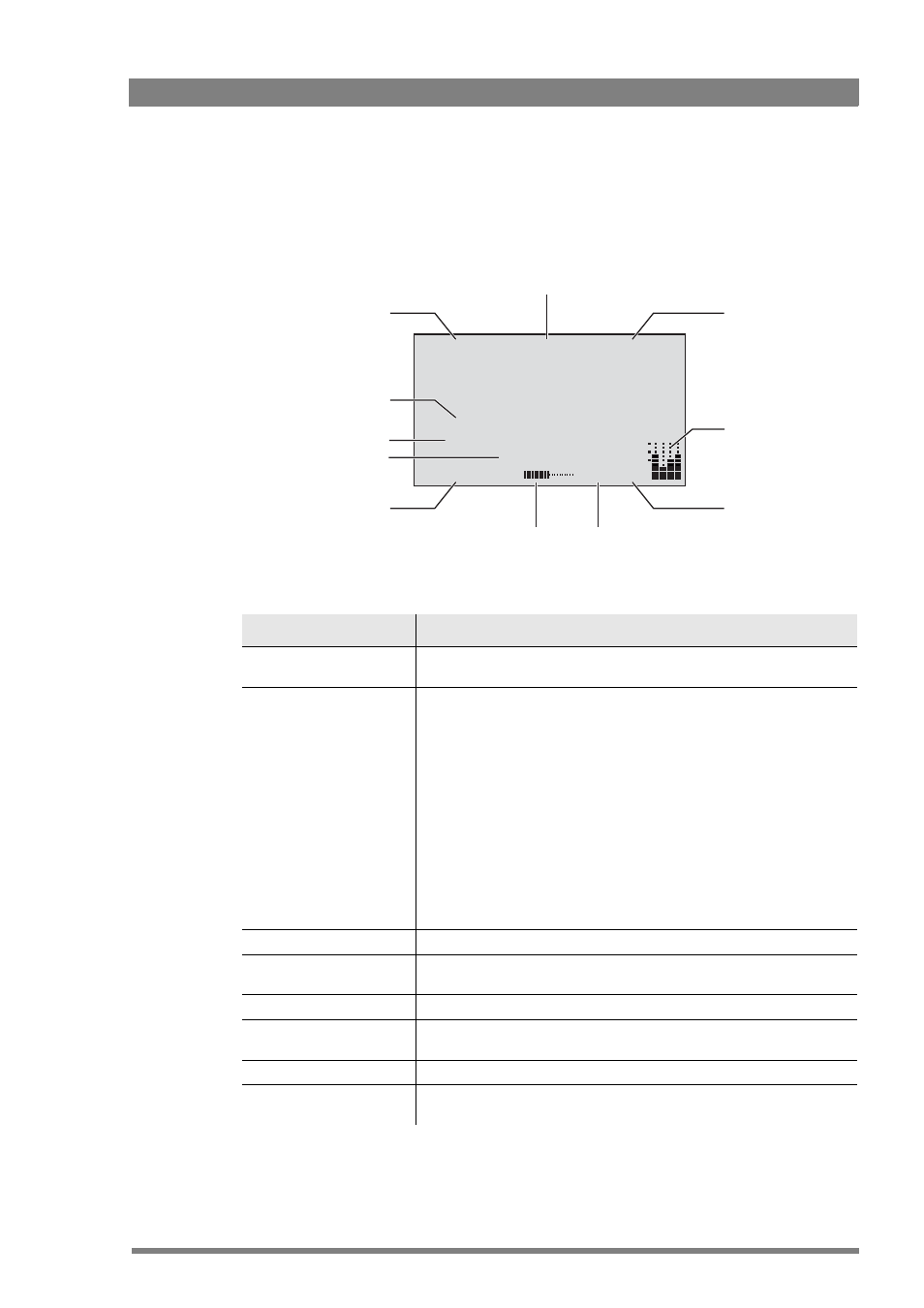

3.6.4 Viewfinder on-screen display
The viewfinder on-screen display can be used to show the following operational settings and
messages while shooting.
Indicator Function
Zoom indicator Indicates the zoom position of the lens ranging from 0 (wide angle) to 99
(tele). It shows 50 if the lens does not support this feature.
Focus/Wireless indicator This indicator can be set to display information about the lens focus distance
or about the (optional) wireless microphone receiver. Select the indicator in
the
VF > INDICATOR > FOCUS/WRX menu.
Focus: Indicates a perecentage value for the focus distance ranging from 0
(close-up) to 99 (infinity). Note: This feature is only available when a digital lens
is used.
Wrx: wireless microphone receiver status:
No indication: Wireless input is not selected.
Wx:- - = Wireless input is selected but the RF receiver is not detected.
Wx:OK = Wireless input is selected and RF connection is good.
Wx: SQ: Wireless input is selected and squelch function is active.
Wx: RF = Wireless input is selected and RF connection is poor.
Iris indicator Indicates the iris opening (F -value) of the lens. Typical range is F1.4 to F25.
Audio bars These bars display the audio levels for channels 1 to 4. The resolution is 12
segments per channel for full range.
Message areas 1 and 2 Display operational messages, errors and warnings.
Output signal marker Marks the output signal as the viewfinder signal. This indicator is only shown
when the digital output port (BNC) is set to ‘VF’.
Optical filter indicator Indicates the selected optical filter.
Buffer level indicator Indicates the level of the recording buffer. There are 20 segments; each
segment represents 5% of the full buffer capacity.
55
13.2 V B ND1/4
98 F4.0
VF
Extended auto iris is off
Color: 5600K
01:36:05;19 F
Audio bars (4)
Zoom indicator
Output
signal marker
Timecode
Iris indicator
Focus/Wireless
indicator
Buffer
indicator
Power/Media
indicator
Filter
indicator
Message area 2
Message area 1
