Chapter 6 - Audio setup
– For SOURCE4, select Sidetone (Sidetone channel from the cameraman mic)
3. Tap each LEVEL buttons and set the desired channel mix contribution. The default value
for all channels is 50, which means that all channels are equally loud.
Set up the monitoring section to listen to the intercom channels:
1. Go to the AUDIO > MONITORING menu.
2. Tap the HDPH MODE LEFT button and select Source,
3. Tap the HDPH SOURCE LEFT button and select Mixer,
4. Do the same for the headphone right settings.
Both headphone muffs now produce the mixed intercom channels. This is the most common
use of the intercom function. You can also use one headphone channel to listen to any
intercom channel or the pre-defined mix, while on the other headphone channel is used for
recording or live monitoring.
6.7.7 Intercom routing

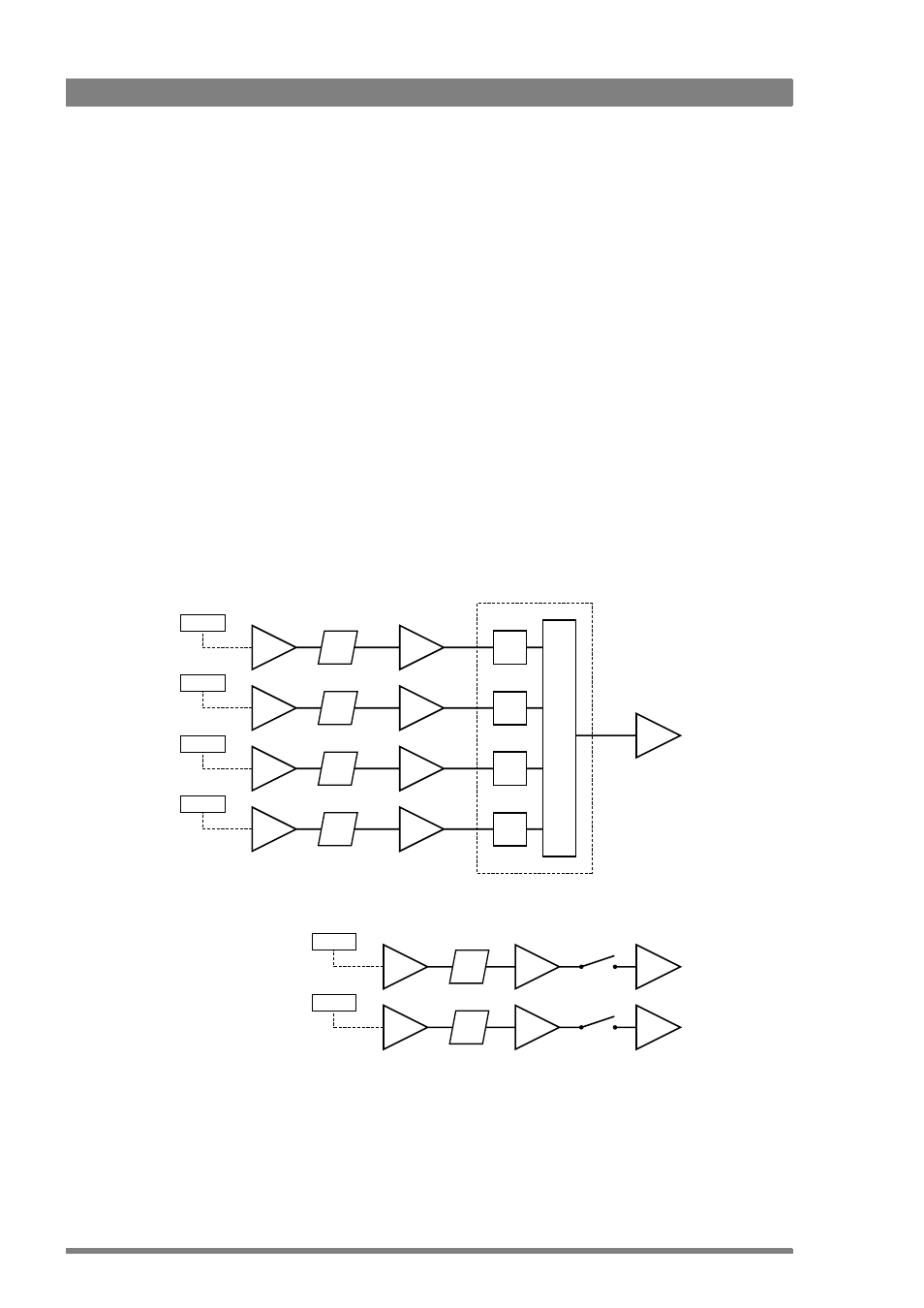

The following schematic overview provides a survey of the intercom routing:
Src
Src
Eng Src1 Alias
Prod Src2 Alias
Prog Src3 Alias
Sidetone
Lvl1
Lvl2
Lvl3
Lvl4 Src4 Alias
Eng_Ret
Prod_Ret
Prod Talk
Eng Talk
Output
Mixer To headset cameraman
Output
Talk back to base unit
Talk back to base unit
Alias
Alias
Mixer
SDI In3
SDI In4
SDI In1
MicRear
Sidetone
Sidetone
Outgoing:
Incoming:
