Chapter 11 - Specifications

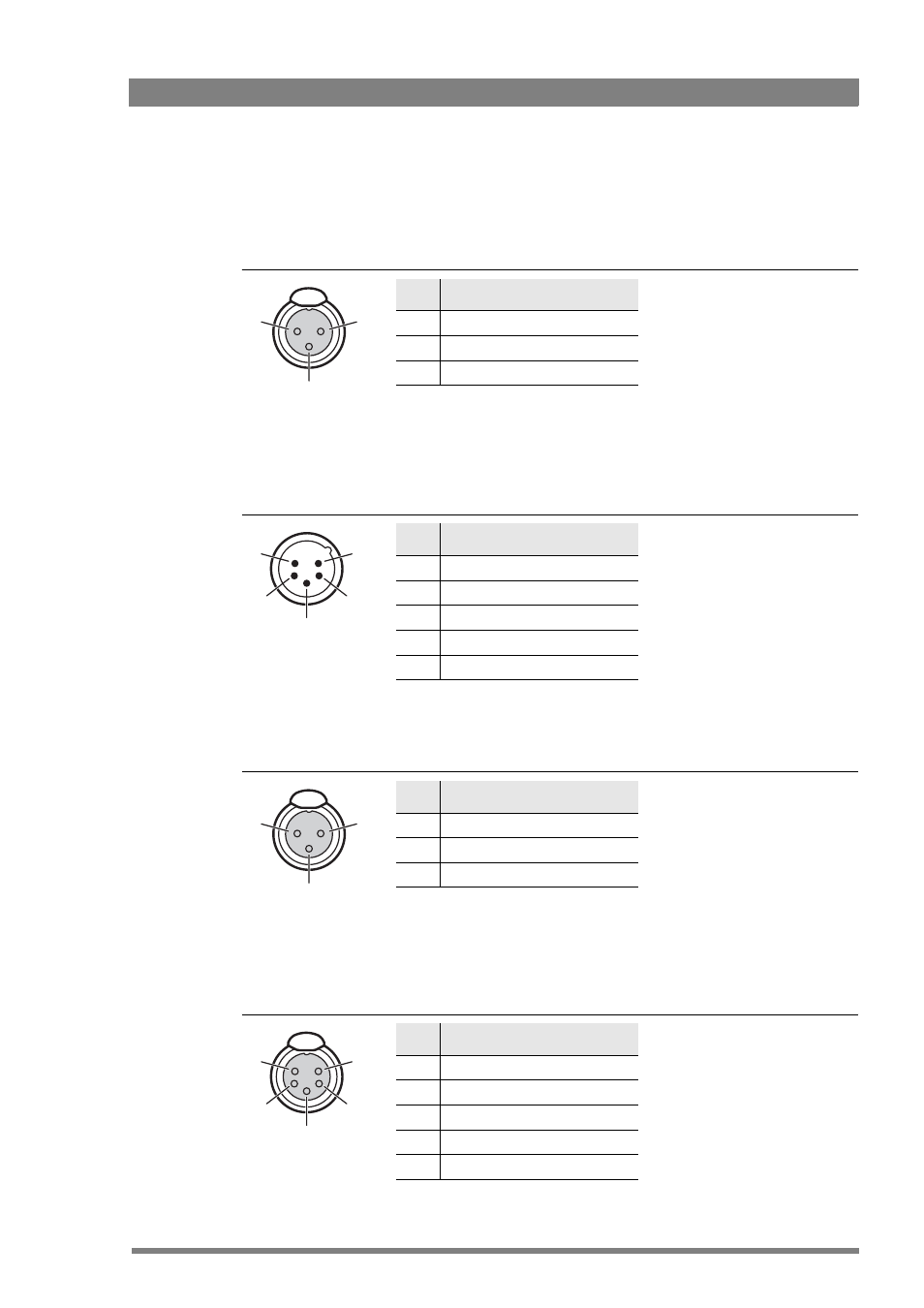

11.2 Connectors
11.2.1 Audio input connectors (Rear1 and Rear2)
11.2.2 Audio output connector
11.2.3 Front microphone connector (Front1)
11.2.4 Front microphone connector (Front1 and Front2)
Pin Description
1 Chassis ground (cable shield)
2 Audio Hot (+)
3 Audio Cold (-)
Microphone impedance: 200 Ω
Max. input level: +22 dBu
Phantom power: +48 V (switchable)
Mic/Line switchable
XLR 3-pin female
(panel view)
3
1 2
Pin Description
1 Chassis ground (cable shield)
2 Audio 1 hot (+)
3 Audio 1 cold (-)
4 Audio 2 hot (+)
5 Audio 2 cold (-)
XLR 5-pin male
(panel view)
4
3
5
2
1
Max. output level: +22 dBu
Outputs are at balanced line level.
Pin Description
1 Chassis ground (cable shield)
2 Audio (+)
3 Audio (-)
XLR 3-pin female
(panel view)
Microphone impedance: 200
Ω
Max. input level: +14 dBu
Phantom power: +48 V (fixed)
3
1 2
Pin Description
1 Chassis ground (cable shield)
2 Audio 1 hot (+)
3 Audio 1 cold (-)
4 Audio 2 hot (+)
5 Audio 2 cold (-)
XLR 5-pin female
(panel view)
2
3
1
4
5
Microphone impedance: 200 Ω
Max. input level: +14 dBu
Phantom power: +48 V (fixed)
