Sensor/Faults

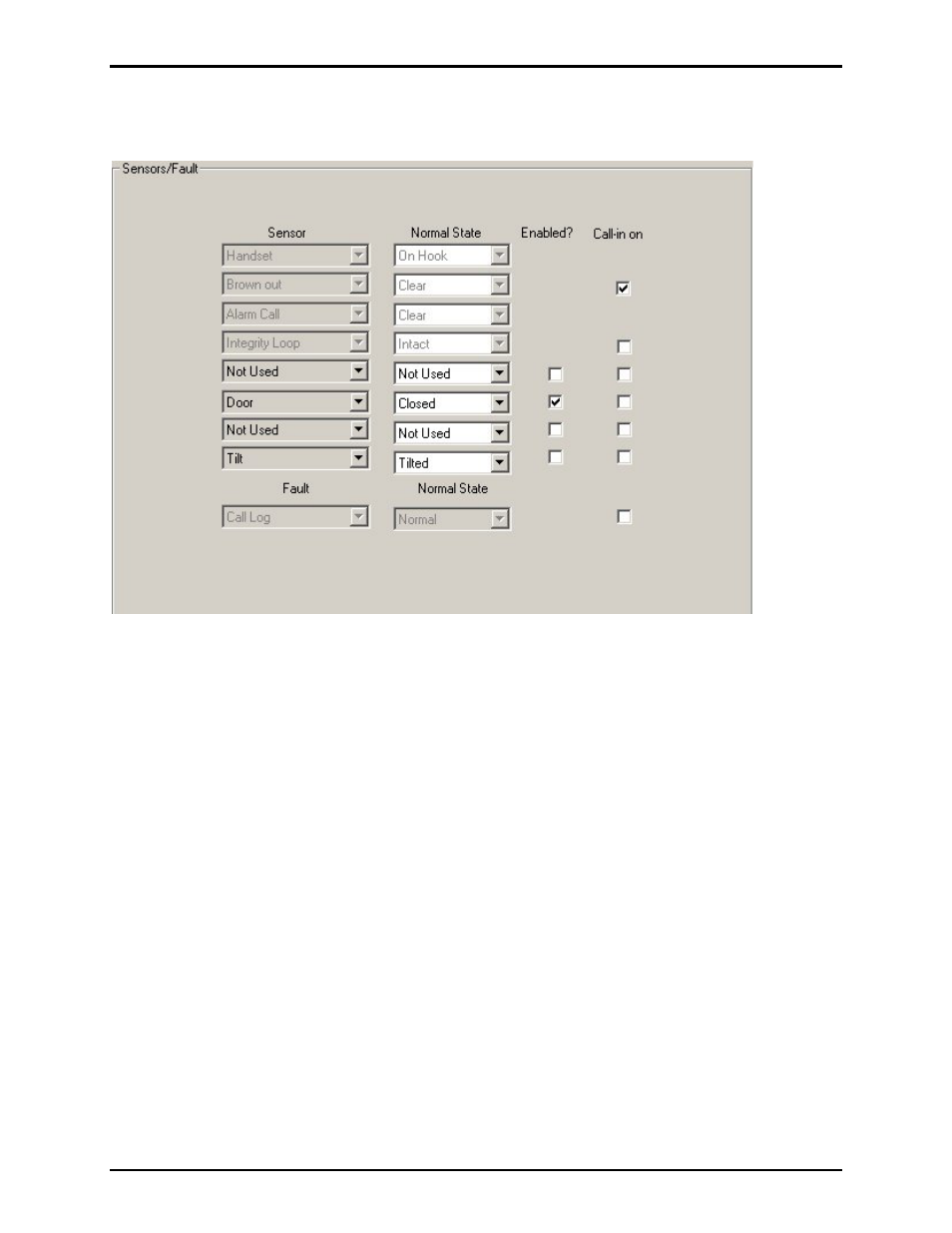

The Sensor/Faults tab on the Phone Properties sheet is shown below.
Sensor/Fault Configuration Properties
Sensor A sensor is a device that returns normal or fault state. For those sensors that can be renamed,
click the drop down box for a list of choices of types of sensors. Some of the choices are: AUXn, Not
Used, Door, Power Supply, Keyswitch, and Battery.
Normal State This is the condition that is normal for the sensor. Each sensor has two states that may be
selected as the normal condition. The choices for each type of sensor are:
Door The choices are Open or Closed.
Power Supply The choices are On and Off.
Keyswitch The choices are Enabled and Disabled.
Battery The choices are Normal and Low.
Tilt The choices are Normal and Tilted.
Not Used Unused sensor.
Fault Each phone can check for faults. The state of these fault indicators is recorded in the TMA
database during each scheduled maintenance call, and is detailed on the Exceptions reports, the Call-in
report, and the Maintenance Call report.
The fault type Call Log reports if the call log is full or not full (normal). The condition is set to normal
state. A phone reporting the opposite condition will appear on an Exception report if the proper criteria is
selected.
