222
Setting Up Rooms
Configuring Displays

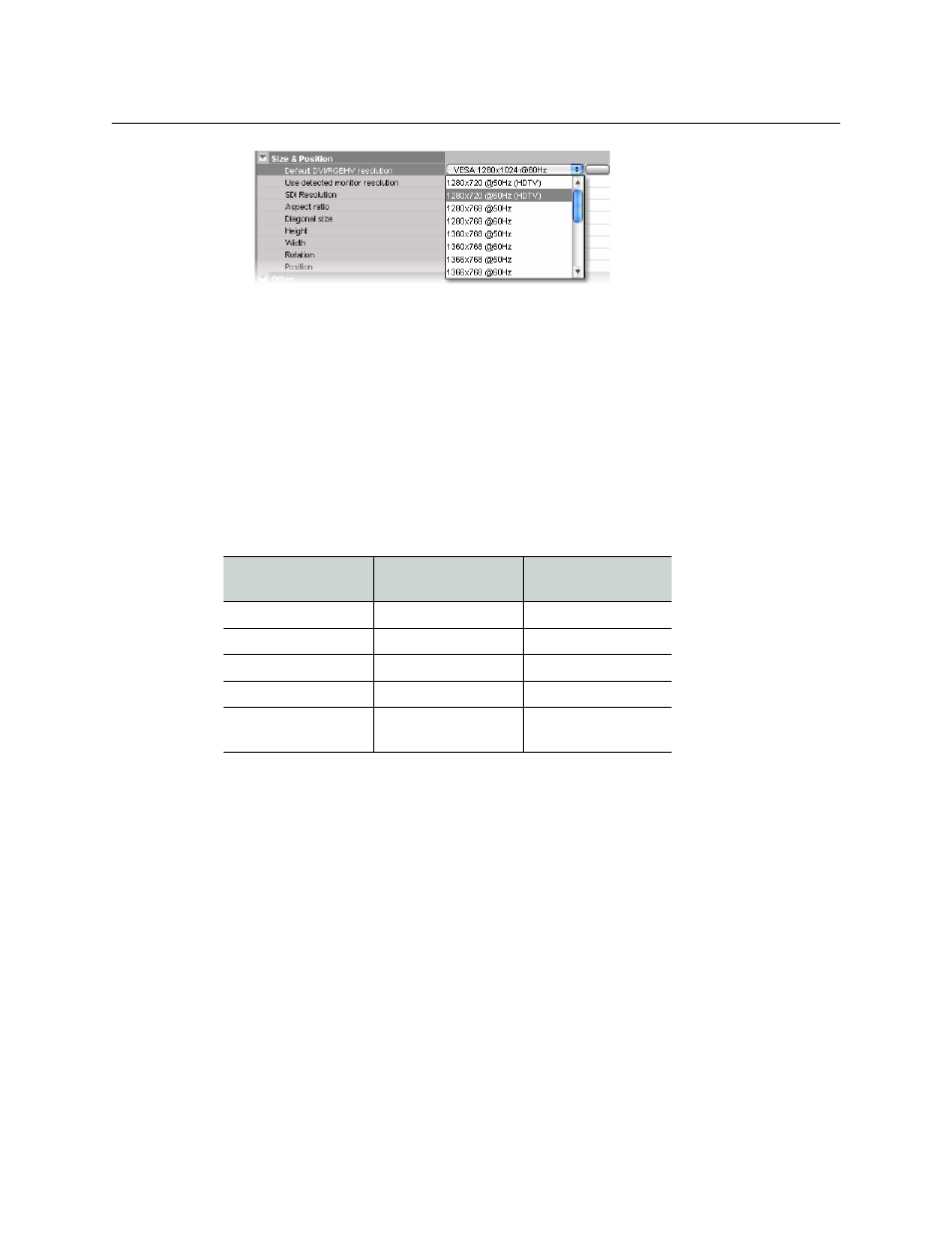

3 Select the appropriate resolution from the list.
4 On the File menu, click Save.
Configuring the HD-SDI Monitoring Output Format
The HD-SDI output format on a given head depends on the resolution configured for the
corresponding multiviewer output (see
Changing Room Display Resolutions on page 221),
and, in the case of a 1080-line resolution, on the selected scan format (interlaced,
progressive) for this output head. In addition, EDID auto-detection must be disabled
(see
Enabling EDID Auto-Detection in XEdit on page 216). The following multiviewer
output resolutions are supported: 1920 × 1080 (for an HD-SDI output in the 1080i or 1080p
format) and 1280 × 720 (for an HD-SDI output in the 720p format). Any other DVI/RGBHV
resolution will result in the HD-SDI output being disabled.
To configure the scan format for a 1080-line signal at the SDI monitoring output
1 In the Room area, click the display associated with the multiviewer output head whose
properties you wish to configure.
2 In the Properties pane, verify that the selected default resolution configured for the
monitor wall display is compatible with the desired format as the SDI output for this
head (see table above), and make sure that the Use detected monitor resolution
option is disabled.
3 Click the SDI Resolution box, and then select the appropriate scan format: Progressive,
or Interlaced.
Multiviewer output
resolution HD-SDI output
(interlaced) HD-SDI output
(progressive)
1280 × 720 50Hz No output 720p 50Hz
1280 × 720 59.94Hz No output 720p 59.94Hz
1920 × 1080 50Hz 1080i 50Hz 1080p 50Hz
1920 × 1080 59.94Hz 1080i 59.94Hz 1080p 59.94Hz
Any other HDMI
resolutions No output No output
