244
Creating Layouts
Managing Layouts

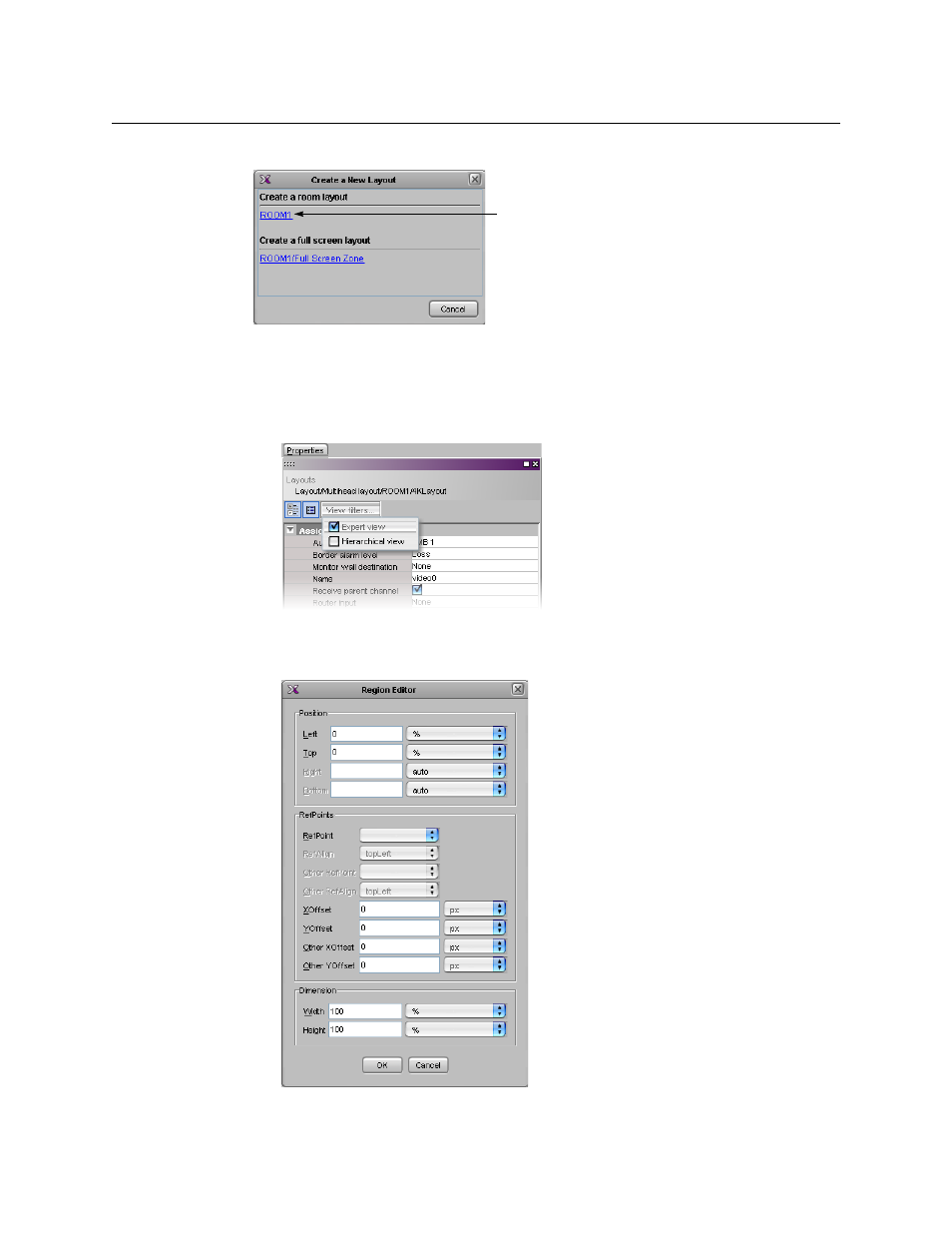

3 Click the name of the 4K UHD room where this layout will be displayed.
An empty layout appears.
4 Add a video monitor to the layout (see Adding Monitors to a Layout on page 247), and
make it span the entire area of one room display, by switching to the expert view:
a Click the View filters button at the top of the Properties pane, and then select the
Expert view check box.
b Open the region editor, and set the monitor’s position to Left = 0, Right = 0, and its
dimensions to Width = 100%, Height = 100% (see Using the Region Editor on
page 314).
c Click OK to close the region editor.
