(see Assigning Timer System Information to Logical Sources on page 398).
3 Assign the appropriate alarm and text levels from logical sources, to layout elements
such as time code monitors, UMDs or alarm monitors (see Configuring Layout Elements
on page 400).
Adding a Timer System to your Multiviewer Configuration
To add an Alpermann+Velte timer system to your multiviewer configuration
1 Open XEdit.
2 Connect to the multiviewer, if you wish to apply your changes in real time
(see Connecting to a Multiviewer on page 76).
3 In the main window, click the System tab, and then click Description/Calibrations on
the second-level tab bar. The main pane displays the System hierarchical list, and the
Tools pane displays the equipment library when the root of the System list is selected.

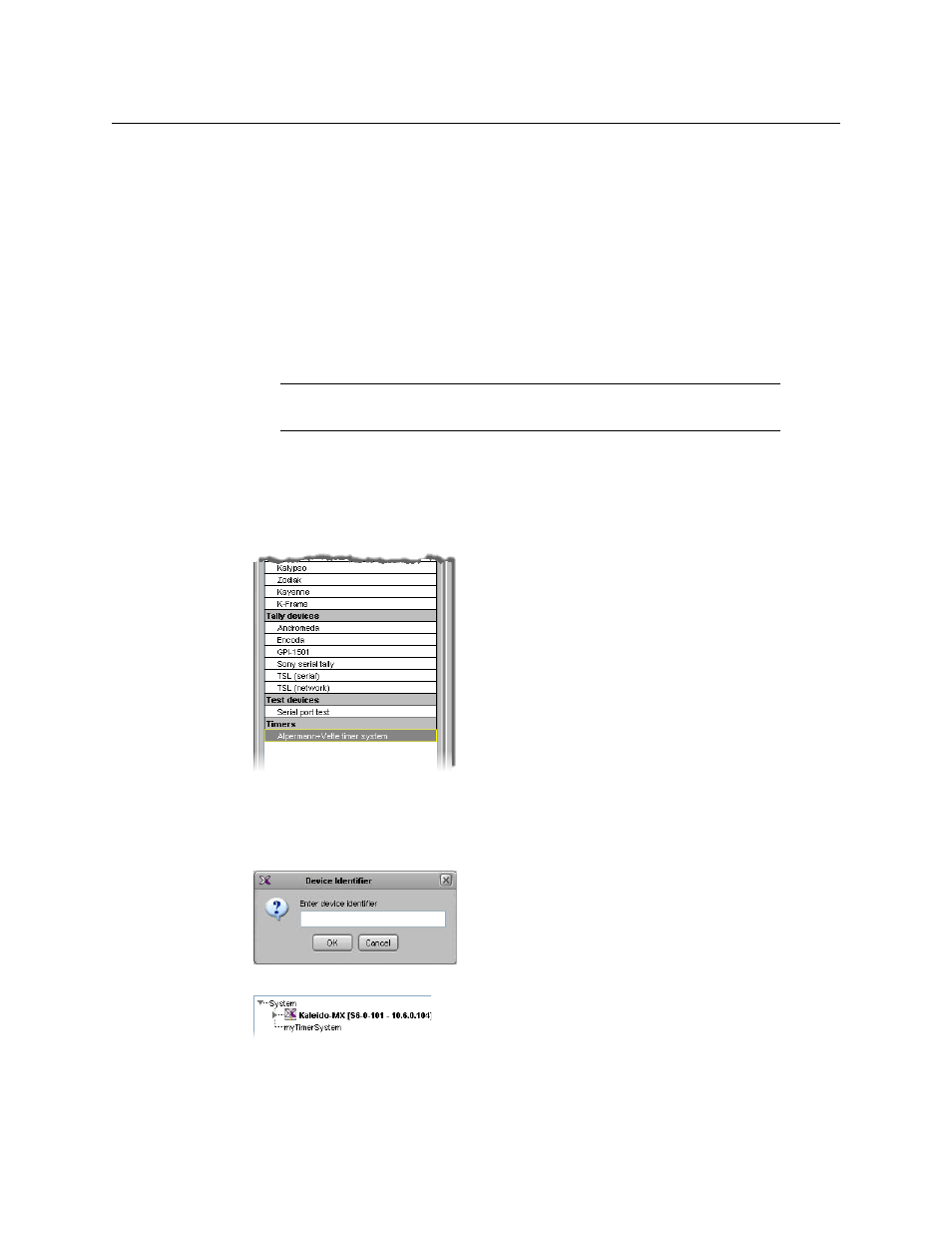

4 Drag the Alpermann+Velte timer system device from the equipment library onto the
root of the System hierarchical list.
Alternatively, right-click the list root, and then click Insert Alpermann+Velte timer
system on the menu.
A window appears, prompting you for a device identifier.
5 In Device Identifier, type a name for the timer system, and then click OK.
The timer system is added to the system list.
6 Click the Interconnects tab.
7 Position the pointer over the multiviewer icon, then click and drag towards the timer
system icon.
Note: If this step is omitted, then you will need to export the database to
apply the changes.
