310
Creating Layouts
Working with Composite Monitors

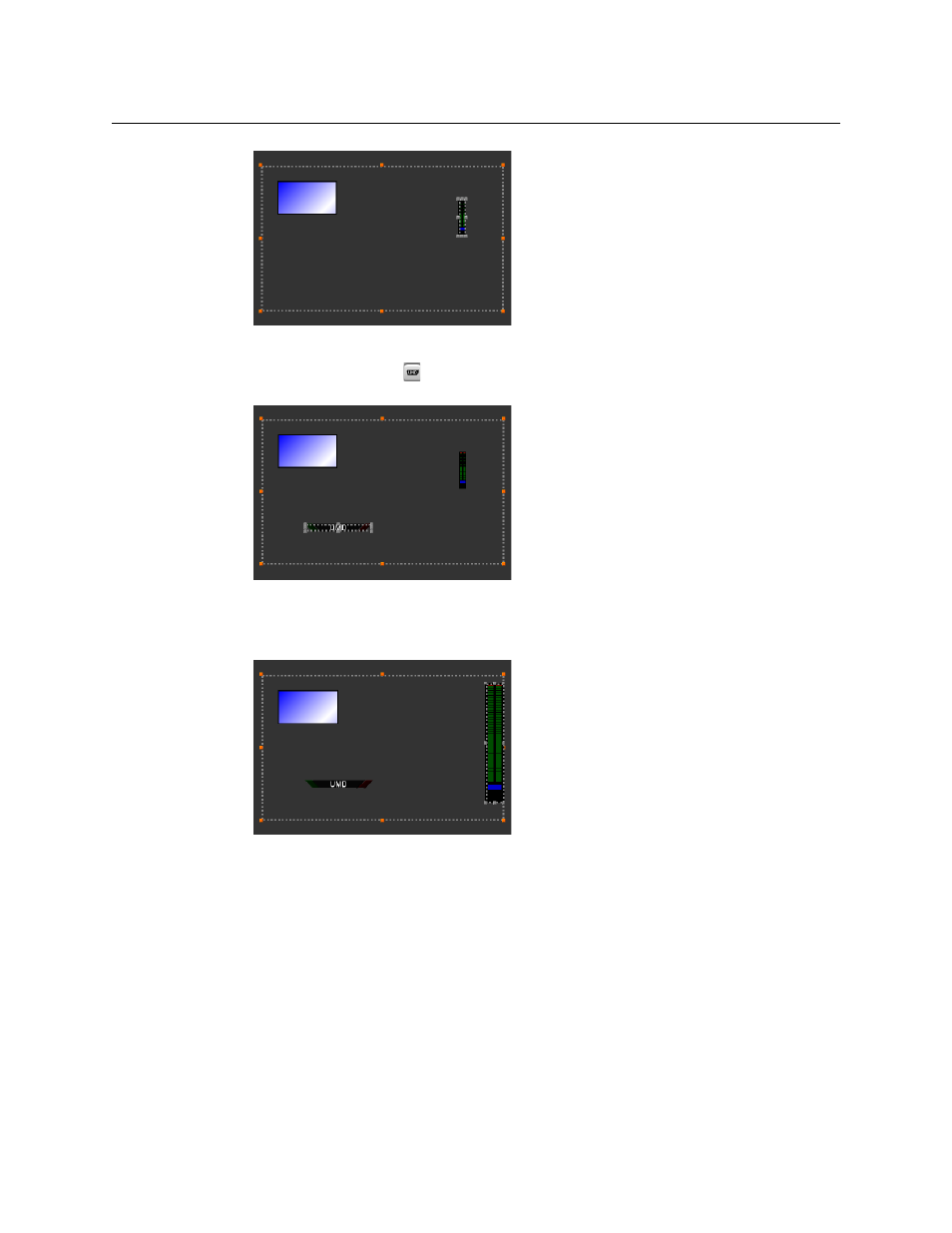

Audio level meter within unlocked composite
6 Click the UMD button on the toolbar, and then click inside the composite to add a
UMD.
UMD within unlocked composite
7 Move the audio level meter to the very edge of the composite, using the mouse and
then finishing with the arrow keys, and resize it as appropriate.
Audio level meter resized and moved to the side
8 Move the UMD to the very bottom of the composite, using the mouse and then finishing
with the arrow keys, and resize it if needed.
