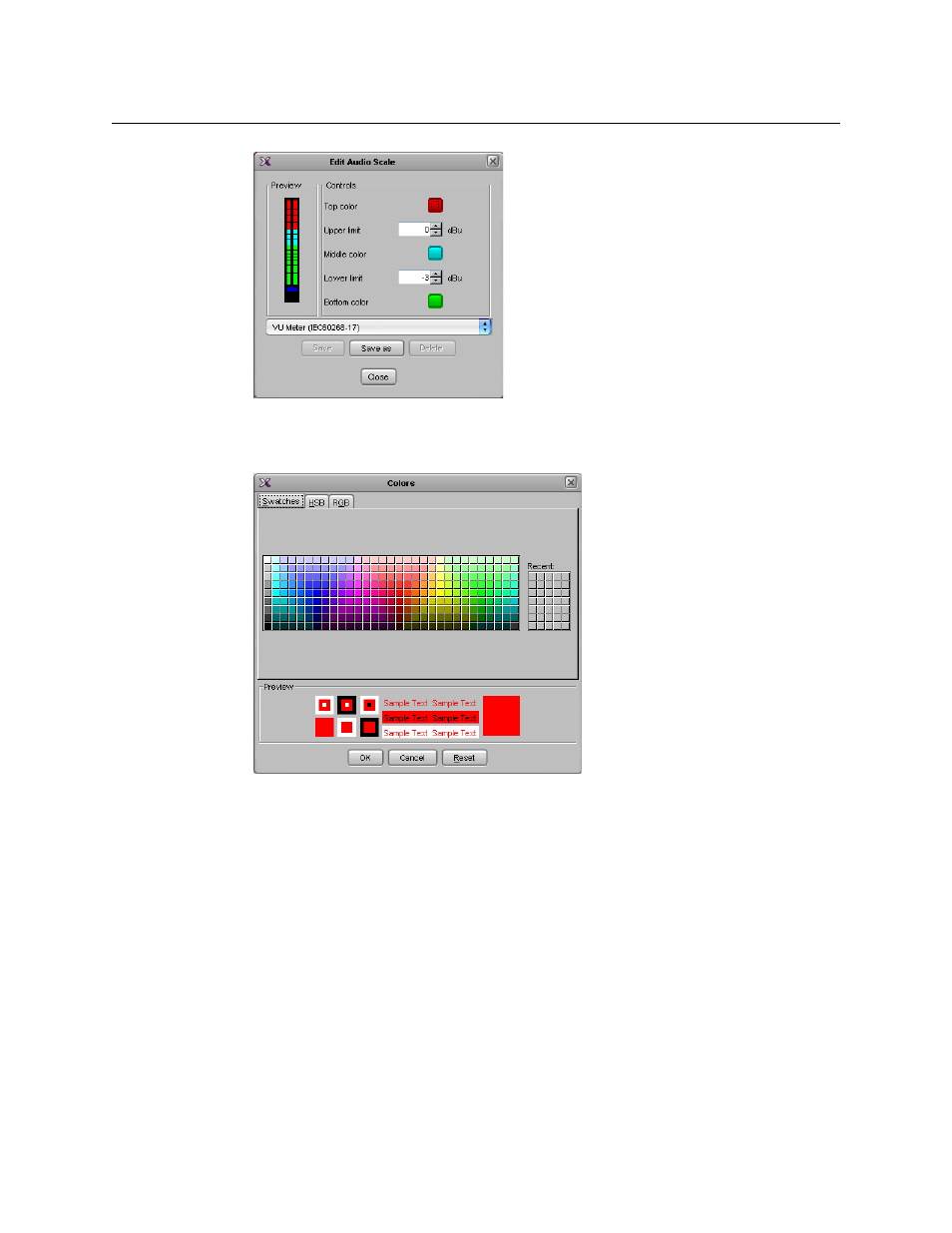

3 Click one of the Top, Middle or Bottom Color buttons to set the top, middle and
bottom color.
The color picker window appears.
4 In Colors, click the tab that corresponds to the color space you wish to use, and then
choose the desired color.
Swatches in the selected color appear under Preview.
5 Click OK to close the color picker window.
Swatches in the selected color appear under Preview.
6 Click OK to close the Choose Background Color window.
In Edit Audio Scale, the corresponding button and the corresponding part of the audio
monitor preview show the selected color.
7 Repeat the procedure until all three colors are set as desired.
8 Enter the audio thresholds in Upper limit and Lower limit.
