9 On the File menu, click Save.
Changes to the sources table are saved.
Configuring layout elements
You can now assign the logical sources you previously configured (see Assigning K-Frame
tallies and input names to logical sources on page 442) to monitors that can display text
(e.g., UMD) or alarms (e.g., UMD, video, text alarm status) in a layout. Depending on your
purposes, you will assign the appropriate text or alarm levels to specific components within
the monitors (e.g., assign an alarm level to tally components in a UMD, or a text level to the
UMD text component).
To configure layout elements for dynamic text and tally reporting
1 Click the Layouts tab, and then open the layout you wish to configure.
2 In the Tools pane, select one of the logical sources you previously configured
(see Assigning K-Frame tallies and input names to logical sources on page 442) from
the filtered Channels/Sources list, and then drag it onto the appropriate monitor.
3 Repeat step 2 until you have assigned all the sources you wish to monitor to the
appropriate monitors in your layout.
4 Click the first UMD whose dynamic text and tally reporting behavior you wish to set,
after unlocking the composite monitor that contains it if applicable (see Unlocking a
Composite Monitor on page 314).
5 In the Properties pane, click the Left tally source level box, and then select the alarm
level you wish to monitor.

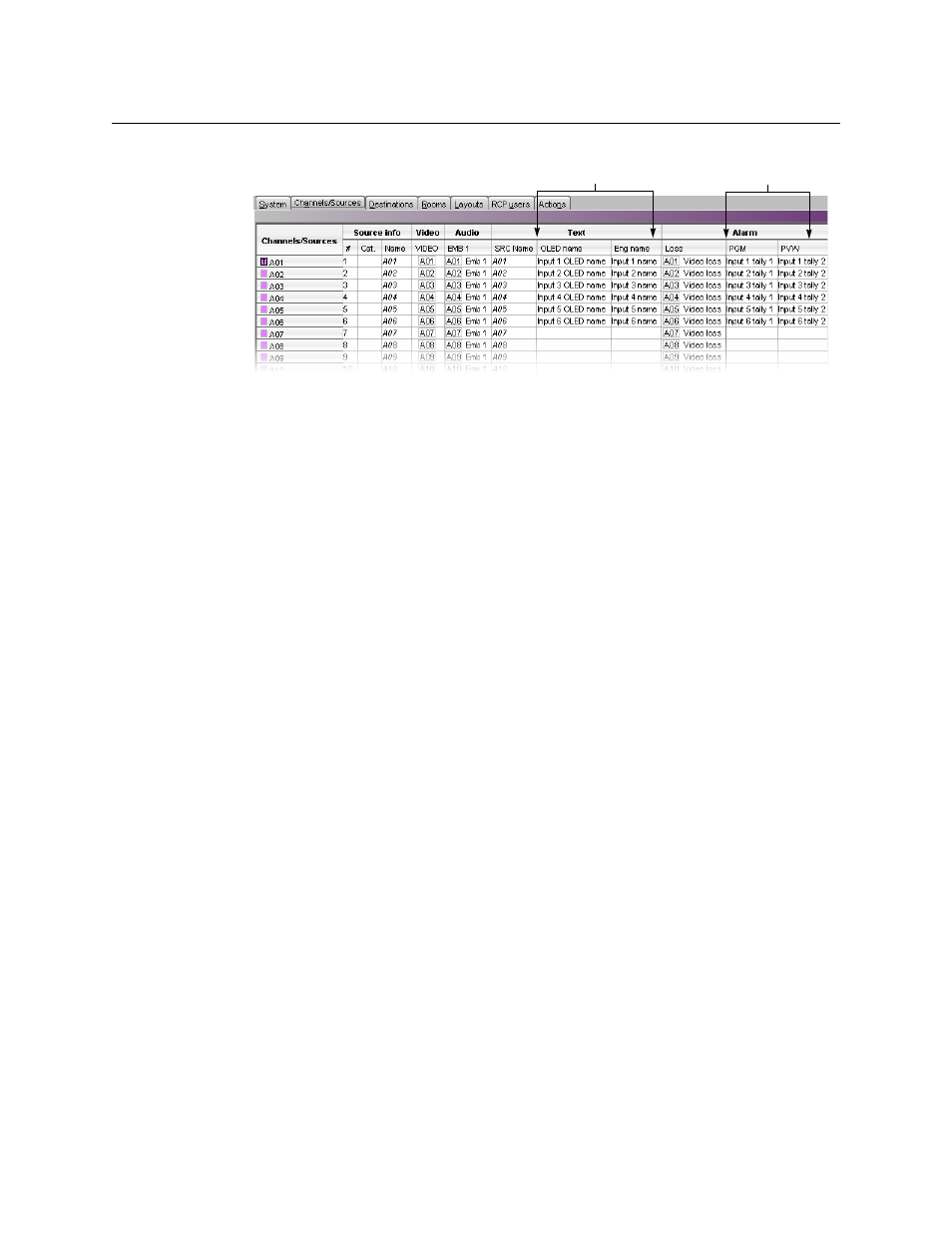

Text levels based on dynamic
K-Frame source labels Alarm levels based on tallies
from the K-Frame switcher
