323
Kaleido-X
User’s Manual
Detailed Directions
Creating Monitor Wall Actions
Monitor wall actions can be assigned to a monitor on a specific layout. Such actions can
only be triggered when that layout is loaded on the monitor wall.
To assign a monitor wall action to a monitor
1 Open the layout that contains the monitor to which you wish to assign an action, or
create a new layout.
2 In the Layouts tab, unlock the appropriate composite monitor if applicable
(see Unlocking a Composite Monitor on page 314), and then click the monitor you wish
to configure.

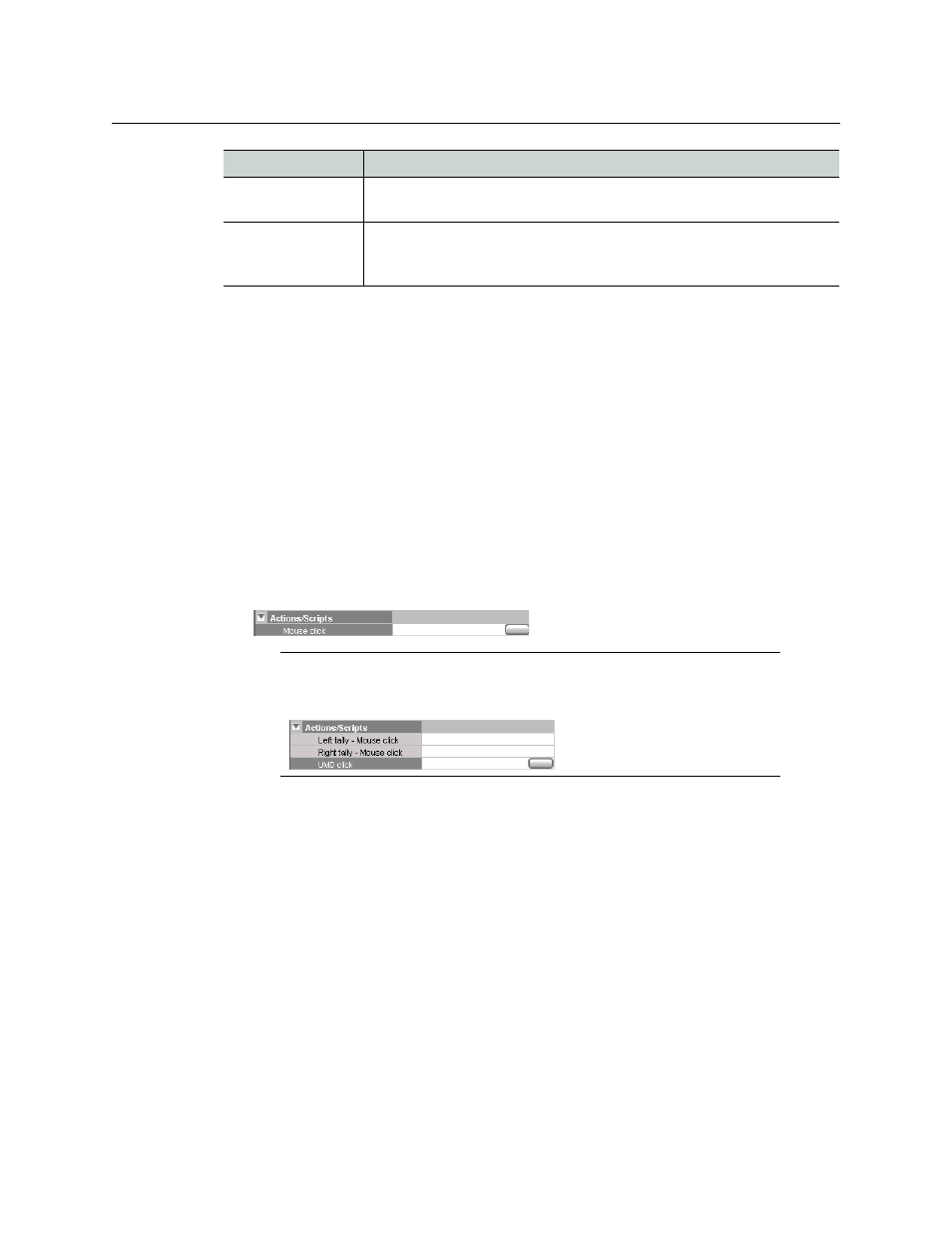

3 In the Properties pane, click the Mouse click box, under Actions/Scripts.
4 Click the button that appeared at the end of the box you clicked.
The Action Editor window appears.
5 In Action Editor, drag the appropriate action item from the Action List pane to the
middle pane under either the Single Click or Double Click tab.
Triggering of GPI
outputs Any multiviewer alarm can be used to trigger a GPI output change.
Gateway Refers to the “Kaleido Remote Control Protocol (Gateway)” interface
supported by Kaleido multiviewers. See the Kaleido Remote Control
Protocol (Gateway) User’s Guide for more information.
Term Description
Note: For a UMD, three action types can be set, and there is a box for each
under Actions/Scripts: Left tally - Mouse click, Right tally - Mouse click, and
UMD click.
