243
Kaleido-X
User’s Manual

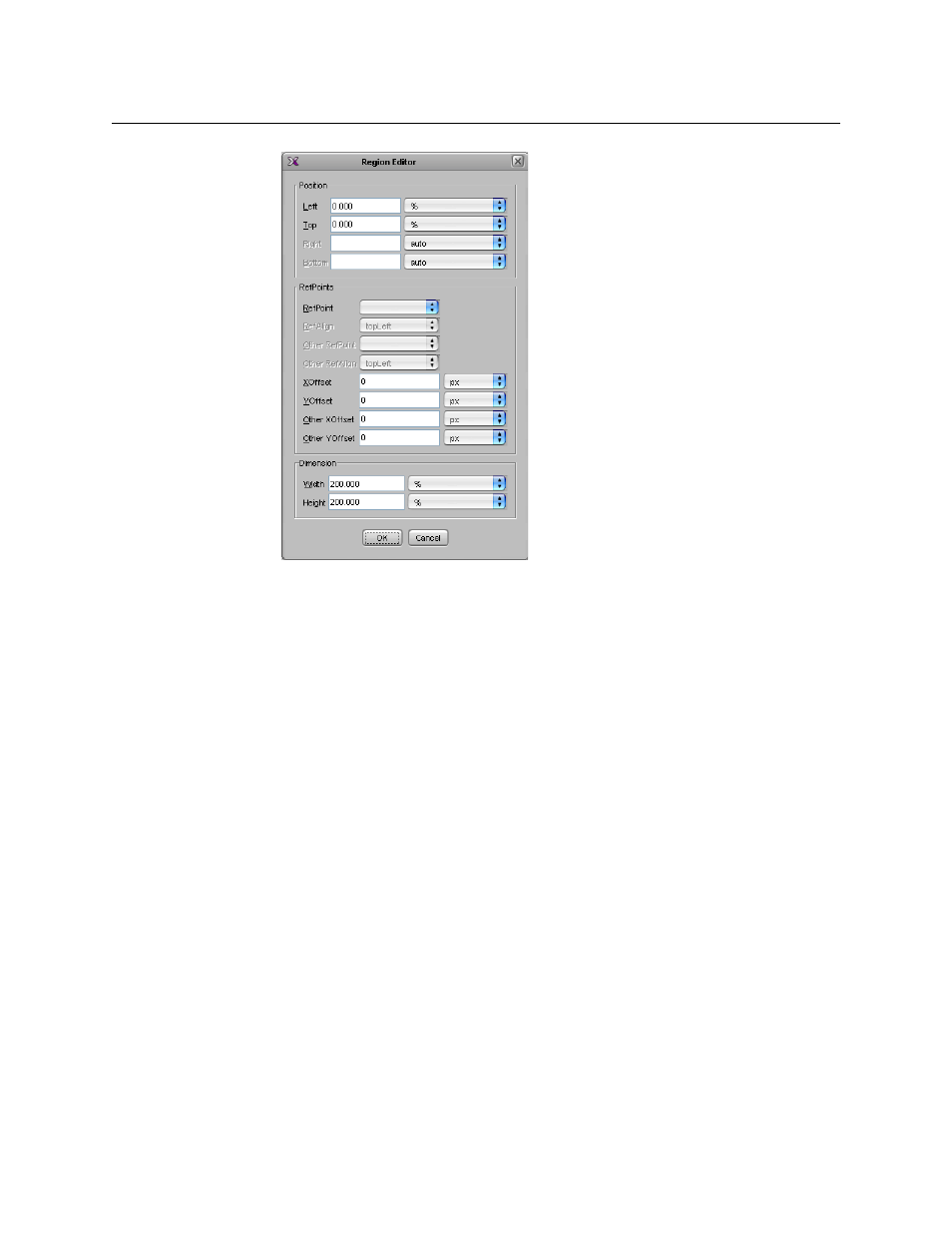

c Click OK to close the region editor.
6 Assign the monitor a logical source (see Assigning Logical Sources or Monitor Wall
Destinations to Monitors on page 250).
7 On the File menu, click Save.
The Save Layout window appears.
8 Type a name for the layout, and then click Save.
Creating Layouts to Monitor 4K UHD Quad Link Sources
This section applies to Kaleido-MX, Kaleido-MX 4K, and Kaleido-Modular-X multiviewers
only. It explains how to create a layout, to monitor a 4K UHD quad link (square division)
source in a 4K UHD room. You must have first created your 4K UHD room (see
Creating a 4K
UHD Room on page 208). If there are two 4K UHD quad link sources connected to your
multiviewer’s inputs, you will need to use a router control application or device configured
with salvos to change the source assignments.
• To configure a layout you might use to monitor an HD source (1080i, 1080p, or 720p)
upscaled to 4K UHD, see Creating 4K UHD Upscale Layouts , on page 241.
• To configure a regular layout, see Creating Room Layouts , on page 240.
• To configure a layout for a full screen zone, see Creating Full Screen Layouts , on
page 245.
To create a layout to monitor a 4K UHD quad link source
1 Click the Layouts tab in the main window.
2 On the File menu, click New.
The Create a New Layout window appears. It lists all the existing rooms and full screen
zones in your system.
