Routers & Kaleido-X
Configuring a Multiviewer’s Internal Router
7 To import labels from a CSV file (i.e. a comma-delimited file such as might be exported
from an Excel spreadsheet), click Import labels, navigate to the CSV file that contains
the labels you wish to import, select it, and then click Open.
Auto map works as described in
Step 3 – Adding Logical Routers

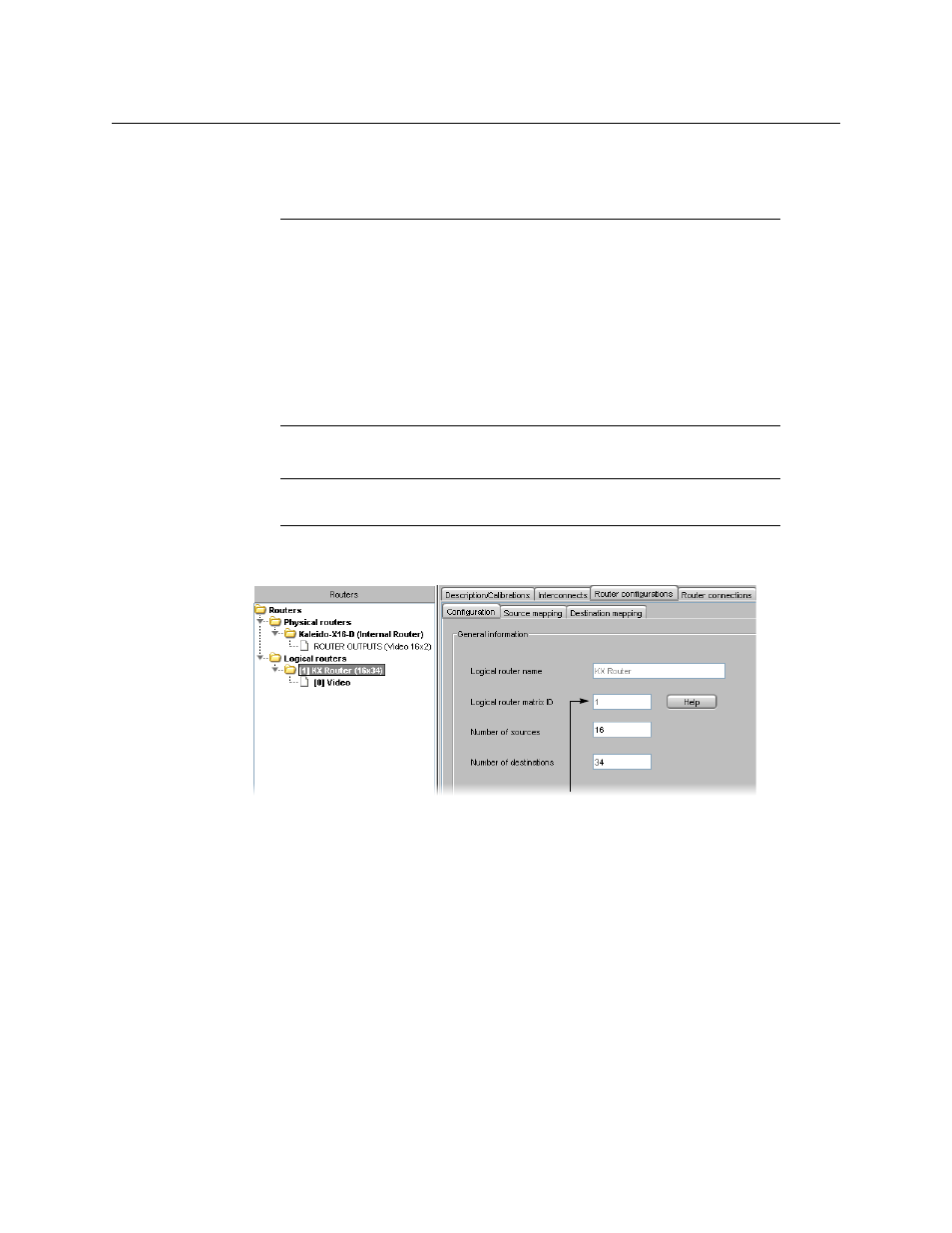

KX Router also has a Logical router matrix ID, which can be used by an external router
control device or application to control the internal router modules.
Configuring the Internal Router in a Kaleido-X (7RU)
To configure a Kaleido-X (7RU) multiviewer’s internal router cards
1 Make sure that the System list reflects your multiviewer’s router card configuration. To
add an internal router card, right-click OPTION A or OPTION B in the System list, and
then click Insert KXO-24Router on the menu.
Note:
The file must be formatted as three columns with no heading row.
Column 1 should contain numbers from 1 to N (the number of sources),
column 2 should contain the source labels, and column 3 should contain the
destination labels. Columns are delimited by commas, without spaces.
Sample label file:
1,VTR 1,OUT 1
2,VTR 2,OUT 2
3,CAM 1,OUT 3
4,CAM 2,OUT 4
5,SAT 1,PGM
6,SAT 2,PVW
Note:
The Get labels from physical level feature is not yet supported for
internal router cards.
Logical router matrix ID
