Creating Layouts
Configuring V-Chip Monitors

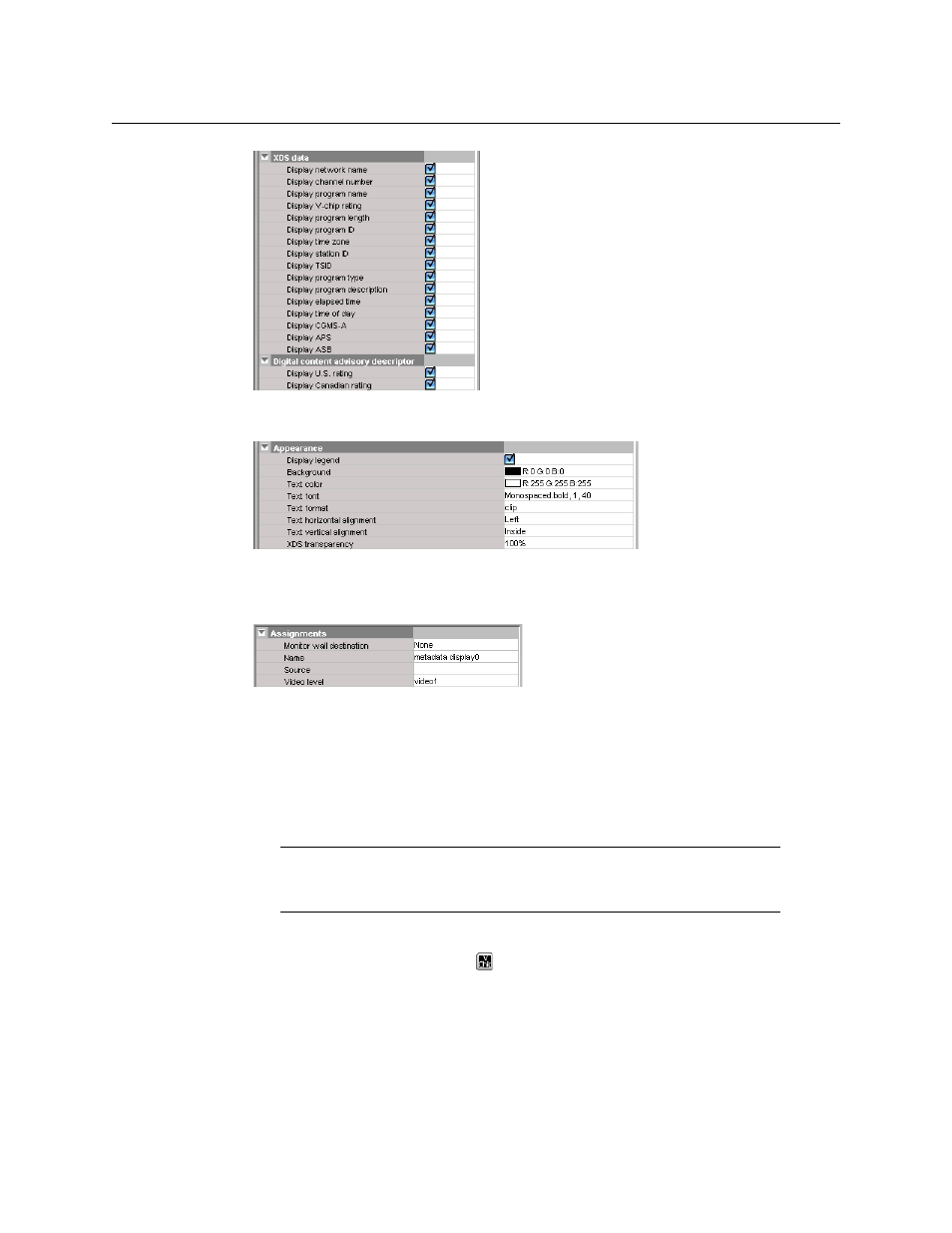

3 You can also set appearance properties, including the font and size of the text labels, or
choose not to display the labels by clearing the Display legend check box.
The selected monitor is updated accordingly on the layout.
4 Make the appropriate assignments (see Assigning Logical Sources or Monitor Wall
Destinations to Monitors on page 250) and select the desired video level, if necessary.
5 Click the Save button on the toolbar.
Configuring V-Chip Monitors
A V-chip monitor provides a visual indication of the V-chip rating from the CC (608)
metadata in an SD video signal, or from the CC (608) legacy caption data when such data is
present within an HD video signal.
To add a V-chip monitor to a layout
1 Click the V-chip monitor button ( ) on the toolbar, click the layout, and then move or
resize the monitor as needed.
You may choose to layer this monitor on top of the video window within a composite.
See
Working with Composite Monitors on page 308, for instructions on how to add
elements to a composite.
Note: Extraction of CC (608) captions and CC (608) legacy captions is
available with the Extraction of CC, Subtitling and XDS metadata option
(CC/XDS).
