284
Creating Layouts
Configuring Timers

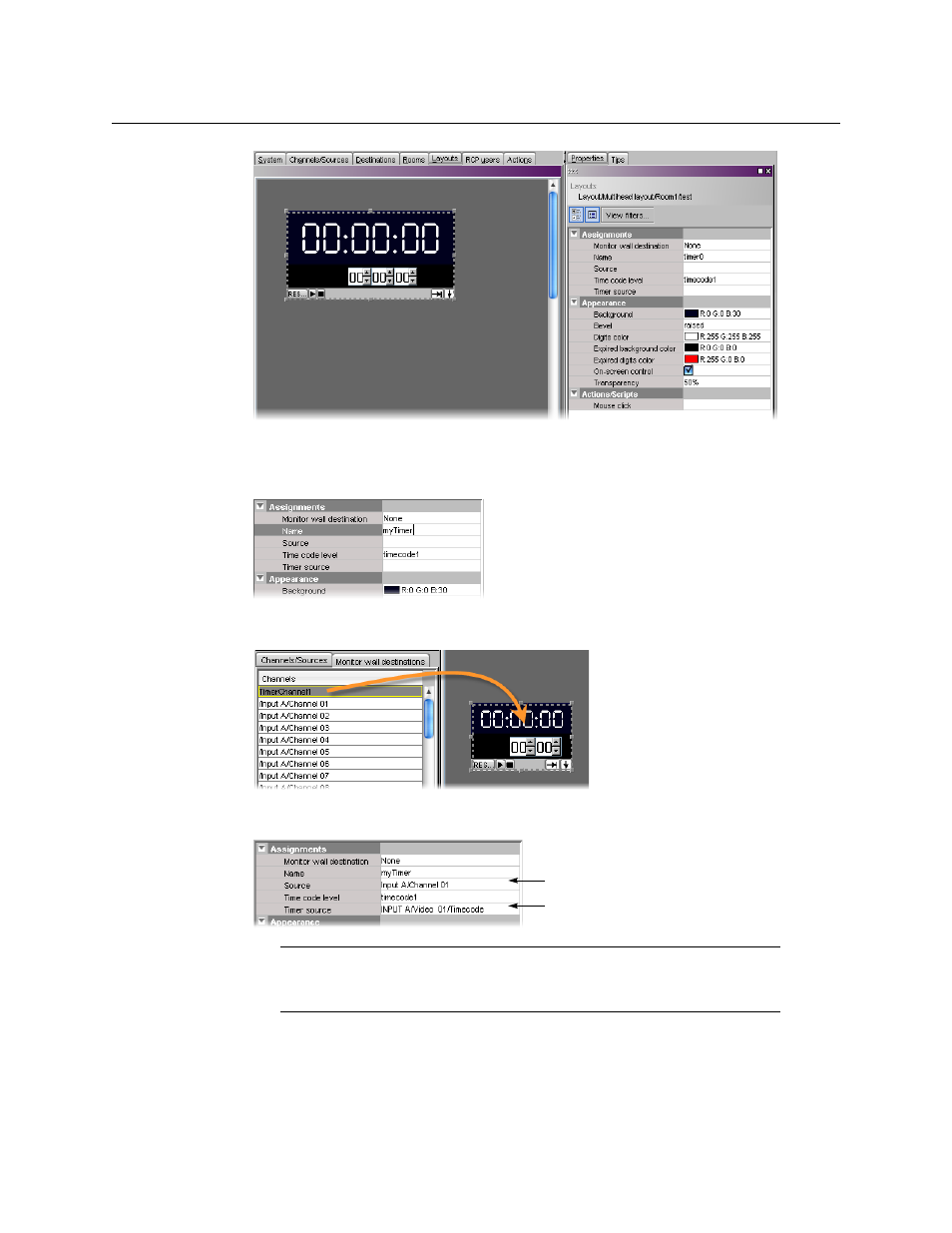

Alternatively, you can drag a timer monitor from the Timers library to the layout.
The timer’s attributes appear in the Properties pane.
3 Replace the default name, by typing a new name in the Name box.
4 If you wish to assign a logical source, drag the appropriate element from the
Channels/Sources list that appears in the Tools pane, to the timer monitor.
The selected logical source’s name appears in the Source box, and the Timer source
box shows the value of the corresponding time code level.
5 Click the button beside Timer source.
Note: The first time code level applies by default. If your system’s logical
sources include more than one time code level, select the one you wish to
apply from the Time code level list.
Assigned logical source name
Time code level value from assigned
logical source
