Tally Interface Devices &Timer Systems
Kayenne Production Switcher
To configure layout elements for dynamic text and tally reporting
1 Click the Layouts tab, and then open the layout you wish to configure.
2 In the Tools pane, select one of the logical sources you previously configured
(see Assigning Kayenne tallies, input names, and output names to logical sources on
page 435) from the filtered Channels/Sources list, and then drag it onto the
appropriate monitor.
3 Repeat step 2 until you have assigned all the sources you wish to monitor to the
appropriate monitors in your layout.
4 Click the first UMD whose dynamic text and tally reporting behavior you wish to set,
after unlocking the composite monitor that contains it if applicable (see Unlocking a
Composite Monitor on page 314).
5 In the Properties pane, click the Left tally source level box, and then select the alarm
level you wish to monitor.

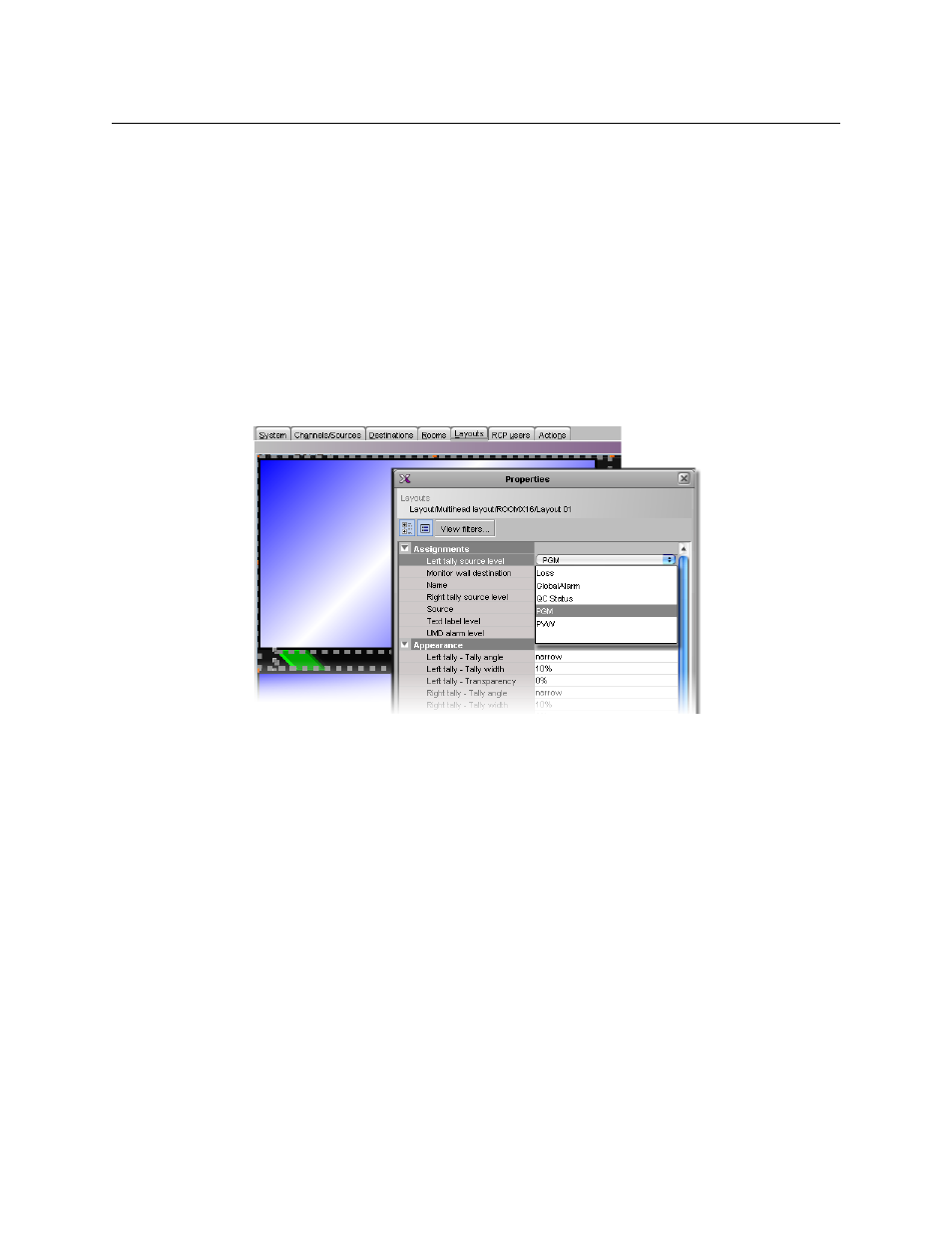

Alarm level selection for the left tally in a UMD
6 Click the Right tally source level box, and then select the appropriate alarm level, if
applicable.
7 Click the Text label level box, and then select the text level you wish to monitor.
