405
Kaleido-X
User’s Manual
• URS: Timestamping will be based on the time information carried in the URS
signal internal to the Densité housing frame. The URS is generated by a
reference module (REF-1801) which must be installed in the frame for the URS
to be available.

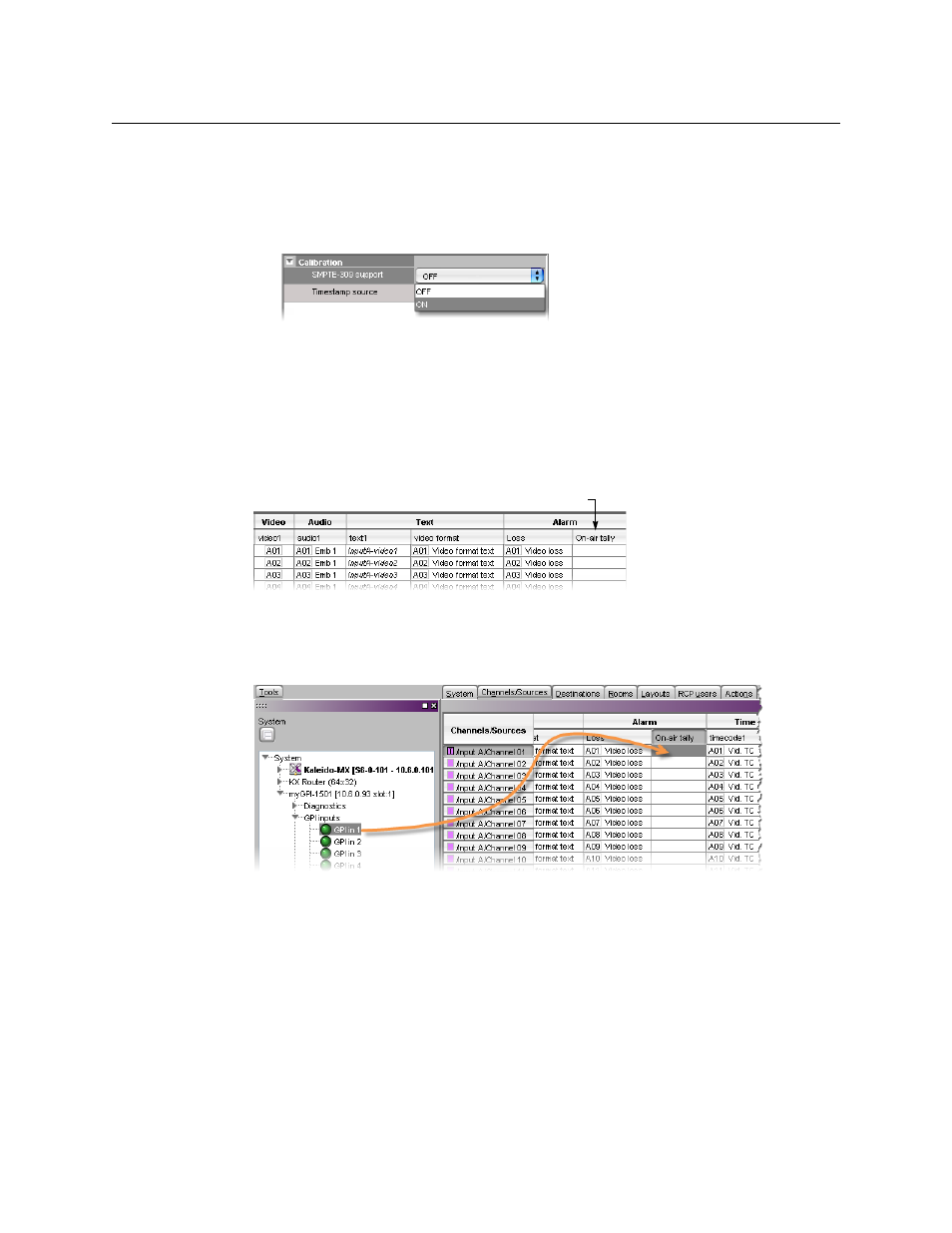

e If you selected LTC, then you may enable SMPTE ST 309 support.
You are now ready to add information from the GPI-1501 to logical sources.
Assigning GPI Status Information to Logical Sources
To configure your logical sources
1 In the Channels/Sources tab, add the required number of alarm levels for your
purposes (see Creating and Configuring Logical Sources on page 190). For example,
you might add one alarm level named On-air tally.
2 Click a cell that corresponds to the appropriate alarm level of a logical source you wish
to configure.
3 In the filtered System list, navigate to the GPI element you wish to monitor, and drag it
onto the selected cell.
4 If your logical sources include more alarm levels to be associated with the GPI-1501,
then repeat step 2 and step 3 for the current logical source’s remaining alarm levels.
5 Make corresponding assignments to other logical sources by incremental copy, if
desired (see Making Further Assignments by Incremental Copy on page 201).
New alarm level
