Creating Layouts
Working with Composite Monitors
The image is imported into the database.

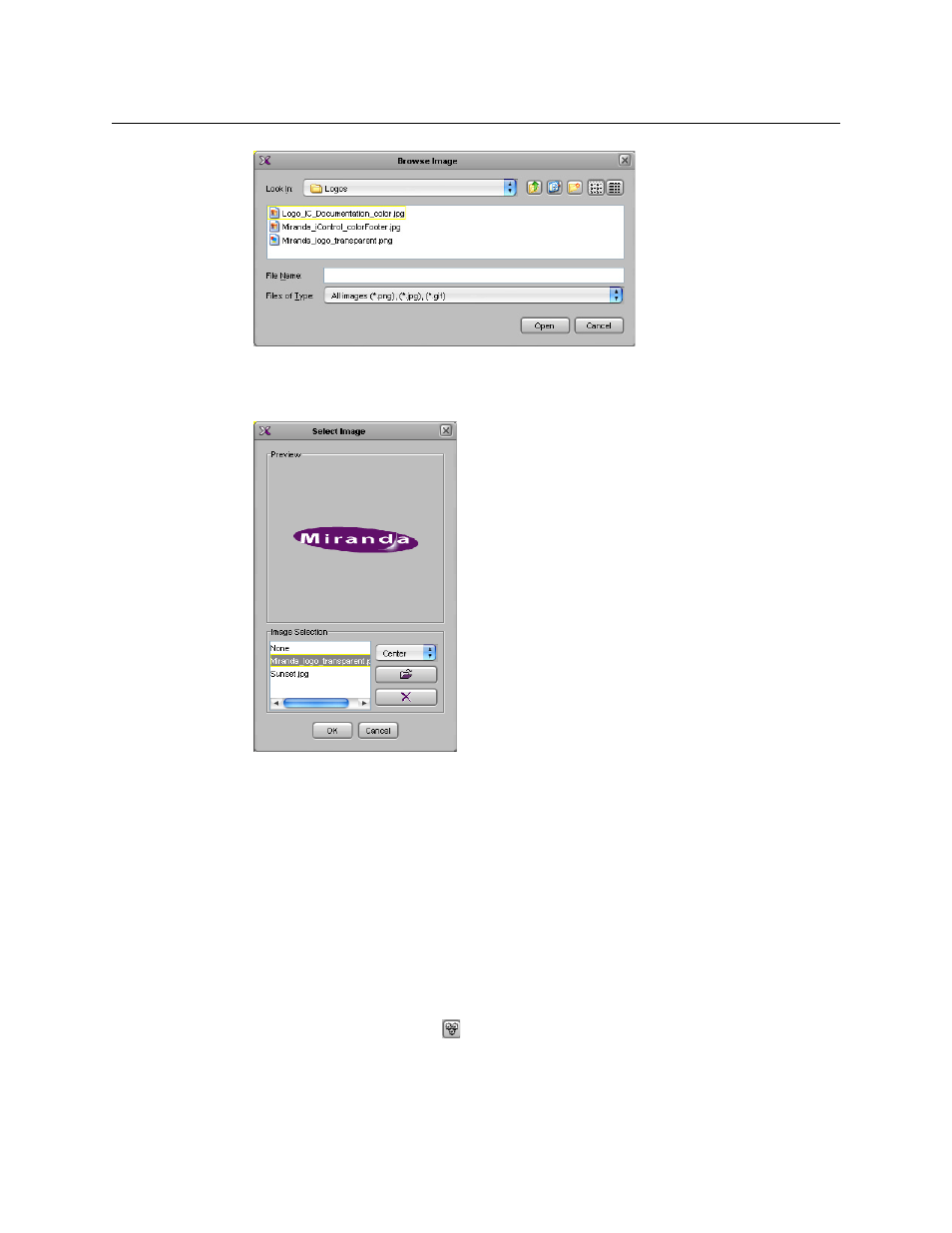

4 In Select image, select the logo you wish to use from the Image selection list, and then
click OK.
The logo appears on the clock background.
Working with Composite Monitors
Creating a Composite Monitor
Composite monitors encapsulate a number of primary elements (e.g., a video monitor, one
or two audio monitors, a UMD, and a time code) that can then be managed as a single
object. The following example outlines the basic rules to follow, in order to create
composite monitors that can be resized elegantly.
To create a composite monitor
1 Open an existing layout or create a new one.
2 Click the Composite button on the toolbar, and then click the layout. Resize the
empty composite box approximately, to a size that will be appropriate for the display
where it is to appear.
