452
Tally Interface Devices &Timer Systems
Zodiak Production Switcher
7 If your logical sources include more alarm levels to be associated with the Zodiak
switcher, then repeat step 5 – step 6 for the current logical source’s remaining alarm
levels.
8 Make corresponding assignments to other logical sources by incremental copy, if
desired (see Making Further Assignments by Incremental Copy , on page 201).
9 On the File menu, click Save.
Changes to the sources table are saved.
Configuring layout elements
You can now assign the logical sources you previously configured to monitors that can
display text (e.g., UMD) or alarms (e.g., UMD, video, text alarm status) in a layout. Depending
on your purposes, you will assign the appropriate text or alarm levels to specific
components within the monitors (e.g., assign an alarm level to tally components in a UMD,
or a text level to the UMD text component).
To configure layout elements for dynamic text and tally reporting
1 Click the Layouts tab, and then open the layout you wish to configure.
2 In the Tools pane, select one of the logical sources you previously configured
(see Assigning Zodiak tallies, input names, and output names to logical sources on
page 450) from the filtered Channels/Sources list, and then drag it onto the
appropriate monitor.
3 Repeat step 2 until you have assigned all the sources you wish to monitor to the
appropriate monitors in your layout.

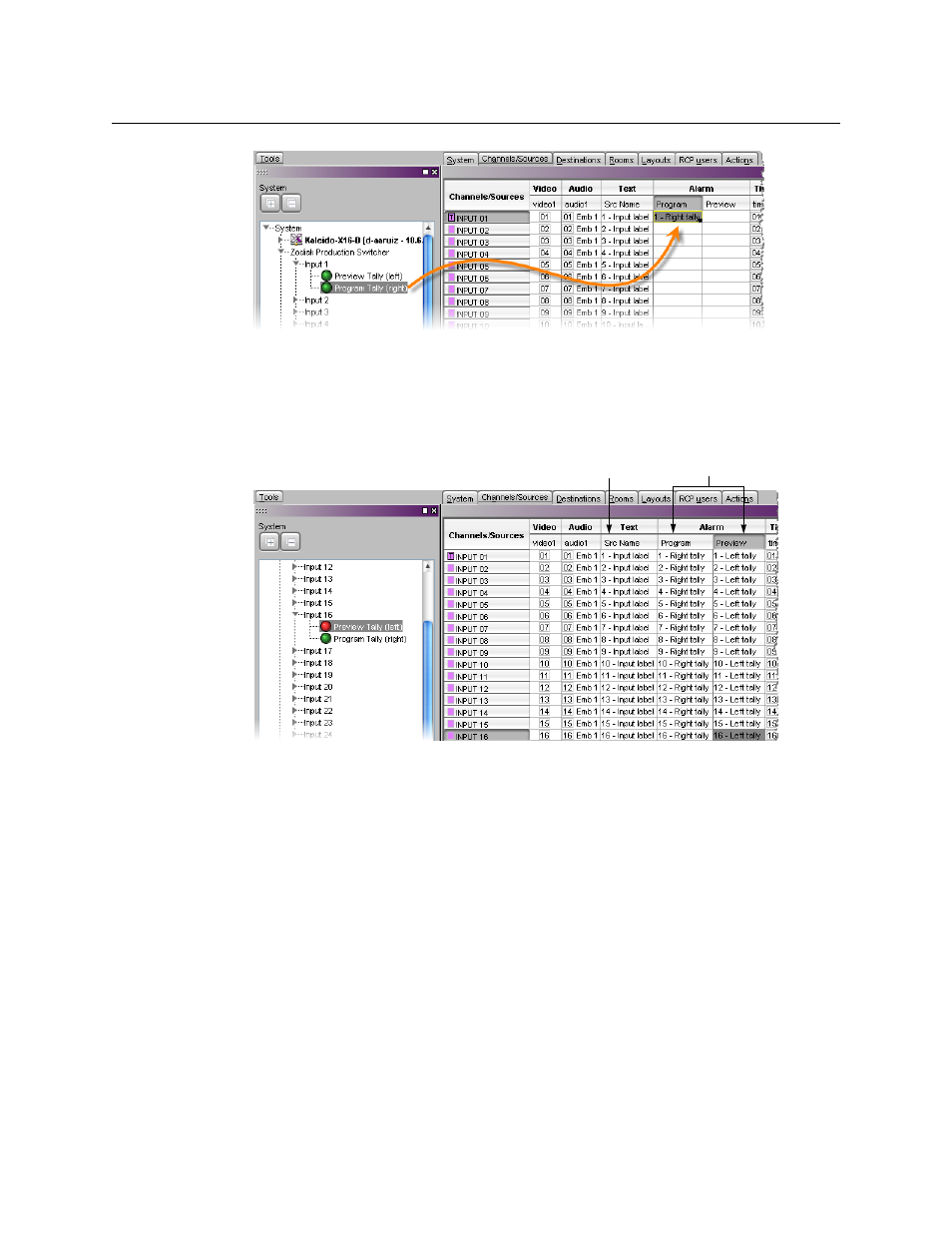

Text level based on dynamic
labels from Zodiak sources Alarm levels based on tallies
from the Zodiak device
