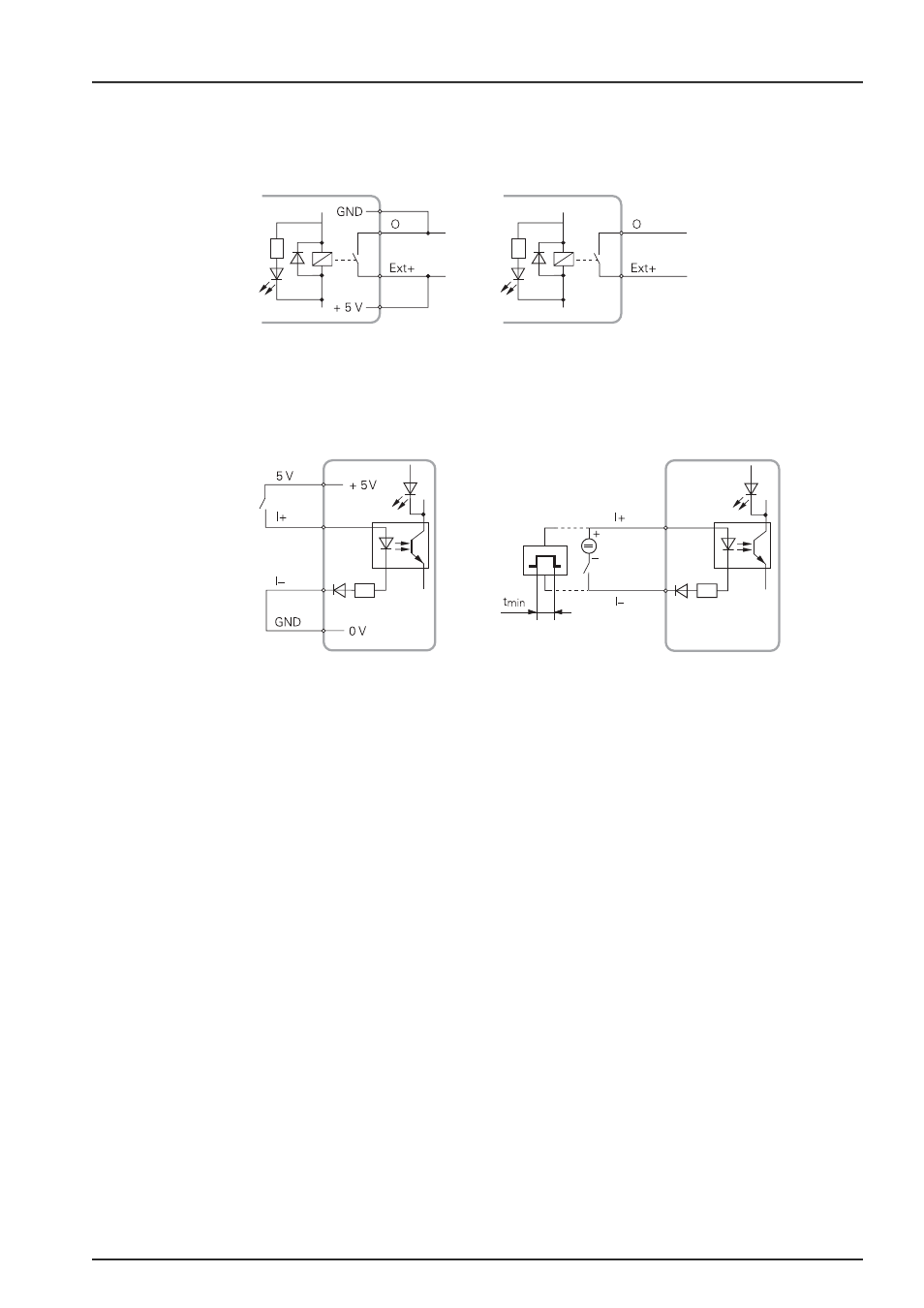

Technical specifications

Switching inputs

170

Operating Instructions

14.6

Relay outputs

Specifications
U

L

≤ 30 V DC/AC

I

L

≤ 0.05 A

t

D

≤ 25 ms

Internal DC 5 V

External power

14.7

Switching inputs

Specifications
0 V

≤ U

L

≤ 1.5 V

4.5 V

≤ U

H

≤ 26 V

I

L

≤ 25 mA

t

min

≥ 100 ms

Internal DC 5 V

External power
