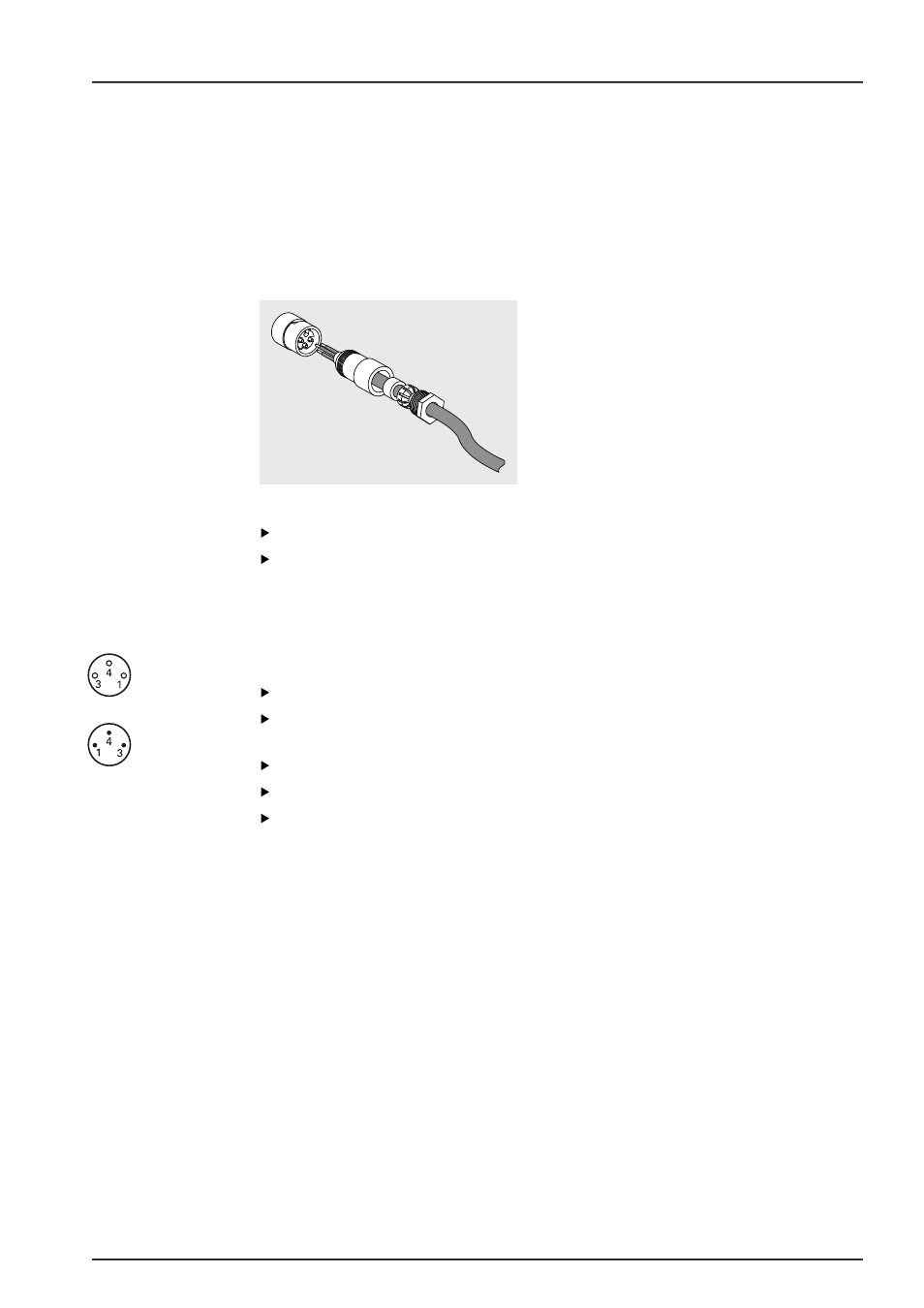

5.2.10 Wiring an M8 connector
MSE 1401
(ID 747507-02) The MSE 1401 (ID 747507-02) includes two M8 male connectors (ID 1071953-01) for
switching inputs and relay outputs. A female M8 connector (ID 1071955-01) is included
for 5 V power output, external power input and GND for use with relay outputs.
Additional connectors can be purchased from HEIDENHAIN. Wire the power connector
based on power requirements. M8 connectors need to be wired to a suitable cable.
Refer to "3-Pin M8 for switching inputs", page 169, "3-Pin M8 for relay outputs",
page 169, "3-Pin M8 for I/O power", page 169, "Switching inputs", page 170, and
"Relay outputs", page 170.
To wire an M8 connector:
Verify that power is off or disconnected.
Wire the connector according to the illustration shown above.
5.2.11 Connecting a cable with an M8 connector
23, 24
25
M8 connectors
Covers are provided for I/O connections. Leave the cover on unused connections.
To connect a cable with an M8 connector:
Verify that power is off or disconnected.
Remove the connector cover by turning counterclockwise using a flat-edge screw
driver.
Align the cable connector with the module connector.
Insert the cable connector into the connector on the front of the module.
Hand tighten the M8 cable connector onto the module.
