PLX8x-MNET-61850 ♦ Communication Gateway
Reference
Modbus TCP/IP to IEC 61850
User Manual
ProSoft Technology, Inc.
Page 173 of 228
May 14, 2014

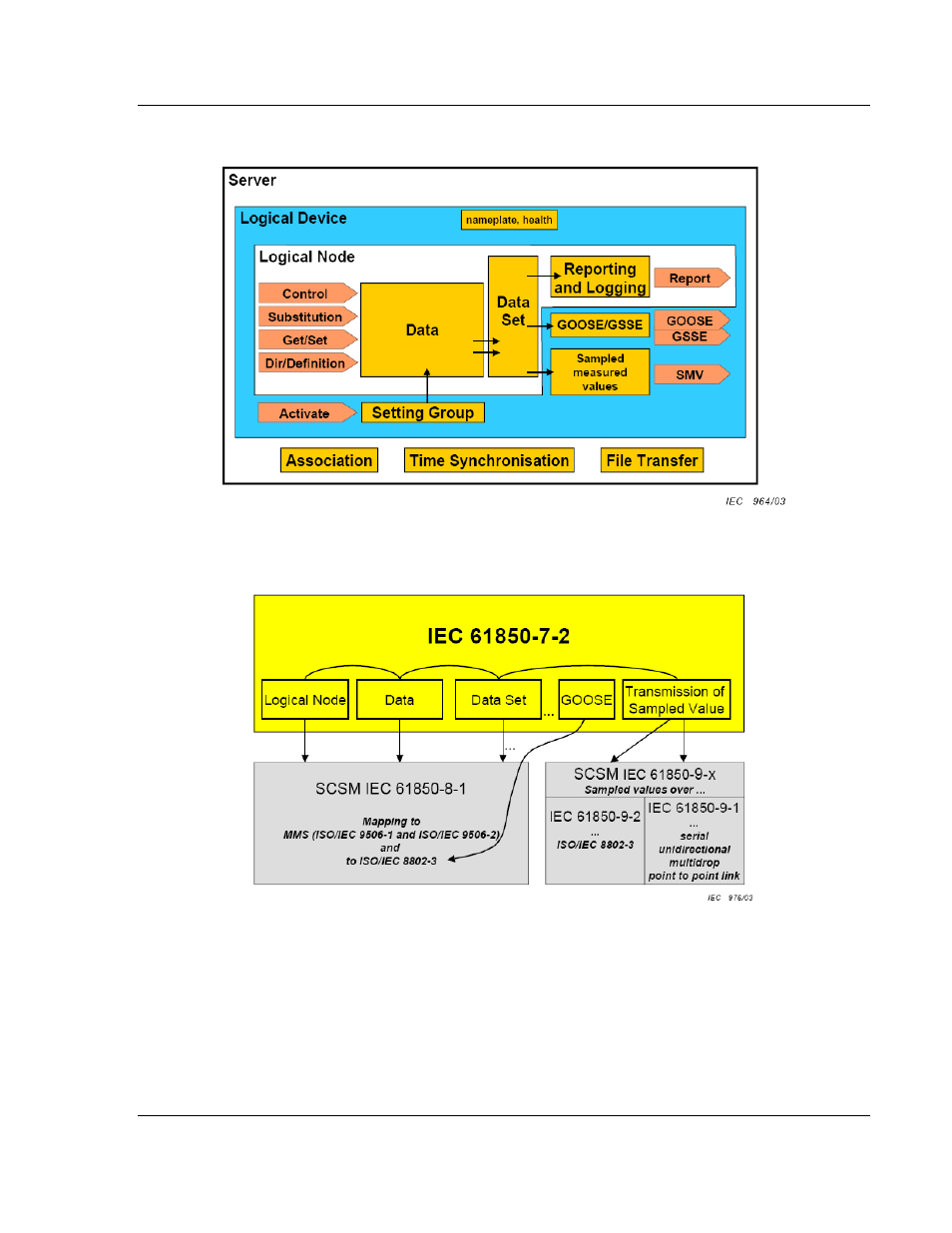

IEC-61850-7-2 Overview Diagram
Information Exchange Diagram
(These diagrams have been taken directly from the IEC 61850 Standard
document)
