Printer views

Identify certain parts of the printer and the control panel.

Printer front view

Printer back view

Interface ports

Control-panel view

Printer front view

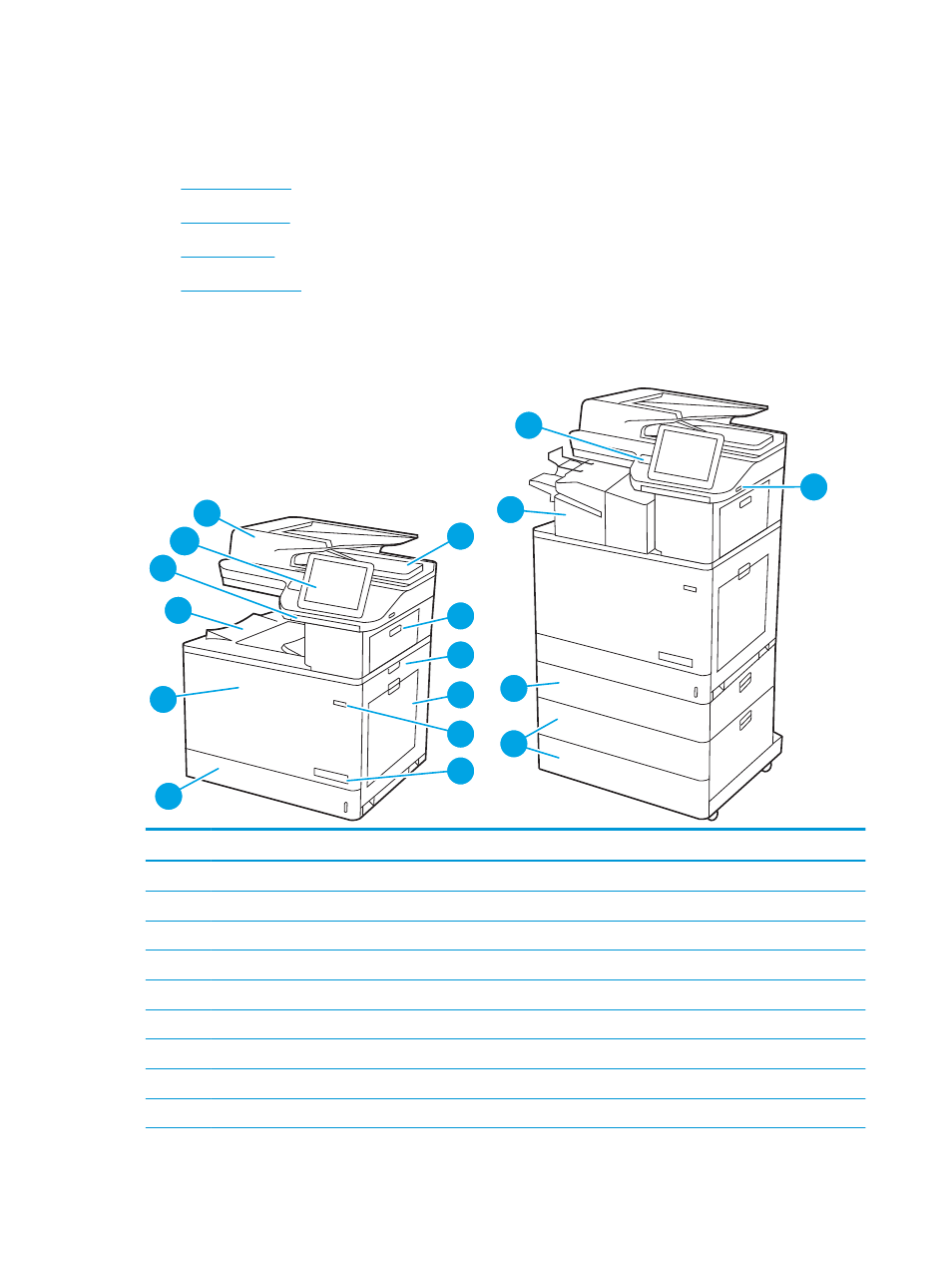

Locate features on the front of the printer.

1

2

11

7

5

3

13

14

8

4

6

10

16

17

9

12

15

Number

Description

1

Retractable keyboard (Flow models)

2

Control panel

3

Document feeder cover

4

Document feeder output bin

5

Upper-right door (access to clear jams)

6

Right door (access to the fuser and to clear jams)

7

Tray 1

8

On/off button

9

Model name

4

Chapter 1 Printer overview
