Defining the Alarm Control Buttons
Each alarm button must be labeled and assigned to an alarm event. Unused buttons should be left with
the Type set to “None.” Buttons with Type selected as “None” are inactive and will not be displayed on
the MapGUI operator screen.

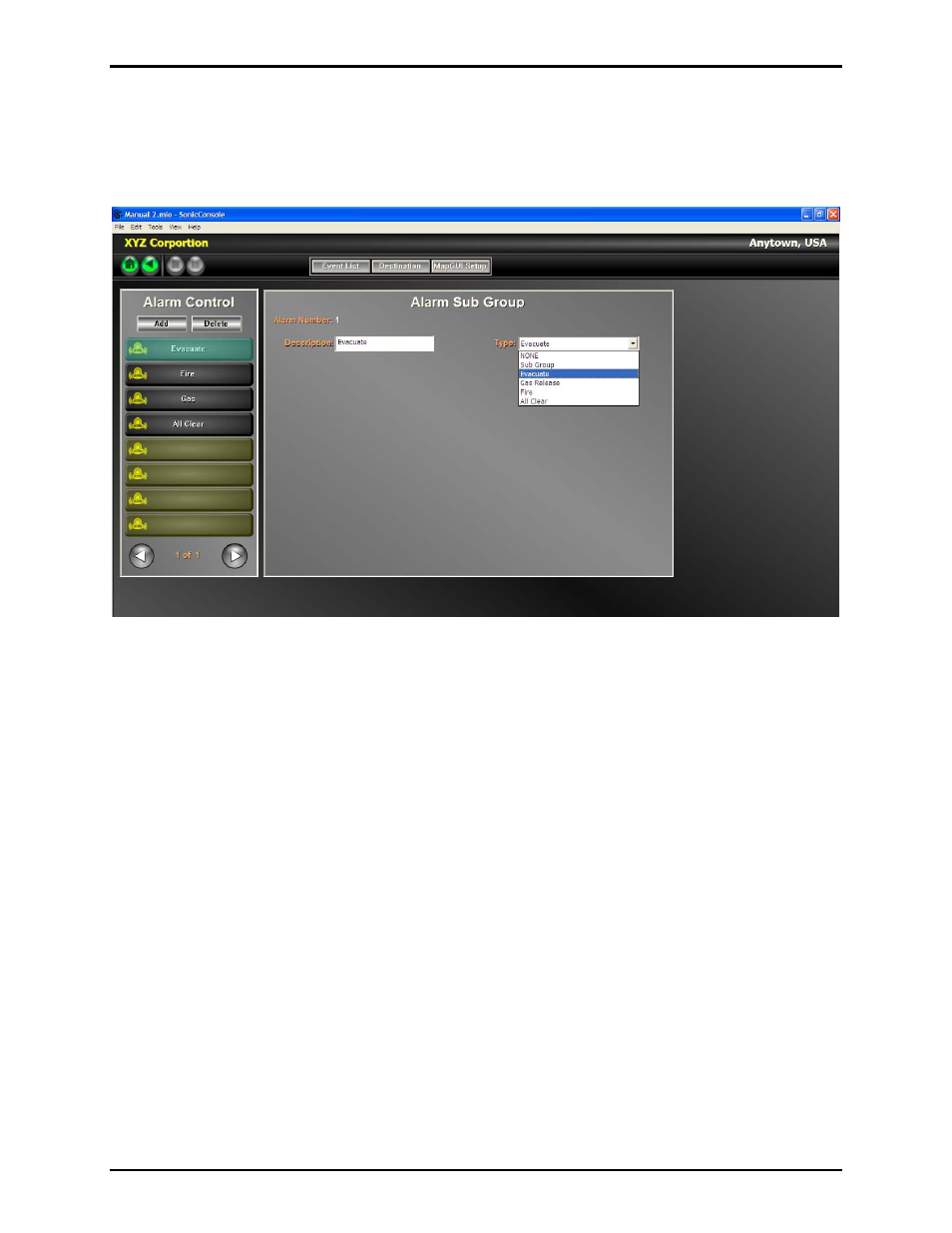

Select an alarm button using the LEFT mouse click.
Description – Enter the button label in the text window. Up to 12 characters can be clearly displayed on
the button. As the description is being entered, it is displayed on the button icon.
Type – Use the pull-down list to select the alarm event that will be assigned to the button.
N
OTE
: The alarm event list must first be created on the Event List screen.
