Map with Selected Areas
This map at below currently has five areas selected for some type of audio event.

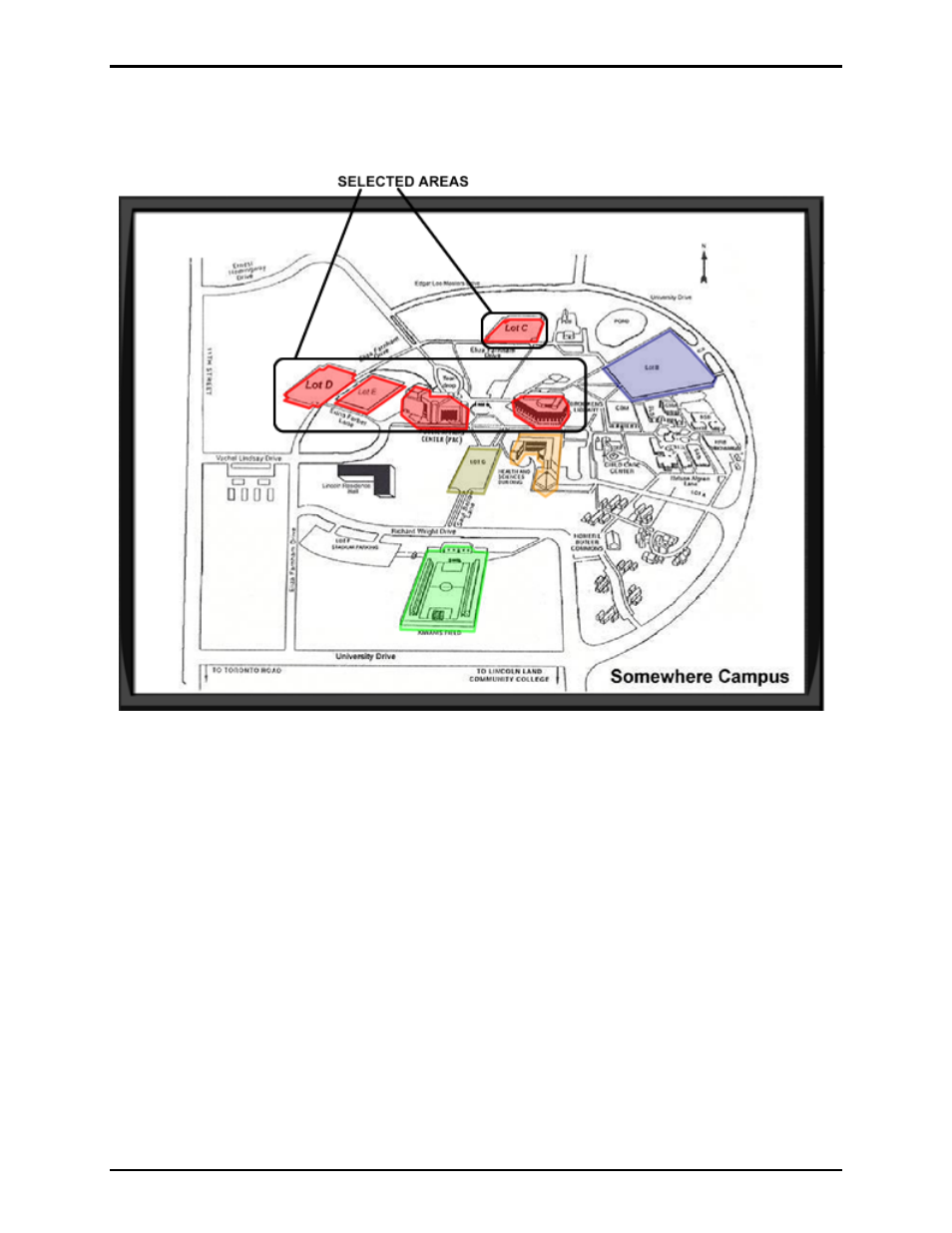

Figure 9. Map With Selected Areas
At this point, alarms or pages can be initiated from the MapGUI client and sent to these selected zones.
The red color is reserved for the selected audio zone color. Anytime you see the color red over an area,
it is currently selected as a destination for the upcoming audio event.
Once a broadcast request is sent, the area selections will clear, and once the broadcast has begun, the
status icons will be displayed over areas currently broadcasting.
