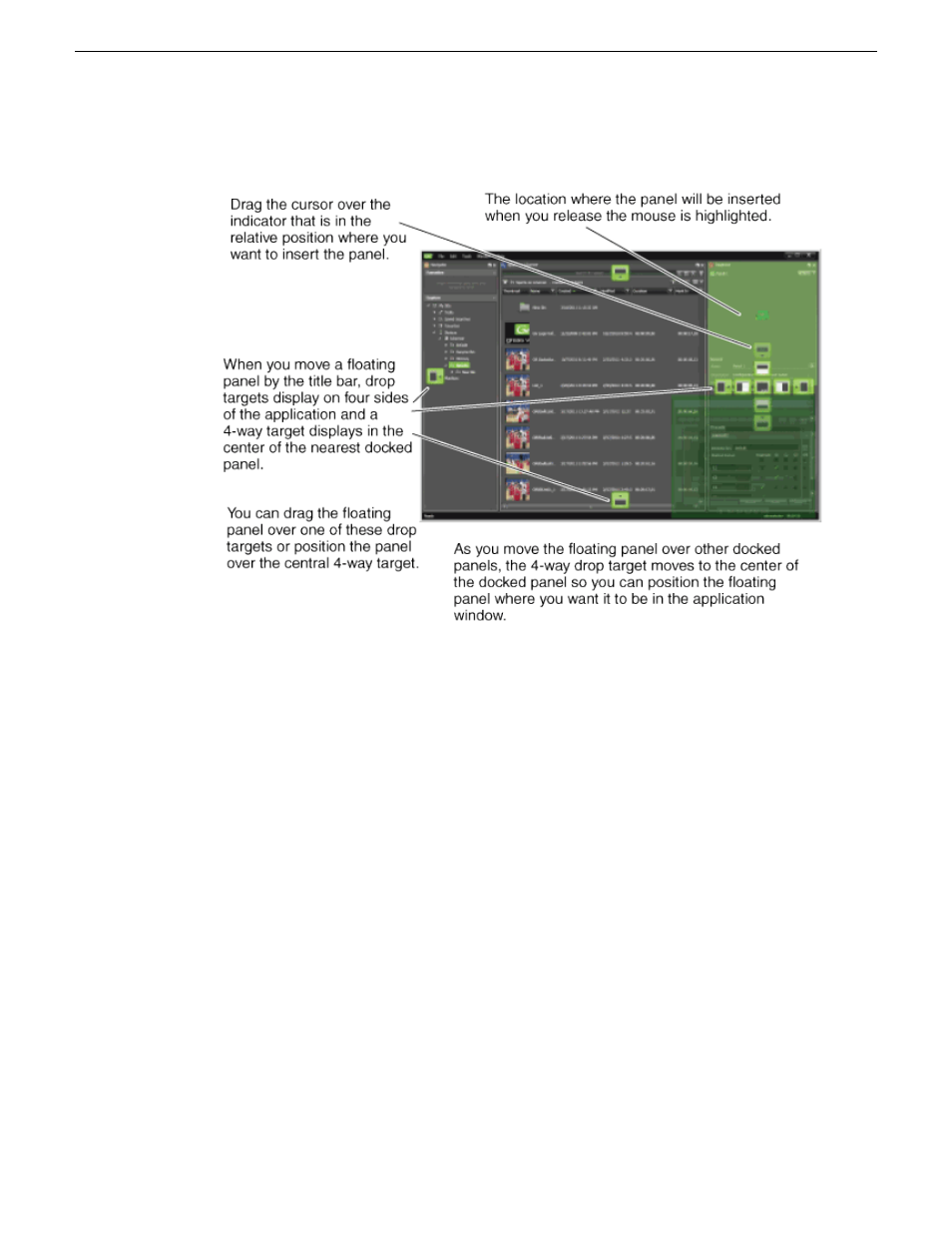

3. Identify the drop target direction arrows that are displayed in the center of the target panel and
on each side of the screen.
4. When the desired drop target appears, press and hold the Shift key to retain drop target positions.
This prevents your drop target from shifting or disappearing as you move the cursor.
5. Move the cursor until it is over the drop target nearest the location where you want the panel
docked, as follows:
• Choose the drop target up, down, right, or left arrows to dock as a fully open panel.
• Choose the indicator in the center of the drop target square that is surrounded by a 4-way
arrow to dock as a tab within the target panel.
A drop preview (a highlighted area) appears.
6. Verify that the drop preview is the location where you want the panel docked.
7. Release the mouse button to dock the panel.
8. Resize the panel as necessary.
Saving an application workspace
Once you have the application workspace, including both docked and undocked panels, arranged
according to your workflow needs, you can save the workspace with a unique name. You can then
load the saved workspace to return automatically to the same arrangement.
1. To save a workspace, click Window | Workspace | Save Workspace .
The Save Workspace dialog box opens.
2014 02 21 GV STRATUS User Manual 271
Configuring the GV STRATUS application
