IP Core Configuration
Slave Controller – IP Core for Altera FPGAs III-47
5.2.5.5 Avalon Configuration
The Avalon PDI connects the IP Core with an Avalon Master (e.g., Altera NIOS). The Avalon PDI uses
memory addressing/dynamic bus sizing.

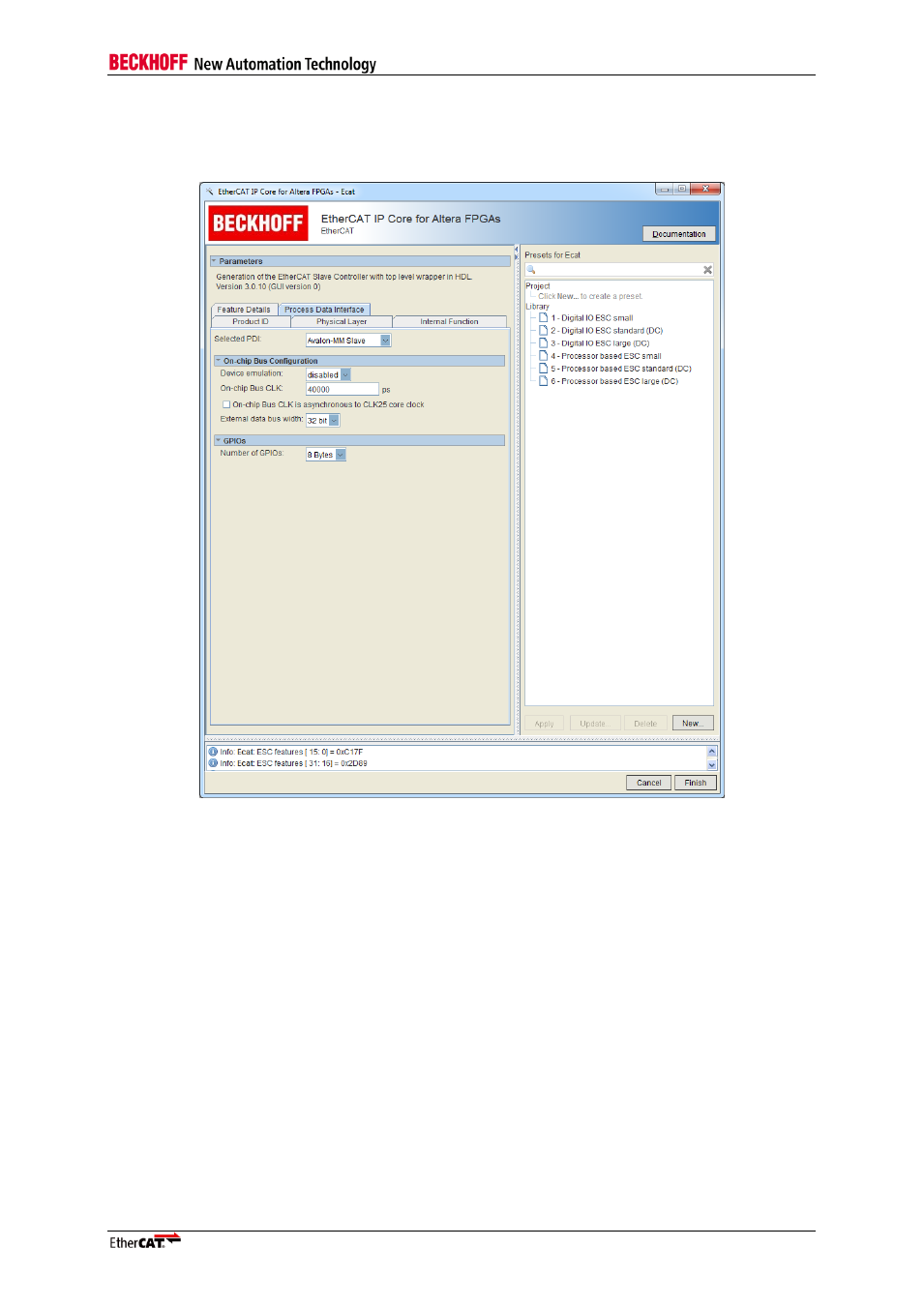

Figure 18: Register PDI – Avalon Interface Configuration
Device emulation
Enable Device emulation (0x0141[0]=1). This feature should be disabled in most use cases.
On-chip Bus CLK
This is the clock period of the Avalon bus clock for communication between ESC and the Avalon
master. This configuration option is not available if the clock period can be derived from the Qsys
clock connections.
On-Chip Bus CLK is asynchronous to CLK25 core clock
Enable if the On-chip BUS CLK is asynchronous to CLK25. Additional synchronization stages are
added in this case.
External data bus width
Select the Avalon data bus width (8/16/32/64 bit) of the Avalon slave interface.
