Remote Interface Configuration
MSO1000Z/DS1000Z provides three remote control interfaces: USB Device (TMC and
SICD static image capture devices share this port), LAN and GPIB (expanded from
the USB Host interface by the USB-GPIB interface converter). The priority order of
the three ports is USB Device, LAN and GPIB. You can press Utility  IO Setting
 RemoteIO to select the desired communication interface according to the
particular condition.
 When the USB Device interface is connected and press Utility  IO Setting 
USB Device  "Computer", the system will select the USB Device interface
automatically as the only valid interface no matter whether the LAN and GPIB
interfaces are connected or not. At this point, the RemoteIO menu is not
available as shown in figure (a).
 When only the GPIB or LAN interface is connected, the system will automatically
detect the corresponding interface and the display status of the corresponding
interface is "ON". At this point, you can press the corresponding softkey to turn
on or off the remote connection. The RemoteIO menu is as shown in figure (b)
and figure (c).
 When the GPIB and LAN interfaces are connected at the same time, the system
will set LAN (the display status is "ON") as the current control interface by
default. At this point, LAN and GPIB are available. You can select the
communication interface according to your needs. The RemoteIO menu is as
shown in figure (d).

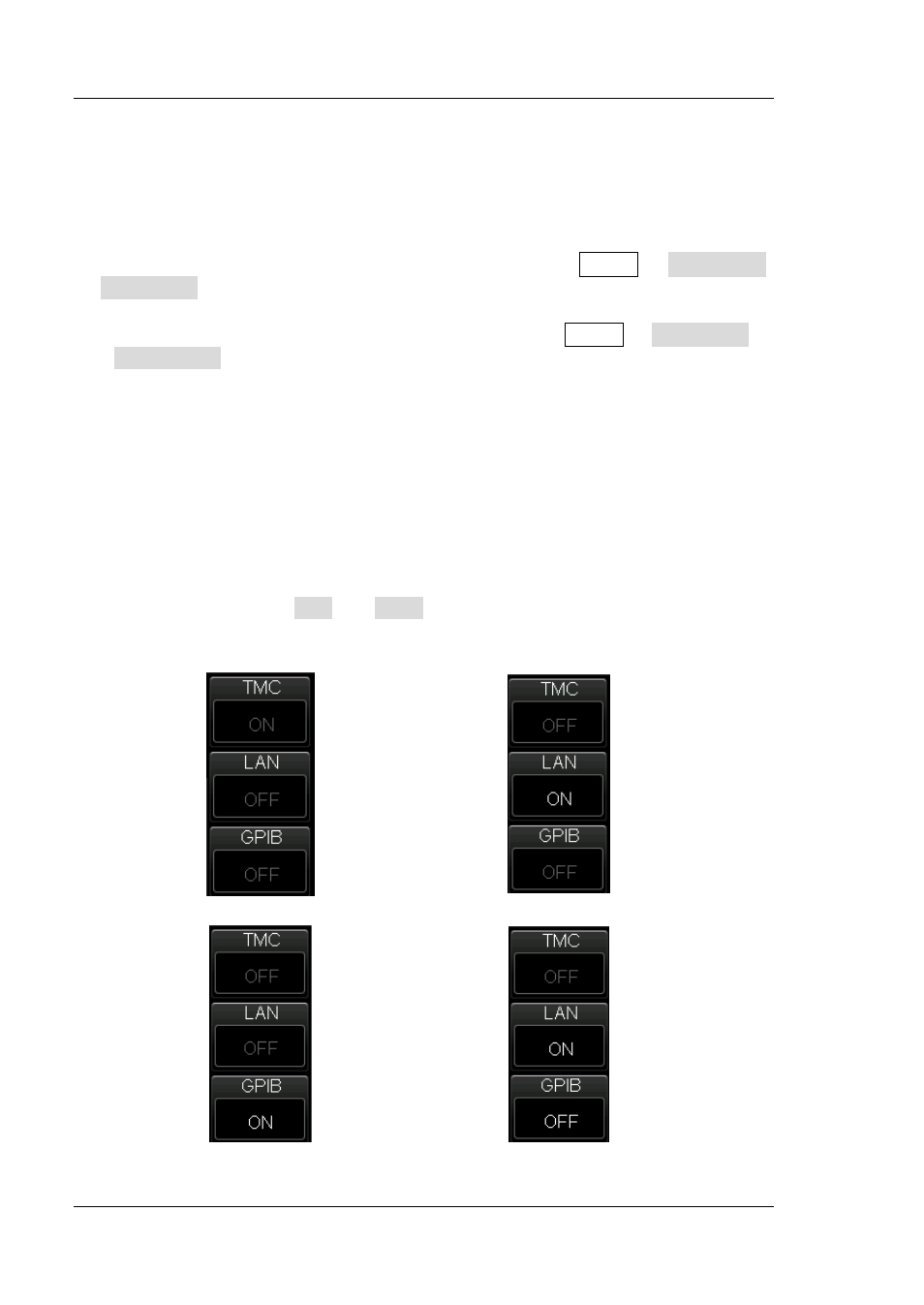

Figure (a) Figure (b)
Figure (c) Figure (d)
