*#1 SK PRO/SK PRO-73 Owner’s Manual
110

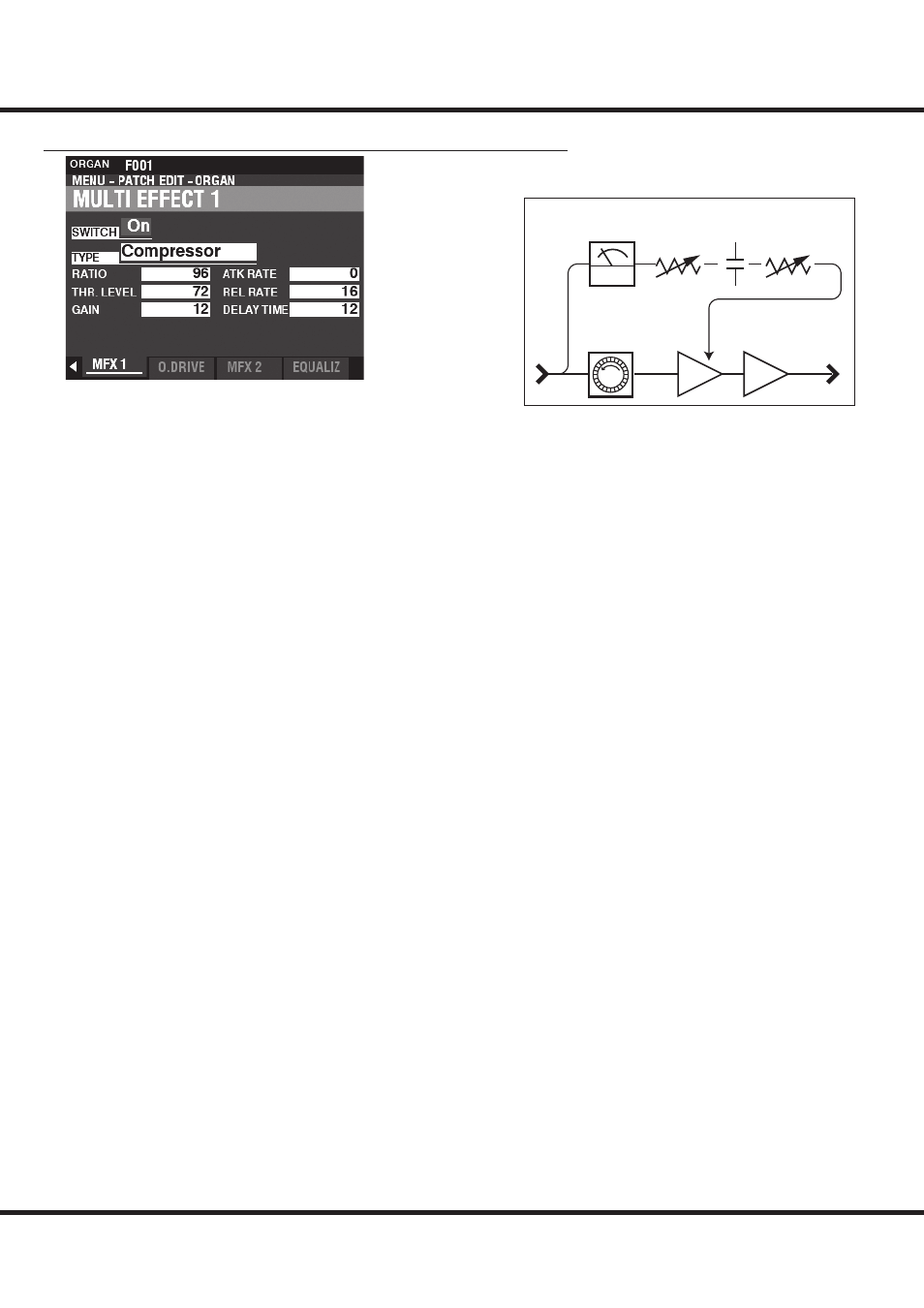

Compressor
RATIO RATE
Setting Range: 0 ~ 127 (1:1 ~ ∞:1)
This allows you to adjust the rate at which the volume changes between input and
output.
A higher value results in a lesser change of volume.
THRESHOLD LEVEL
Setting Range: 0 ~ 127 (-24 ~ ±0 [dB])
This allows you to adjust the value of the input level at which reduction begins.
A lower value results in compression beginning at a lower input level.
OUTPUT GAIN
Setting Range: 0 ~ 127 (0 ~ +24 [dB])
Th is allows you to increase the volume to a level to be reduced by the compression
process.
A higher value results in a higher volume.
ATTACK RATE
Setting Range: 0 ~ 127
Th is allows you to adjust the rate at which the volume is reduced when the input sound
exceeds the threshold level.
A higher value results in a slower reduction rate and the Attack of the sound is
emphasized.
RELEASE RATE
Setting Range: 0 ~ 127
Th is allows you to adjust the rate at which the volume is reduced when the input sound
is lower than the threshold level.
A higher value results in a slower release time and the Return gain is delayed.
DELAY TIME
Setting Range: 0 ~ 127
Th is allows you to adjust the amount of time before compression takes eff ect after a
key is depressed.
A higher value results in a longer delay.
NOTE: This Parameter also results in faster Attack and Release times.
Level
Detect
Look
Ahead
Threshold Ratio
Gain
Controlled
Amp
Make Up Gain
Attack,
Release
SECTION EFFECTS - continued
