19

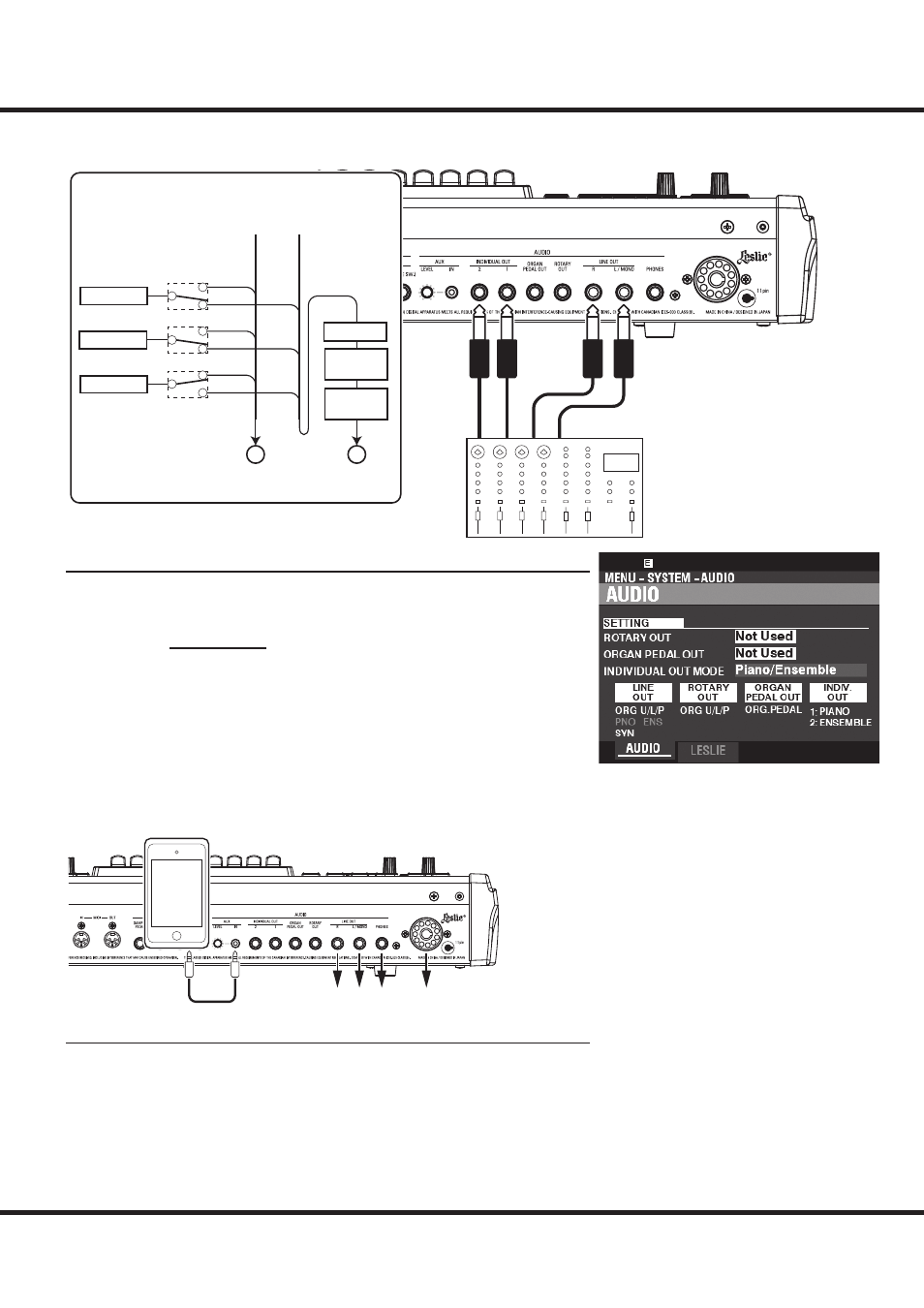

Making the Connections
USING AN EXTERNAL MIXER
MASTER
VOLUME
MASTER
EQ
REVERB
PIANO
ENS
SYNTH
INDIV.
LINE
INDIV. OUT LINE OUT
INDIVIDUAL OUT jacks
Use the [INDIVIDUAL OUT] jacks to connect an external mixer or add eff ects from
external eff ects devices. You can choose the Voice Section which will be present at each
of these jacks.
NOTE: Use the INDIVIDUAL OUT switch in the AUDIO FUNCTION Mode to select the Sections
to assign to the [INDIVIDUAL OUT] jacks. This is explained in more detail on page
131.
NOTE: If a Voice Section is assigned to an [INDIVIDUAL OUT] jack, it will be muted from the
[LINE OUT] jacks.
NOTE: The sound from the [INDIVIDUAL OUT] jacks is not aff ected by Reverb, the Master
Equalizer, or the [MASTER VOLUME] knob.
NOTE: The ORGAN Section cannot be assigned to the INDIVIDUAL OUT jacks.
USING A MUSIC PLAYER
AUX IN jack
Use the [AUX IN] jack to connect a music player or phone.
Use the [AUX LEVEL] knob on the Rear Panel to control the volume of a device
connected via the [AUX IN] jack.
Th
e audio signal via the [AUX IN] jack will combine with the output from the [LINE
OUT]jacks, [PHONES] jack and the Stationary Channel of the 11-pin Leslie socket.
NOTE: The [MASTER VOLUME] knob does not aff ect the audio signal coming into the [AUX
IN] jack.
