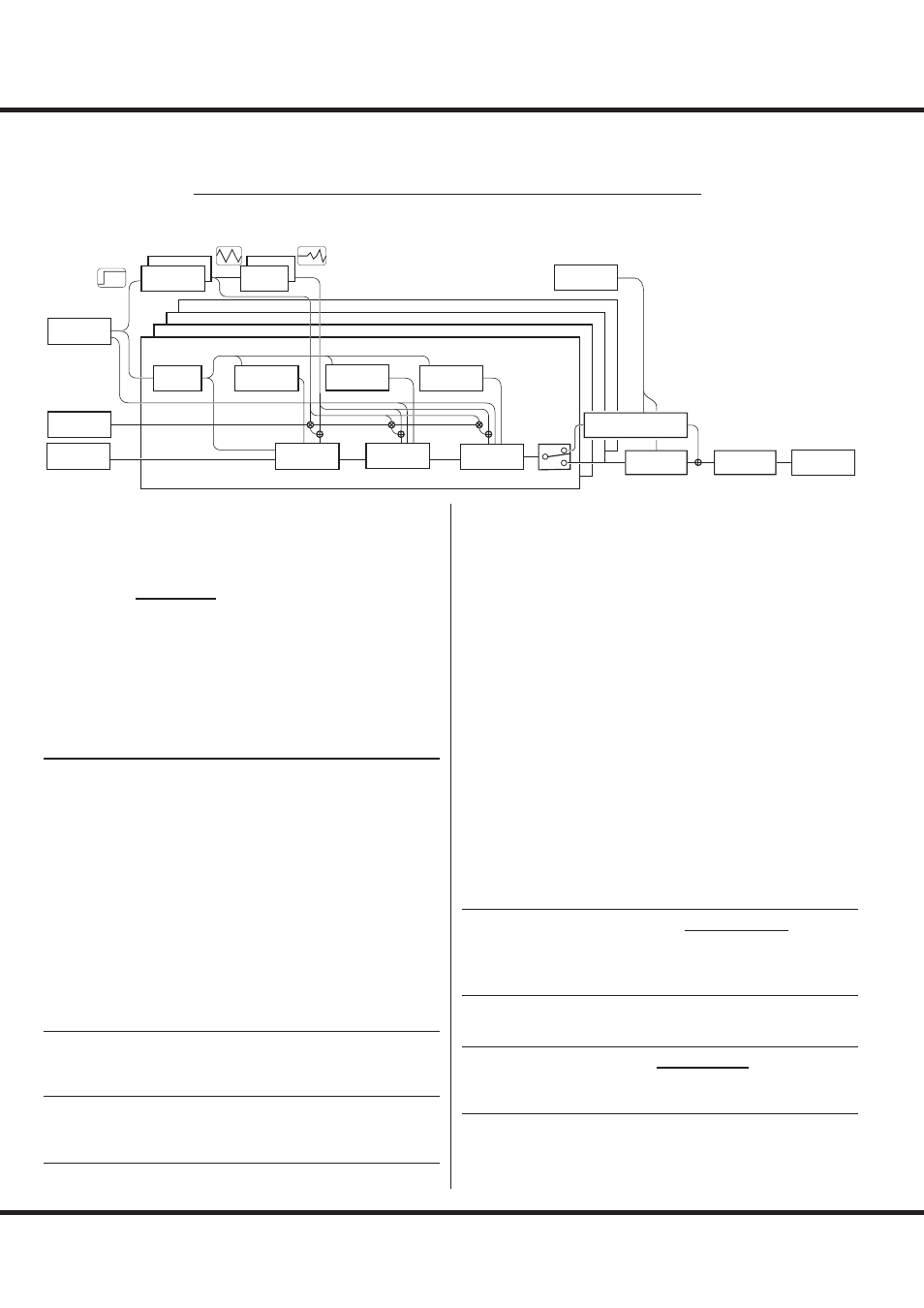

PIANO/ENSEMBLE
Th ese FUNCTION Modes allow you to adjust the Patch Parameters for the PIANO
and ENSEMBLE Sections.
To locate this mode:
[MENU/EXIT] - PATCH - PIANO/ENSEMBLE - [ENTER]
or press the [EDIT] button in each Section.
COMPONENT 4
COMPONENT 3
COMPONENT 2
COMPONENT 1
On/O
ff
Not
e#,V
elocit
y
Trig
Trig En
v
Audio Audio
Mod.
Mod.
Mod. Mod.
Mod.
Mod.
LFO EG2
Note
Pitch Bend
Modulation
LFO1
LFO2
Oscillator
Pitch EG Delay
Filter
Filter EG
Amplitude
Pan
Amp EG
LFO EG 1
Section Effect
(Mfx1 - Exp - OD - Mfx2)
Section
Equalizer
Exp Section
Volume
Expression
CC
CC
EDITING THE PIANO/ENSEMBLE
SECTIONS
Both the PIANO and ENSEMBLE Sections contain 4 sounding
units called
Components .
Th e waveform generated by the oscillator in each Component
can be modifi ed by the Filter (timber), Amplitude (volume),
Section Eff ects (Multi Eff ects and Overdrive) and the Equalizer.
Timed characteristics such as LFO and Envelope Generators for
Pitch, Filter and Amplitude are also provided.
PAGES AND CONTENTS
GENERAL
Th is allows you to adjust the common Parameters in a PIANO
or ENSEMBLE Patch.
VOLUME
Th is allows you to adjust the volume.
PORTAMENTO
Th is allows you to slide the pitch between last and current notes
smoothly.
MONO/POLY
Th is allows you to adjust the monophonic or polyphonic, and
sounding priority.
PITCH BEND
Th is allows you to adjust the length of the Pitch Bend.
ProChord ™
This allows you to play complex harmonic patterns which
regarding played chord by the four Components as the players.
LFO
Th is allows you to adjust the LFO - Low Frequency Oscillators
which makes vibrato or tremolo eff ect, and their depth.
COMPONENT
Th is allows you to adjust the Parameters with regarding each
Component.
BASIC
Th is allows you to adjust the basic Parameters such as sounding,
volume, “ON” or “OFF” the Section Eff ects, sounding note
range, and sounding velocity range.
OSCILLATOR
Th is allows you to adjust the Waveform and the pitch.
PITCH EG
Th is allows you to adjust the Pitch Envelope.
DELAY
This allows you to adjust the Delay for sounding “ON” or
“OFF” by playing or other Component.
FILTER
Th is allows you to adjust the Filter.
FILTER EG
Th is allows you to adjust the Filter Envelope.
AMPLITUDE
Th is allows you to adjust the Amplitude and the Panning.
AMPLITUDE EG
Th is allows you to set the Amplitude Envelope.
MULTI EFFECT 1
This allows you to adjust the Multi Effects 1 (Tremolo,
Wah-Wah, Ring Modulator, Compressor) for each PIANO/
ENSEMBLE Patch.
OVERDRIVE
Th is allows you to adjust the Overdrive eff ect in this Section.
MULTI EFFECT 2
Th is allows you to adjust the Multi Effects 2 (AutoPan, Phaser,
Flanger, Chorus, Delay) for each PIANO/ENSEMBLE Patch.
EQUALIZER
Th is allows you to adjust the Equalizer in this Section.
