HARMONIC DRAWBARS™ - continued
51/3'
16'
8'
4'
22/3'2'
13/5'11/3'1'

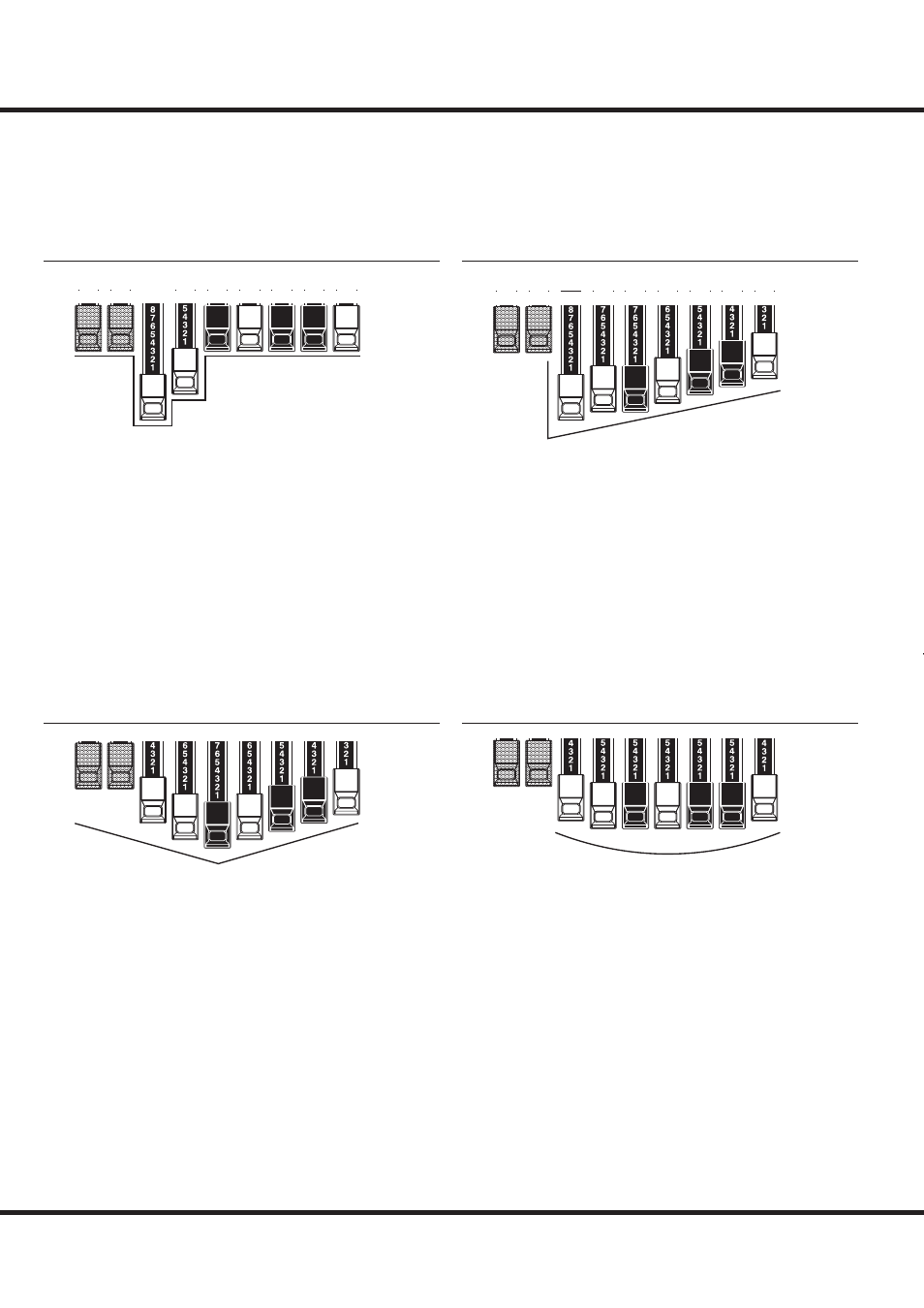

DRAWBAR REGISTRATION PATTERNS
Regardless of the size of a pipe organ or its number of stops, all of its voices are related to
four basic families of tone. Th
e four basic families - Flute, Reed, String and Diapason
- can be quickly set up on the Drawbars by relating a pattern or shape to each family.
Flute family (2 step pattern)
Diapason family (check mark pattern)
Reed family (triangle pattern)
String family (bow pattern)
51/3'
16'
8'
4'
22/3'2'
13/5'11 /3'1'
51/3'
16'
8'
4'
22/3'2'
13/5'11 /3'1'
Accompaniment Flute 8´ I ................00 8460 000
Accompaniment Flute 8´ II ...............00 3220 000
Accompaniment Flute 8´ III .............00 8600 000
Chorus of Flutes 16´ .........................80 8605 002
Orchestral Flute 8´ ............................00 3831 000
Piccolo 2´ ..........................................00 0006 003
Stopped Flute 8´ ................................00 5020 000
Tibia 8´ .............................................00 7030 000
Tibia 4´ .............................................00 0700 030
Tibia (Th
eater) 16´ ............................80 8605 004
Wooden Open Flute 8´ .....................00 8840 000
Accomp. Diapason 8´ .......................00 8874 210
Chorus Diapason 8´ ..........................00 8686 310
Diapason 8´ .......................................00 7785 321
Echo Diapason 8´ ..............................00 4434 210
Harmonic Diapason 16´ ...................85 8524 100
Harmonic Diapason 8´ .....................00 8877 760
Harmonic Diapason 4´ .....................00 0606 045
Horn Diapason 8´ .............................00 8887 480
Open Diapason 8´ .............................01 8866 430
Solo Diapason ...................................01 8855 331
Wood Diapason 8´ ............................00 7754 321
Bassoon 16´ .......................................44 7000 000
Clarinet 8´ .........................................00 6070 540
English Horn 8´ ................................00 3682 210
Flugel Horn 8´ ..................................00 5777 530
French Horn ......................................00 7654 321
Kinura 8´ ...........................................00 0172 786
Oboe 8´ .............................................00 4764 210
Trombone 8´ .....................................01 8777 530
Trumpet 8´ ........................................00 6788 650
Tuba Sonora 8´ ..................................02 7788 640
Vox Humana 8´ .................................00 4720 123
Cello 8´ .............................................00 3564 534
Dulciana 8´ .......................................00 7770 000
Gamba 8´ I ........................................00 3484 443
Gemshorn 8´ .....................................00 4741 321
Orchestral String 8´ ...........................00 1464 321
Salicional 8´ .......................................00 2453 321
Solo Viola 8´ .....................................00 2474 341
Solo Violin 8´ ....................................00 3654 324
Viola da Gamba 8´ ............................00 2465 432
Violina 4´ ..........................................00 0103 064
Violone 16´ .......................................26 3431 000
51/3'
16'
8'
4'
22/3'2'
13/5'11/3'1'
ON
ON
ON
ON
51/3'
16'
8'
4'
22/3'2'13/5'11/3'1'
51/3'
16'
8'
4'
22/3'2'13/5'11/3'1'
51/3'
16'
8'
4'
22/3'2'13/5'11/3'1'
51/3'
16'
8'
4'
22/3'2'
13/5'11 /3'1'
Notice that Drawbar registrations are expressed in number groups of 2, 4 and 3. Th
is “2-4-3” number formula for
Drawbar Registration has been a Hammond convention since the beginning. It has been found to be the easiest way to
convey a specifi c setting. Th
e fi rst two numbers correspond to the two brown Drawbars of either manual. Th
e middle
four numbers designate the 8´, 4´, 2⅔
´, 2´ Drawbars, and the remaining three numbers refer to the last three Drawbars.
