Hammond SK Pro-73 73-Key Portable Keyboard/Organ - Manual (Page 113)

113

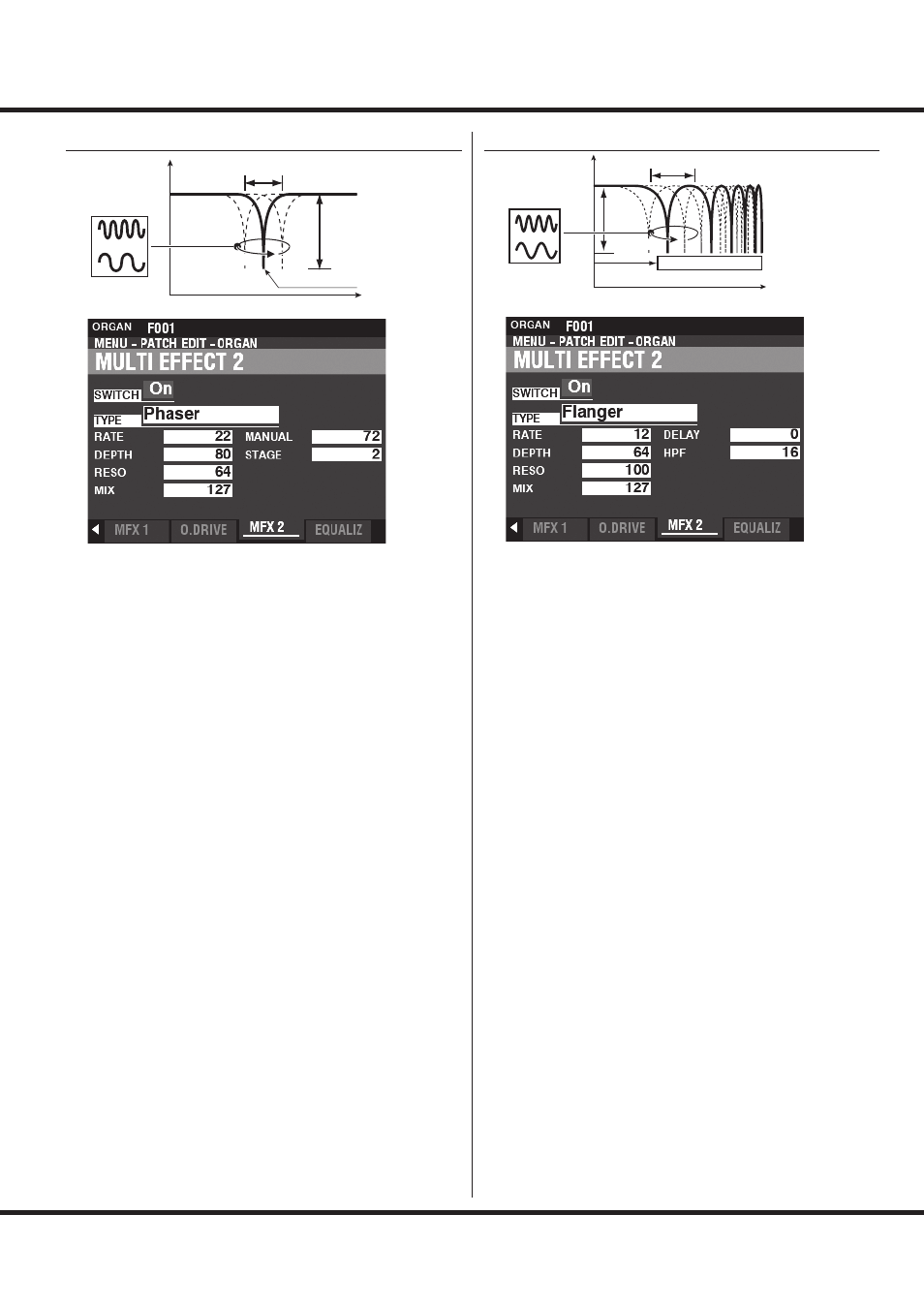

Editing Parameters
Phaser
Frequency
Level
Mix
Depth
Manual
Rate
Modulation
RATE
Setting Range: 0 ~ 127
Th is allows you to adjust the frequency rate.
A higher value results in a faster rate.
DEPTH
Setting Range: 0 ~ 127
Th is allows you to adjust the depth of the modulation.
A higher value results in a deeper modulation.
RESONANCE
Setting Range: 0 ~ 127
Th is allows you to adjust the resonance (feed-back) amount.
A higher value results in a greater resonance.
NOTE: At higher values, the sound may be modulated to the point
the base frequency is no longer audible.
MIX
Setting Range: 0 ~ 127
Th is allows you to adjust the volume balance between the “dry”
and the eff ect sounds.
At “0” only the “dry” sound is heard. Th
e eff ect level becomes
greater as the value increases. At “64” the ratio between the “dry”
and the eff ect sounds becomes 1:1. At “127,” only the eff ect
sound is heard.
MANUAL
Setting Range: 0 ~ 127
Th is allows you to set the middle frequency of the phase eff ect.
A higher value results in a higher frequency.
STAGE
Setting Range: 2, 4, 6, 8, 10
Th is allows you to adjust the complexity or “stage” of the phasing.
A higher value creates more complex eff ects.
Flanger
Frequency
Level
Mix
Rate
HPF
effect range
Modulation
Depth
RATE
Setting Range: 0 ~ 127
Th is allows you to adjust the modulation rate.
A higher value results in a faster rate.
DEPTH
Setting Range: 0 ~ 127
Th is allows you to adjust the depth of the modulation.
A higher value results in a deeper modulation.
RESONANCE
Setting Range: 0 ~ 127
Th is allows you to adjust the resonance (feed-back) amount.
A higher value results in a greater resonance.
MIX
Setting Range: 0 ~ 127
Th is allows you to adjust the volume balance between the “dry”
and the eff ect sounds.
At “0” only the “dry” sound is heard. Th
e eff ect level becomes
greater as the value increases. At “64” the ratio between the “dry”
and the eff ect sounds becomes 1:1. At “127,” only the eff ect
sound is heard.
DELAY
Setting Range: 0 ~ 127
Th is allows you to control the delay of the eff ect sound.
A higher value results in a longer delay.
HPF (High Pass Filter)
Setting Range: 0 ~ 127
Th is allows you to control the frequency range of the eff ect.
At “0” the eff ect is added to all frequencies. Th e eff ect is added to
the higher frequencies as the value increases.
